The IP65 outdoor rated SIXPAR 300WMG includes the same features as the standard SIXPAR 300IP model but with a special added White Marine Grade exterior coating designed for marine/coastal environment installations.
Featuring (18) 12W 6-in-1 RGBAW+UV LEDs producing a 23° beam angle, internal color and color chase macros, electronic strobe and variable dimming curve modes, manual and DMX-512 control, RDM (remote device management) support, dual yoke / floor stand, multiple unit power linking, rugged die-cast aluminum white marine grade coated exterior, flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (110-250v).
Features
- IP65 Outdoor Rated Par Luminaire
- Special White Marine Grade Exterior Coating
- Rugged Die-Cast Aluminum Exterior with Dual Yoke / Floor Stand
- (18) 12W 6-in-1 RGBAW+UV LEDs
- 23° Beam Angle
- 395nm UV Wavelength
- Electronic Strobe and Variable Dimming Curve Modes
- Manual and DMX-512 Control
- RDM (Remote Device Management) Support
- Multiple Unit Power Linking
- Proprietary IP Rated Power and Data In/Out Cables Attached
- Optional Extended Length Proprietary IP Rated Power and Data Linking Cables and In/Out Adapters Available
Specifications
SOURCE
PHOTOMETRIC DATA
EFFECTS
CONTROL / CONNECTIONS
SIZE / WEIGHT
ELECTRICAL / THERMAL
APPROVALS / RATINGS
INCLUDED ITEMS
- (18) 12W 6-in-1 RGBAW+UV LEDs
- 100,000 Hour Average LED Life*
- *May vary depending on several factors including but not limited to:
- Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
- 24,500 LUX 2,276 FC @3.3' (1m) (15° Full On)
EFFECTS
- Electronic Strobe
- Variable Dimming Curves Modes
- Internal Color and Color Chase Macros
CONTROL / CONNECTIONS
- Manual and DMX-512 Control
- (4) DMX Channel Modes (6 / 7 / 8 / 12)
- (4) Button Touch LCD Menu Display
- Proprietary IP Rated 3pin DMX In/Out Cables Attached
- Proprietary IP Rated 3pin Power In/Out Cable Attached
- With Wired Digital Communication Network
SIZE / WEIGHT
- Length: 14.4” (365mm)
- Width: 4.9” (125mm)
- Vertical Height: 14.4” (365mm)
- Weight: 21.0 lbs. (9.5 kg)
ELECTRICAL / THERMAL
- AC 110-250V - 50/60Hz
- 220W Max Power Consumption
- Multiple Unit Power Linking
- 5°F to 113°F (-15°C to 45°C)
- UV Wavelength: 395nm
APPROVALS / RATINGS
- CE | cETLus | IP65
INCLUDED ITEMS
- Male Edison to IP Female Power White Cable 6.6 ft. (2m)
- Male 3pin XLR to IP Female DMX Input White Cable 3.3 ft (1m)
- Female 3pin XLR to IP Male DMX Output White Cable 3.3 ft (1m)
OPTIONAL ACCESSORIES:
- SIXPAR/2MDLC/WH - 3.3 ft. (1m) White IP Data Link Cable
- SIXPAR/2MPLC/WH - 3.3 ft. (1m) White IP Power Link Cable
- SIXPAR/2MDLC/WH - 6.6 ft. (2m) White IP Data Link Cable
- SIXPAR/2MDLC/WH - 6.6 ft. (2m) White IP Power Link Cable
- SIXPAR/5MDLC/WH - 16.4 ft. (5m) White IP Data Link Cable
- SIXPAR/5MPLC/WH - 16.4 ft. (5m) White IP Power Link Cable
- SIXPAR/10MDLC/WH - 32.8 ft. (10m) White IP Data Link Cable
- SIXPAR/10MPLC/WH - 32.8 ft. (10m) White IP Power Link Cable
- SIXPAR/20MDLC/WH - 65.6 ft. (20m) White IP Data Link Cable
- SIXPAR/20MPLC/WH - 65.6 ft. (20m) White IP Power Link Cable
- SIXPAR/DIAC/WH - White Data IN IP Adapter Cable
- SIXPAR/DOAC/WH - White Data OUT IP Adapter Cable
- SIXPAR/PIAC/WH - White Power IN IP Adapter Cable
- SIXPAR/POAC/WH - White Power OUT IP Adapter Cable
- SIXPAR/TERMINATOR/WH - White DMX Terminator End Cap

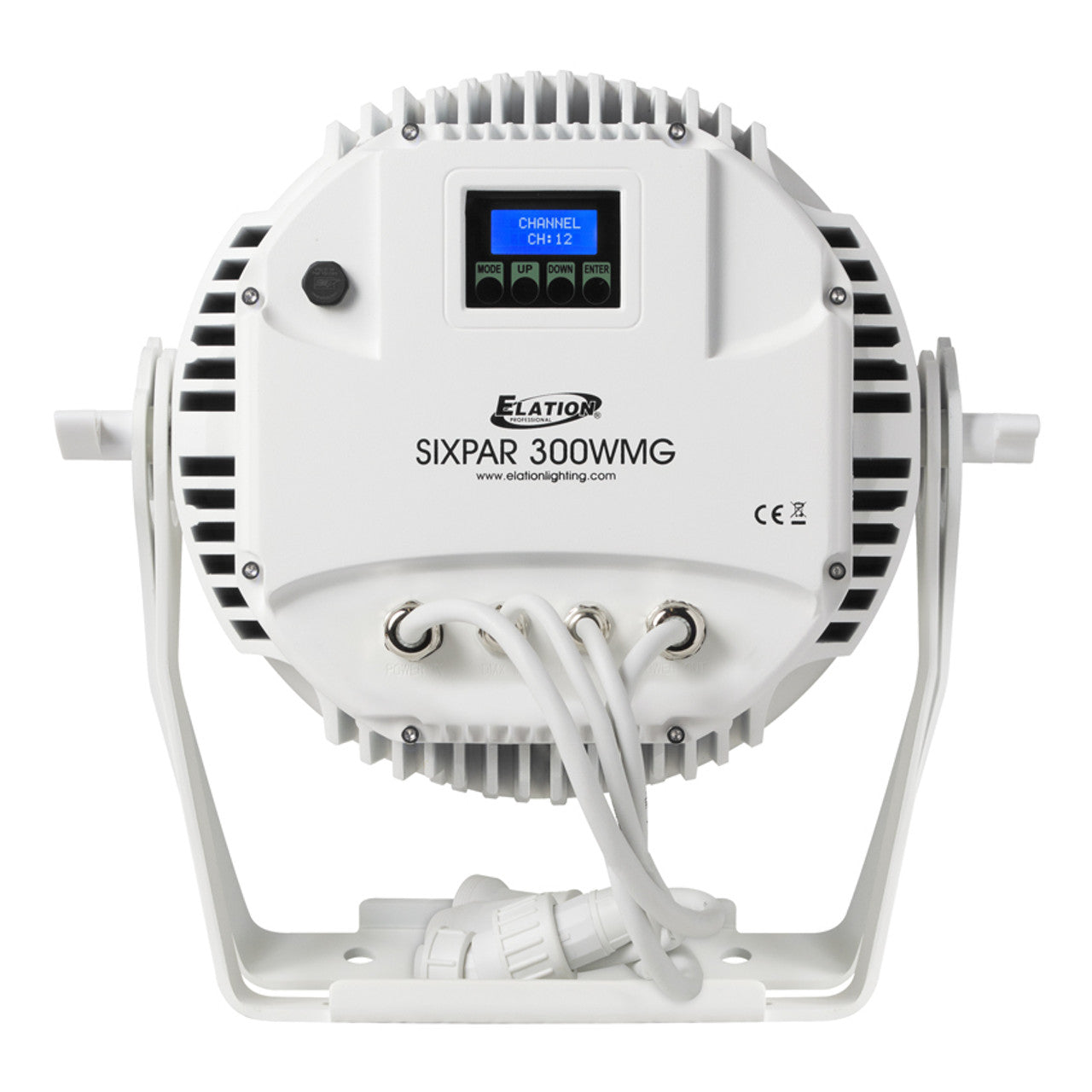

![SixPar 300WMG; White Marine Grade IP65](http://allavstore.myshopify.com/cdn/shop/files/sixpar-300-wmg-lt_3__16140-2.jpg?v=1697244196&width=1445)
