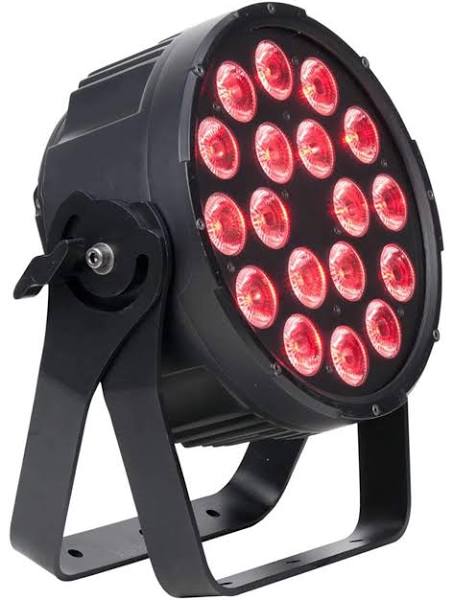

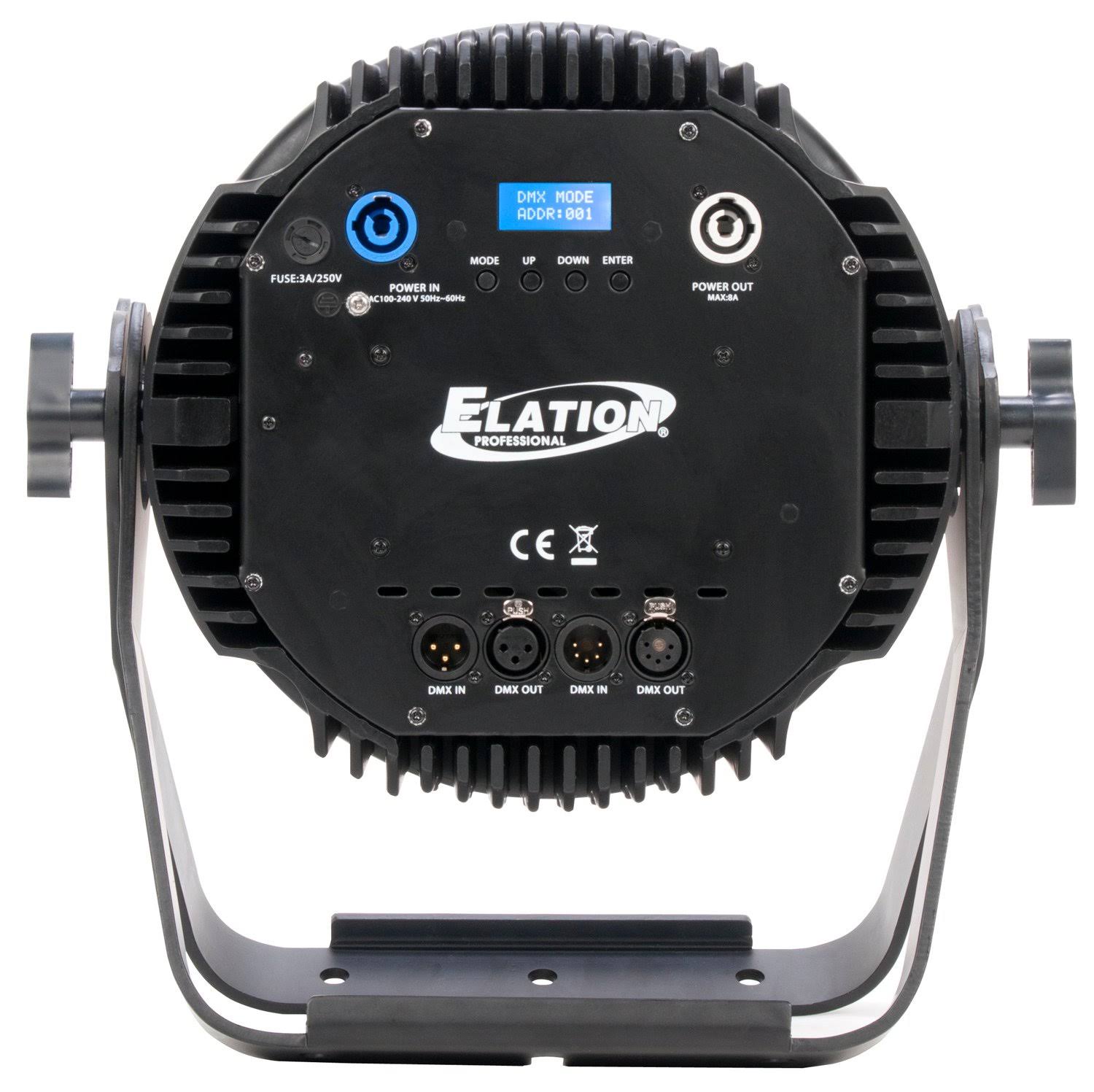

The black Elation Professional SIX062 Sixpar 300 is an RGBAW+UV light fixture for indoor use featuring 18 individual 12W six-in-one LEDs. It offers electronic strobe, five variable dimming curve modes, and daisy-chaining capabilities. The Sixpar 300 incorporates a four-button touch-control panel and an LCD menu display. It supports three & five-pin DMX connectivity and RDM (Remote Device Management) control. Flicker-free operation makes the unit suitable for broadcast TV and film. Four DMX channel modes (6, 7, 8, & 12 channels) enable you to control varying levels of features. The fixture features a powerCon input and an internal auto-switching power supply. It is compatible with 110 - 250 VAC outlets and has a maximum power consumption of 220W. The Sixpar 300 can be mounted on a floor stand or hung from a rig using the integrated dual yoke bracket (clamps sold separately).
| Detalles | |
|
Fixture Type
|
PAR |
|
Light Source
|
18 x Color LED - 12 W |
|
Expected Lamp Life
|
100,000 Hours |
|
UV Wavelength
|
395 nm |
|
Photometrics
|
15°- 125 fc / 1350 Lux at 16.5' / 5 m |
|
Beam Angle
|
15° |
|
Field Angle
|
25° |
|
Shutter / Strobe
|
Electronic |
|
Iris
|
No |
|
Focus
|
Manual |
|
Dimming
|
Electronic, 0 to 100% with 5 Dimmer Modes |
|
Operating Modes
|
DMX |
|
Macros / Programs
|
Color Macro Chase Macro |
|
Effects
|
Strobe |
|
Control Protocols
|
DMX512, RDM |
|
DMX Channel Modes
|
4 Mode(s)-6 / 7 / 8 / 12-Channel |
|
Display / Controls
|
LCD / 4-Button |
|
AC Input Power
|
110 to 250 VAC, 50/60 Hz |
|
AC Power Connector
|
Input- 1 x powerCON Output- 1 x powerCON |
|
Power / Current Consumption
|
220 W |
|
Power Linking
|
5 Units at 110 VAC 10 Units at 240 VAC |
|
Operating Temperature
|
5 to 113°F / -15 to 45°C |
|
Mounting
|
Dual/Scissor Yoke |
|
Exterior Color
|
Black |
|
Certifications
|
CE, cETL |
|
Dimensions
|
14.4 x 4.9 x 14.4" / 365 x 125 x 365 mm |
|
Box Dimensions (LxWxH)
|
17 x 16.25 x 9.25" |
