Elation Lighting

SIXPAR 300; 6-IN1 LED PAR 18X12W

SIXPAR 300; 6-IN1 LED PAR 18X12W

Regular price $660.00 USD
Regular price $870.00 USD Sale price $660.00 USD
Sale Sold out

Lighting designers in need of a powerful wash light should check out the black Elation Professional SIXPAR 300, a RGBAW+UV Par light fixture for indoor use, well suited for event production, rental houses, clubs, bars, cruise ships, touring companies, and special events. The fixture features 18 individual 12W 6-in-one LEDs, and offers electronic strobe, five variable dimming curve modes, and daisy-chaining capabilities.

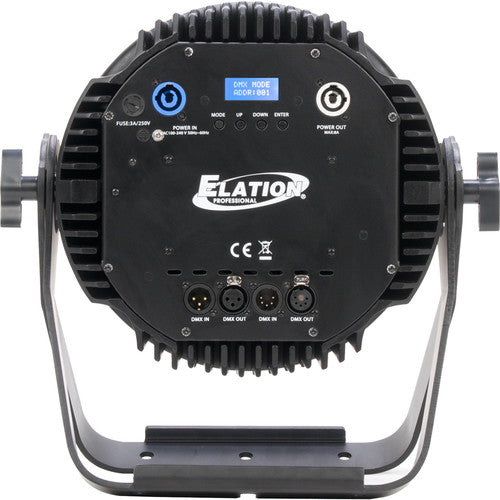

The SIXPAR 300 incorporates a four-button touch-control panel and an LCD menu display and supports three- and five-pin DMX connectivity and RDM (Remote Device Management) control. Flicker-free operation makes the unit suitable for broadcast TV and film. Four DMX channel modes (6, 7, 8, and 12 channels) enable you to control varying levels of features. The fixture features a powerCon input and an internal auto-switching power supply. It is compatible with 110 to 250 VAC outlets and has a maximum power consumption of 220W. The SIXPAR 300 can be mounted on a floor stand or hung from a rig using the integrated dual yoke bracket (clamps sold separately).

Electronic strobe
Five variable dimming curve modes
RDM (Remote Device Management)
Flicker-free operation for TV and film
Four-button touch-control panel
LCD menu display
Multiple-unit power linkg
Light
Fixture Type
PAR
Light Source
18 x Color LED - 12 W
Expected Lamp Life
100,000 Hours
Colors
Red, Green, Blue, White, Amber, Ultraviolet
UV Wavelength
395 nm
Photometrics
15°:
125 fc / 1350 Lux at 16.5' / 5 m
Beam Angle
15°
Field Angle
25°
Shutter / Strobe
Electronic
Iris
No
Focus
Manual
Zoom Adjustment
None
Dimming
Electronic, 0 to 100% with 5 Dimmer Modes
Performance
Operating Modes
DMX
Macros / Programs
Color Macro
Chase Macro
Effects
Strobe
Gobos
None
Control
Control Protocols
DMX512, RDM
DMX Channel Modes
4 Mode(s):
6 / 7 / 8 / 12-Channel
Display / Controls
LCD / 4-Button
Connectivity
Inputs/Outputs
1 x XLR 3-Pin DMX Input
1 x XLR 3-Pin DMX Output
1 x XLR 5-Pin DMX Input
1 x XLR 5-Pin DMX Output
Power
AC Input Power
110 to 250 VAC, 50/60 Hz
AC Power Connector
Input: 1 x powerCON
Output: 1 x powerCON
Fuse
None
Power / Current Consumption
220 W
Power Linking
5 Units at 110 VAC
10 Units at 240 VAC
Environmental
Environmental Protection
Advertised as Dust Resistant
*Manufacturer Testing: IP20
Operating Temperature
5 to 113°F / -15 to 45°C
Physical
Mounting
Dual/Scissor Yoke
Duty Cycle
None
Exterior Color
Black
Certifications
CE, cETL
Dimensions
14.4 x 4.9 x 14.4" / 365 x 125 x 365 mm
Weight
18 lb / 8.1 kg
Packaging Info
Package Weight
22.1 lb
Box Dimensions (LxWxH)
17 x 16.25 x 9.25"
