Elation Lighting

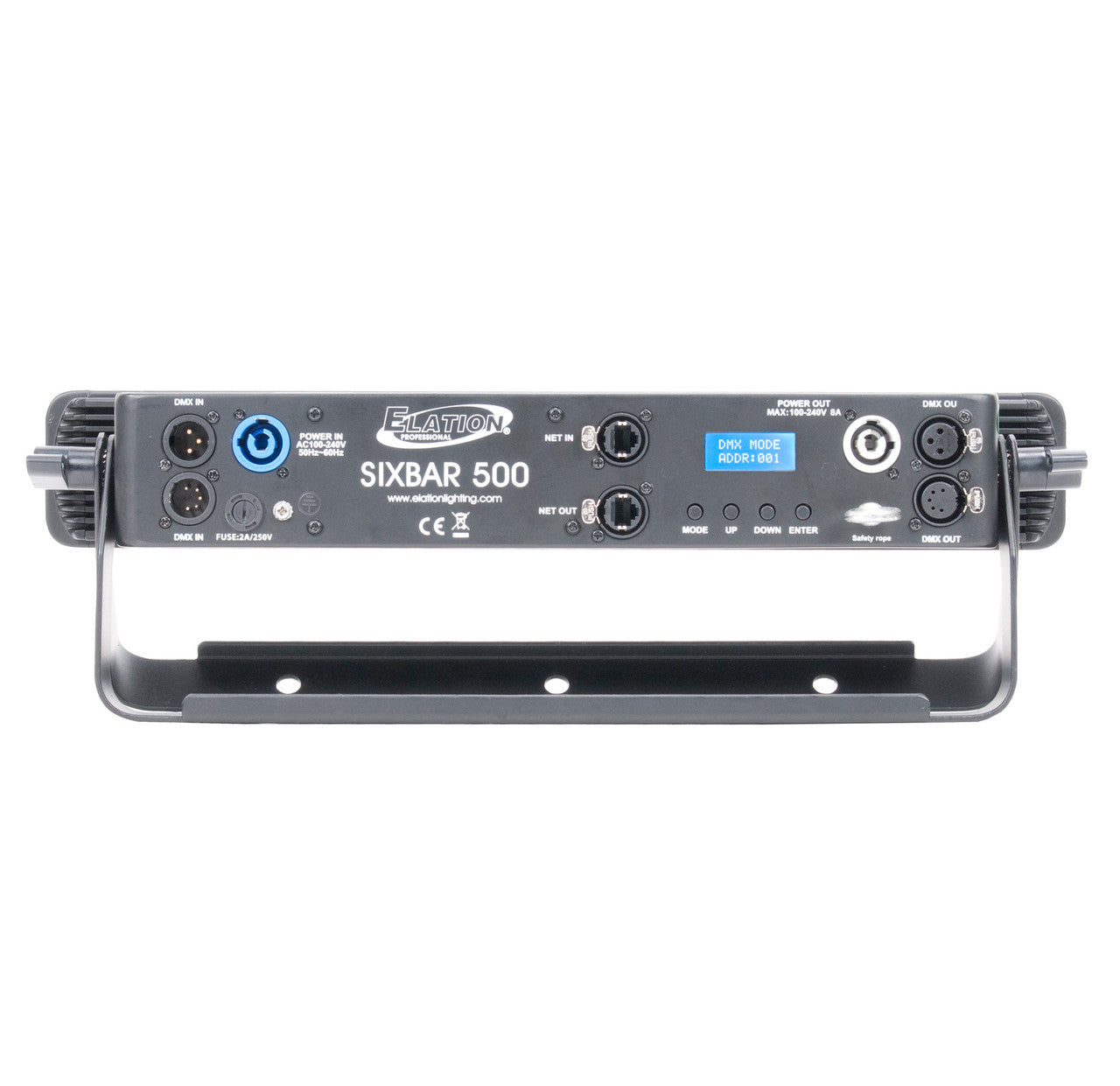

SIXBAR 500; 6 x 12 Watt 6 Color LED Bar

SIXBAR 500; 6 x 12 Watt 6 Color LED Bar

Regular price $532.00 USD
Regular price $700.00 USD Sale price $532.00 USD
Sale Sold out

The SIXBAR 500™ features (6) 12W 6-IN-1 RGBAW+UV LEDs, 100,000 average hour LED life, 30° beam angle, individual control of each LED, variable dimming curve modes, strobe and chase effects, a UV wavelength of 395nm, ArtNet, KlingNet and RDM (remote device management) protocol support, 3pin and 5pin DMX, Locking Power Cable and RJ45 in/out connections, LCD menu display with 4 button control panel, integrated dual rigging brackets, multiple unit power linking, rugged die-cast aluminum exterior, frost filter and glare shield included, flicker free operation for TV and FILM, 93W max power consumption, and a multi-voltage universal auto switching power supply (110-240v).

Elation SIXBAR 500 Features

  • 30° beam angle
  • ArtNet and KlingNet support
  • RDM - Remote Device Management
  • Individual LED control
  • Variable dimming curve modes
  • Multiple unit power linking
  • Rugged die-cast aluminum exterior
  • Flicker free operation for TV and film
    • Source(6) 12W 6-in-1 RGBAW+UV LEDs
    • Average LED Life100,000 hours
    • Photometric Data
      • 6,500 LUX 604 FC @3.3’ (1m) (30° Full ON)
      • 1,934 LUX 180 FC @6.6’ (2m) (30° Full ON)
      • 901 LUX 84 FC @9.8’ (3m) (30° Full ON)
      • 508 LUX 47 FC @13.1’ (4m) (30° Full ON)
      • 318 LUX 30 FC @16.4’ (5m) (30° Full ON)
    • Effects
      • Strobe and chase effects
      • Individual LED control
      • Variable and selectable dimming curves
    • Control / Connections
      • 8 DMX Channel Modes (6 / 7 / 11 / 13 / 18 / 36 / 39 / 43)
      • 4 Button Control Panel and LCD Menu Display
      • ArtNet + KlingNET Protocol Support
      • RDM (Remote Device Management)
      • (2) ethernet Ports
      • 3pin and 5pin DMX In/Out
      • Locking Power Cable In/Out
      • With Wired Digital Communication Network
    • Electrical / Thermal
      • AC 110-240V - 50/60Hz
      • 93W Max Power Consumption
      • Power Linking: 11pcs @110V / 25pcs @240V
      • 5°F to 113°F (-15°C to 45°C)
      • UV Wavelength: 395nm
    • Weight9 pounds
    • Dimensions (LxWxH)17.7" x 8.1" x 6.1"
