Elation Lighting

SIX PAR Z19 IP; 19 x 15W IP Six Color Par w/Zoom R,G,B,W,A,UV

SIX PAR Z19 IP; 19 x 15W IP Six Color Par w/Zoom R,G,B,W,A,UV

Regular price $1,264.61 USD
Regular price $1,950.00 USD Sale price $1,264.61 USD
Sale Sold out

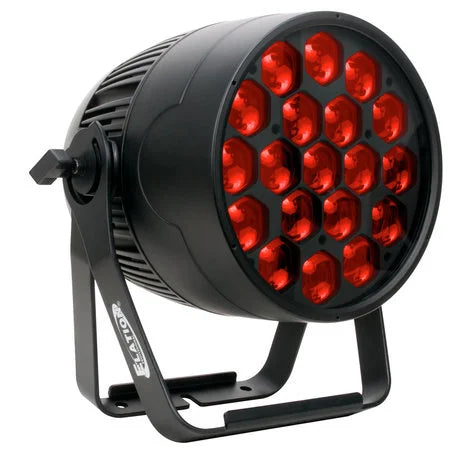

The SIX PAR Z19 IP™ from Elation is an IP65 rated 6 color par wash luminaire with zoom, featuring (19) individual 15W 6-IN-1 RGBAW+UV LEDs, 5° to 45° motorized zoom, and UV LED Wavelength of 395nm. This Par Wash fixture also produces an electronic strobe and variable dimming curve effects, and comes with an IP rated 5pin DMX and powerCON TRUE1 in/out connections. Additional control functions are accessed via the LCD menu display with (4) touch button control panel. Install options for this model include using an adjustable yoke / floor stand.

Elation's Six Par Z19 IP also offers multiple unit power linking and RDM (remote device management), all housed within a rugged die-cast aluminum exterior. And yes, this par is flicker free - making it operational for TV and FILM. A multi-voltage universal auto switching power supply (110-250v) is included with this unit.

Features

  • IP65 Rated 6-Color Par Wash Luminaire
  • 5° to 45° Motorized Zoom
  • 395nm UV LED Wavelength
  • Rugged Die-Cast Aluminum Exterior
  • Multiple Unit Power Linking
  • IP Rated DMX and powerCON TRUE1 Connections
  • Flicker Free Operation for TV and FILM

Specifications

  • SKU: SIX119
  • Source:
    • (19) 15W 6-in-1 RGBAW+UV LEDs
    • 100,000 Hour Average LED Life (LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.)
  • Photometric Data:
    • 13,240 LUX 1,230 FC @ 9.8’ (3 m) (5° Full ON)
    • 831 LUX 77 FC @ 9.8’ (3 m) (45° Full ON)
  • Color:
    • RGBAW+UV
  • Effects:
    • 5° - 45° Motorized Zoom
    • RGBWA + UV Color Mixing
    • Color and Chase Program Macros
    • Electronic Strobe and Variable Dim Curves
  • Control / Connections:
    • 4 DMX Channel Modes (14 Total Channels)
    • RDM (Remote Device Management)
    • 4 Button Touch Control Panel
    • 180° Reversible LCD Menu Display
    • 8 / 16 Bit Resolution Adjustable Movement

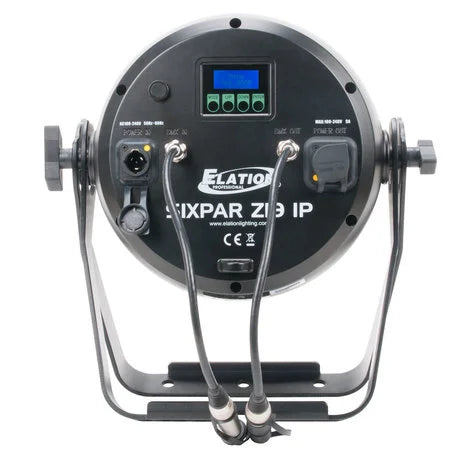

    • IP Rated 5pin DMX and powerCON TRUE1 Power In/Out
  • Size / Weight:
    • Length: 15.9" (363 mm)
    • Width: 12.0" (305 mm)
    • Vertical Height: 15.6" (396 mm)
    • Weight: 27 lbs. (12.2 kg)
  • Electrical / Thermal:
    • AC 110-250 V - 50/60 Hz
    • 282 W Max Power Consumption
    • 5° F to 113° F (-15° C to 45° C)
    • UV Wavelength: 395nm
  • Approvals / Ratings:
    • CE | RoHs | IP65
