Elation's SEVEN PAR 7IP™ is a par wash luminaire with (7) individual 25W 7-in-1 RGBAW and Lime with UV LEDs. This fixture is both manual and DMX controllable, and features smooth color mixing, a variable dimming curve, strobe, and color macro effects, along with an adjustable LED refresh rate and gamma brightness for flicker free operation for TV and FILM.

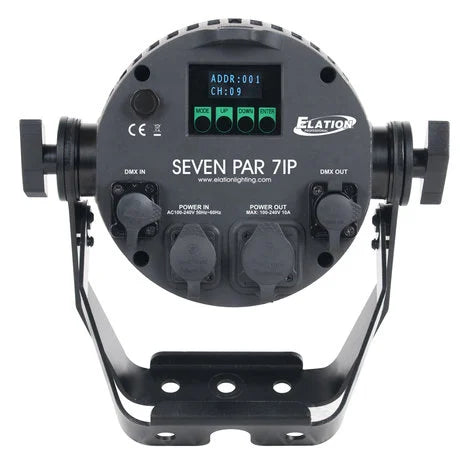

The SEVEN PAR 7IP is equipped with IP rated 5-pin DMX and powercon true1 in/out connections, offers RDM (Remote Device Management) support, and has an on-board OLED menu display with (4) touch button control panel. Also included is a multi-voltage universal auto switching power supply (100-240V) and dual mounting yokes.
Elation Seven Par 7IP Features:
- IP65 outdoor rated
- Rugged die-cast aluminum exterior
- Seven colors RGBWA + Lime + UV (395nm)
- RGB + dynamic amber channel modes
- Smooth color mixing
- 12 internal programs with speed and fade control
- 64 color macros
- Selectable dimming curve modes
- Adjustable LED refresh rate + gamma brightness
- Flicker free operation for TV and FILM
- Dual yoke / floor stand
- Multiple unit power linking
- Optional gel frames and barn doors are available
Elation Seven Par 7IP Specifications:
- Source:
- (7) 25 W 7-in-1 RGBAW + Lime + UV LEDs
- 50,000 hour average LED life (May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming)
- Effects:
- Dynamic amber (automatically added to RGB LEDs in Dynamic (+) DMX modes)
- 12 program macros with variable speed and fade control
- 64 color macros
- Electronic strobe and variable effects
- Selectable dimming curve effects
- Adjustable LED refresh rate and gamma brightness
- Color:
- RGBAW + Lime + UV (395nm)
- Control / Connections:
- (8) DMX channel modes (15 total channels)
- DMX and manual control
- 4 button OLED menu control display
- Adjustable refresh rate (900-28,800Hz)
- Adjustable gamma brightness (2.0, 2.2, 2.4, 2.8)
- RDM (Remote Device Management) protocol support
- IP rated 5-pin DMX In/Out
- powercon true1 Power In/Out
- Physical:
- Dimensions (LxWxH): 11.24" x 10.71" x 7.36" (286 x 272 x 187 mm)
- Weight: 11 lbs (5 kg)
- Electrical / Thermal:
- AC 100-240 V - 50/60 Hz
- 185 W max power consumption
- 5° F to 113° F (-15° C to 45° C)
- Approvals / Ratings:
- CE
- IP65
