With the Obsidian NETRON RDM 10 Hybrid DMX Splitter, Merger, Ethernet, and DMX gateways are unified into the RDM 10 with an advanced feature set to cover a wide variety of applications, while 99 internal cues, factory and user presets, plus external contact closures provide a unique combination of multiple devices to solve many required tasks in one powerful unit.
Benefits
- Ten assignable DMX outputs
- Integrated 2-Universe ArtNet/sACN node
- Configurable DMX refresh rate
- Dual DMX inputs for backup and signal loss options
- Remote configuration via internal web page
- 1.8" OLED display with rotary knob
- 99 Internal cues with fade and delay time
- Contact closures for cue or preset recall
- Powder-coated aluminum rackmount housing
Mounting
Rackmount
Connections

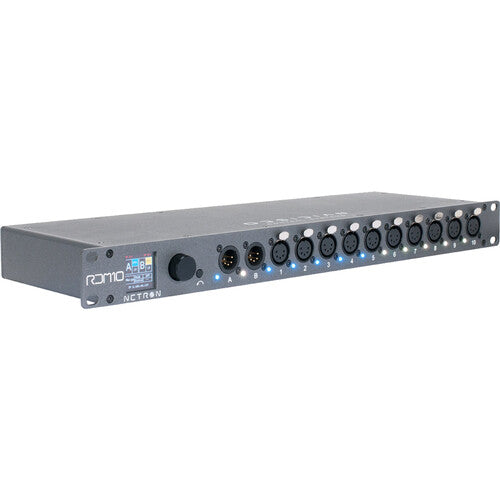

Front:
- Two 5-pin DMX inputs
- Ten 5-pin opto-isolated DMX outputs
- Full-color OLED display
- Encoder with Push to Select/Exit button

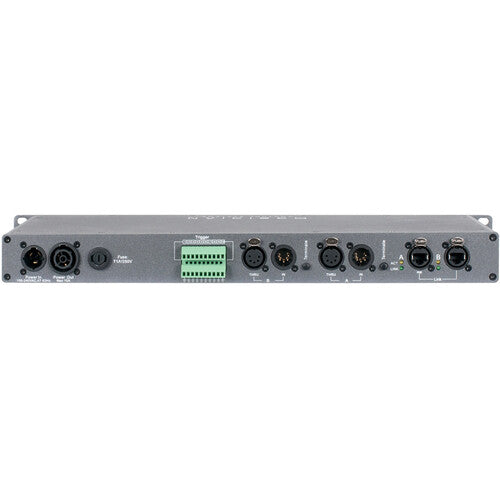

Back:
- Two locking RJ45 Ethernet network connections (one POE)
- Ten contact closures (terminal block)
- Locking power in/thru
Electrical
- 100 to 240 VAC nominal, 50/60 Hz
- POE 802.3af
