Elation Lighting

RDM 6 X RJ45 DMX RDM SPLITTER

RDM 6 X RJ45 DMX RDM SPLITTER

$448.00 USD
$620.00 USD $448.00 USD
Sale Sold out

The Obsidian Netron RDM 645 DMX/RDM Splitter is a rugged and compact unit designed for live productions and installations. It features six opto-isolated RJ45 DMX outputs and flexible mounting options to cover any situation.



Specifications

Mounting

Standalone
Truss-mount (M10 or M12 mounting hole)
Wall-mount horizontal or vertical (included)
DIN Rail horizontal or vertical (included)
Rack-mount option (requires NET Shelf)
    Connections

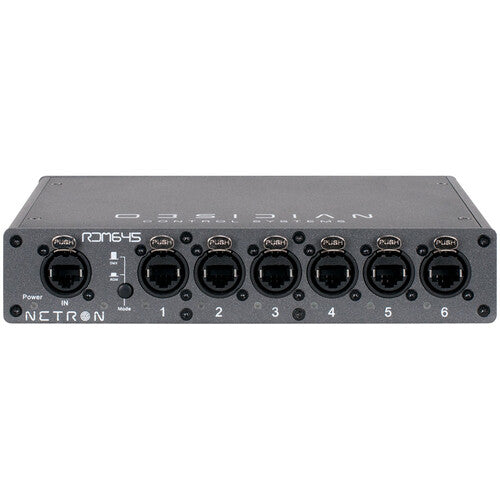

    Front
    Locking RJ45 Ethernet DMX Input
    (6) Locking RJ45 Ethernet Opto-Isolated DMX Outputs
    RDM Enable

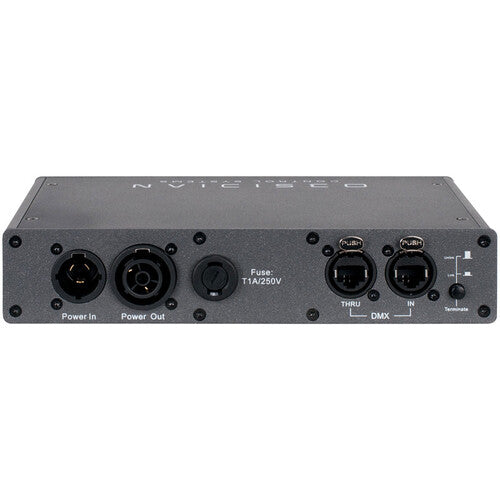

    Back
    Locking RJ45 Ethernet DMX Input (parallel with front)
    Locking RJ45 Ethernet DMX Through
    Terminate
    Locking Power In/Thru
      Length: 215 mm (8.5 in.)
      Width: 139 mm (5.5 in.)
      Height: 42 mm (1.65 in.)
      Weight: 1 kg (2.2 lbs)
        Electrical
        100-240 V nominal, 50/60 Hz, 10W

          Included Items
          1.5m Locking power cable (EU or US version)
          (2) Wallmount plates
          (2) DIN-Rail clamps

          APPROVALS / RATINGS
          CE | cETLus | FCC | IP20

          Specifications and documentation subject to change without notice.
