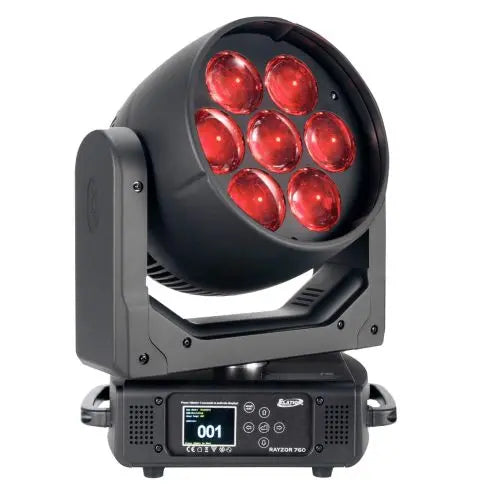

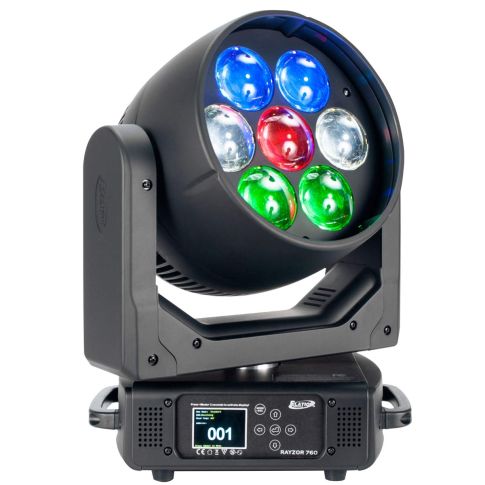

RAYZOR 760W7x 60W RGBW Continuous 360 deg pan/tilt w/ Zoom, Pixel and SparkLED

Elation's RAYZOR 760™ LED luminaire features their innovative patent-pending SparkLED™ pixel effect system to create a unique additional layer of lighting effects.

This compact yet extremely powerful wash effects fixture is driven by seven, independently controlled, 60W RGBW LEDs with a wide 5 to 77 degree zoom, providing intense and well-defined mid-air beams at over 8,000 lumens; as well as an exceptionally wide and even wash coverage, making it an ideal tool for any application, even in adverse outdoor conditions.

The fixture’s seven oversized front lenses create a large surface that is enhanced by SparkLED™ technology, which consists of 28 individual white LEDs, strategically placed inside the lens itself to create a unique additional layer, allowing designers access to a new and innovative way of creating interest on the stage. The dedicated high-brightness pixels give lighting designers all new possibilities to create layers of effect through elegant lens illumination and eye-candy twinkle effects.

In addition to its powerful wash and enhanced effects, the Rayzor 760 offers precise continuous pan & tilt rotation, allowing variable speed from slow to extremely fast movement effects. Combining the powerful LED output with the SparkLEDs while utilizing the 360° movement, allows the designer to create endless, unique and appealing designs from mid-air beams or wide stage washes to subtle effects for mood or the TV camera lens.

NOTE: All information is PRELIMINARY and subject to change without notice.

Applications

• Stage
• Production
• Club Designs

Features (preliminary)

• 7x 60 W OSRAM RGBW LED with Pixel Control
• 28x 2 W SparkLED™ Effect with Pixel Control (patent pending)
• Extreme Zoom – 5° for mid-air beam to 77° for even washes
• Fast and precise 360° continuous Pan and Tilt rotation
• Beam FX and Smooth Wash fixture in a compact housing

Specifications (preliminary)

• SKU: RAY760
• Source:
  • (7) 60 W Osram RGBW LEDs
  • (28) 2 W White SparkLED™
  • 50,000 Hour Average LED Life*
  • *May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
• Photometeric Data:
  • 8,000 K Total Output Lumen (preliminary)
• Effects:
  • 5 - 77° Beam Zoom Angle
  • Linear Color Temperature Presets (2700-8000K)
  • RGBW Color Mixing and Pixel Control
  • White SparkLED Lens Effect
  • Color Presets and Macros
  • Electronic Strobe and Variable Dimming Curves
  • 16-bit Dimming
• Control / Connections:
  • 3 DMX Channel Modes
  • 360° Continuous Pan and Tilt Movement
  • DMX Adjustable Refresh Rate (900 -25000 Hz)
  • (6) Button Touch Panel
  • Full Color 180° Reversible LCD Menu Display
  • RDM Support
  • 5pin XLR DMX In/Out
  • RJ45 EtherCon In/Out (Art-Net, sACN)
  • PowerCON TRUE1 Power In/Out
  • USB Connection (Firmware Updates)
  • With Wired Digital Communication Network
• Size / Weight:
  • Length: 13.5 in (343 mm)
  • Width: 10.3 in (264 mm)
  • Height: 16.33 in (415 mm)
  • Weight: 24.3 lbs. (11 kg)
• Electrical:
  • AC 100-240 V 50/60 Hz
  • 600 W Max Power Consumption (estimated)
• Approvals / Ratings:
  • CE | cETLus pending | IP20
