Elation Lighting

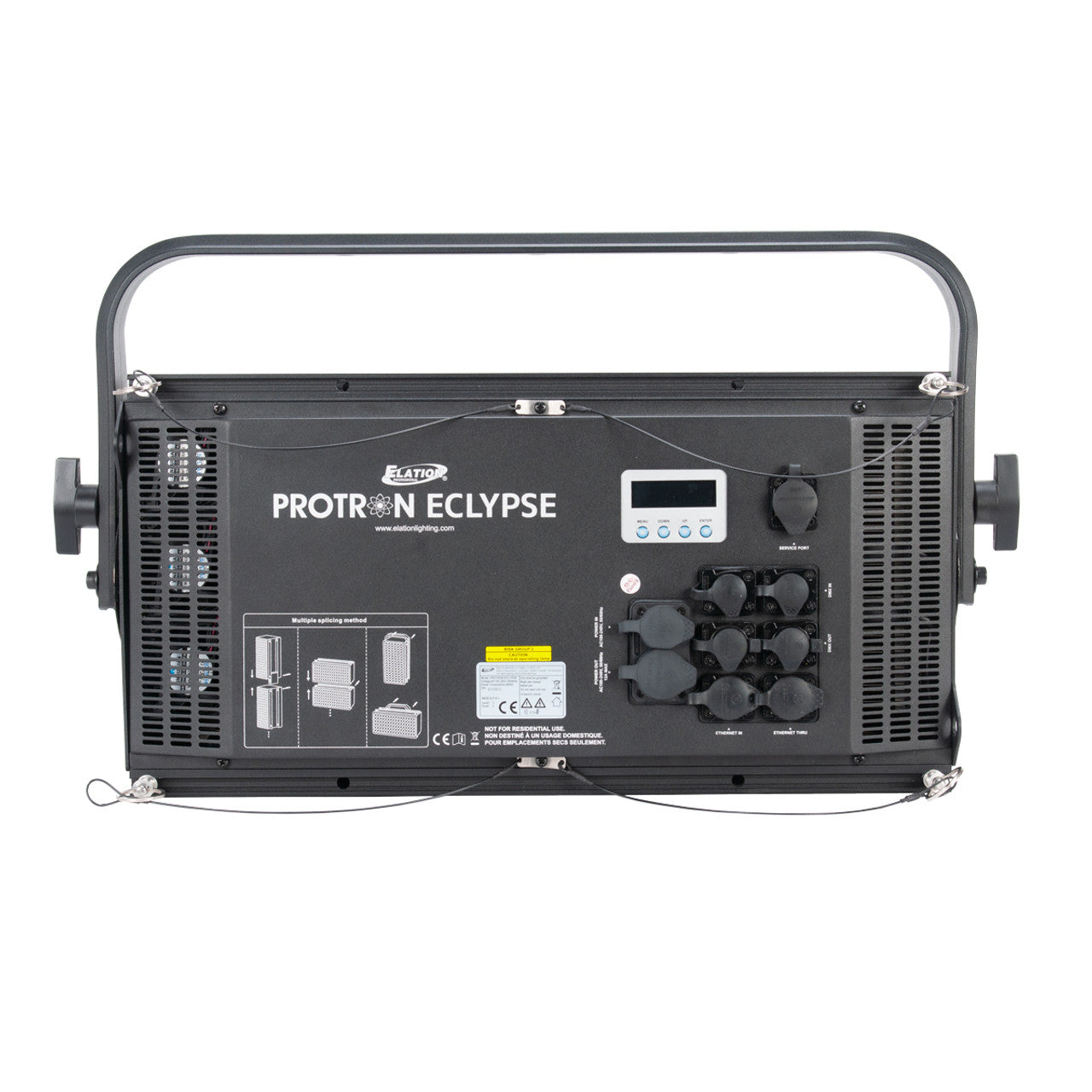

PROTRON ECLYPSE; 96 x 10W RGBW IPX4 LED Strobe / Wash / Blinder w/ Rig system

PROTRON ECLYPSE; 96 x 10W RGBW IPX4 LED Strobe / Wash / Blinder w/ Rig system

Regular price $2,242.00 USD
Regular price $3,750.00 USD Sale price $2,242.00 USD
Sale Sold out
The PROTRON ECLYPSE is a versatile high powered 1000W air cooled IPX4 outdoor rated color blinder, strobe, wash luminaire. Features include (96) 10W CREE RGBW 4-in-1 LEDs, 31° beam / 63° field angles, 27,000+ total lumen output, brilliant eye candy effects, selectable pixel mapping zones, strobe intensity, duration, rate, and FX control, super high speed (1-25fps) adjustable strobe, DMX, RDM, Kling-NET, and Art-NET protocol support, 8/16 bit RGB and RGBW smooth color mixing modes, adjustable/removable yoke bracket with 3-position holes, interlocking system for multiple unit matrix designs, IP65 3/5pin DMX, RJ45 ethernet, IP65 Locking power in/out connections, 4-button control pane with OLED menu display, and a multi-voltage universal auto switching power supply (100-240v).


Features

  • Versatile Color Blinder, Strobe, Wash Luminaire
  • High Powered 1000W Air Cooled IPX4 Outdoor Rated
  • 96 10W CREE RGBW 4-in-1 LEDs
  • 31° Beam / 63° Field Angles
  • 27,000+ Total Lumen Output
  • Brilliant Eye Candy Effects
  • Selectable Pixel Mapping Control Zones
  • Strobe Intensity, Duration, Rate, and FX Control
  • Super High Speed (1-25fps) Adjustable Strobe
  • DMX, RDM, Kling-NET and Art-NET Protocol Support
  • 8/16 Bit RGB and RGBW Smooth Color Mixing Modes
  • Adjustable/Removable Yoke Bracket w/3-Position Holes
  • Interlocking System for Multiple Unit Matrix Designs

Specifications

SOURCE

  • (96) 10W CREE 4-in-1 RGBW LEDs
  • 15,000 Hour Average LED Life*
  • *May vary depending on several factors including but not limited to:
  • Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.



PHOTOMETRIC DATA

  • 31° Beam / 63° Field Angles
  • 27,000+ Total Lumen Output



EFFECTS

  • Color Blinder, Strobe, and Wash
  • Brilliant Eye Candy Effects
  • Selectable Pixel Mapping Control Zones
  • Strobe Intensity, Duration, Rate, and FX Control
  • Super High Speed (1-25fps) Adjustable Strobe
  • 8/16 Bit RGB and RGBW Smooth Color Mixing Modes



COLOR

  • RGBW



CONTROL / CONNECTIONS

  • Multiple DMX Channel Modes (24 total channels)
  • 4 Button Touch Control Panel with OLED Menu Display
  • DMX, RDM, Kling-NET, and Art-NET Protocol Support
  • IP65 3/5pin DMX and RJ45 ethernet In/Out
  • IP65 Locking Power In/Out
  • Fixture-to-Fixture Interlocking Alignment Pins/Locks



SIZE / WEIGHT

  • Length: 24.9” (633mm)
  • Width: 7.0” (177.5mm)
  • Vertical Height: 14.4” (364.8mm)
  • Weight: 34.6 lbs. (15.7kg)



ELECTRICAL / THERMAL

  • AC 100-240V - 50/60Hz
  • 843W Max Power Consumption
  • 14°F to 113°F (-10°C to 45°C)
  • BTU/hr (+/- 10%) 2874.63



APPROVALS / RATINGS
