Elation Lighting

Proteus Rayzor Blade S; 700W IP65 Tilt Bar w/RGBW Pixel Zoom, Strobe, SparkLED

Proteus Rayzor Blade S; 700W IP65 Tilt Bar w/RGBW Pixel Zoom, Strobe, SparkLED

$4,450.00 USD
$6,300.00 USD $4,450.00 USD
Sale Sold out

Elation PRR052 Proteus Rayzor Blade S

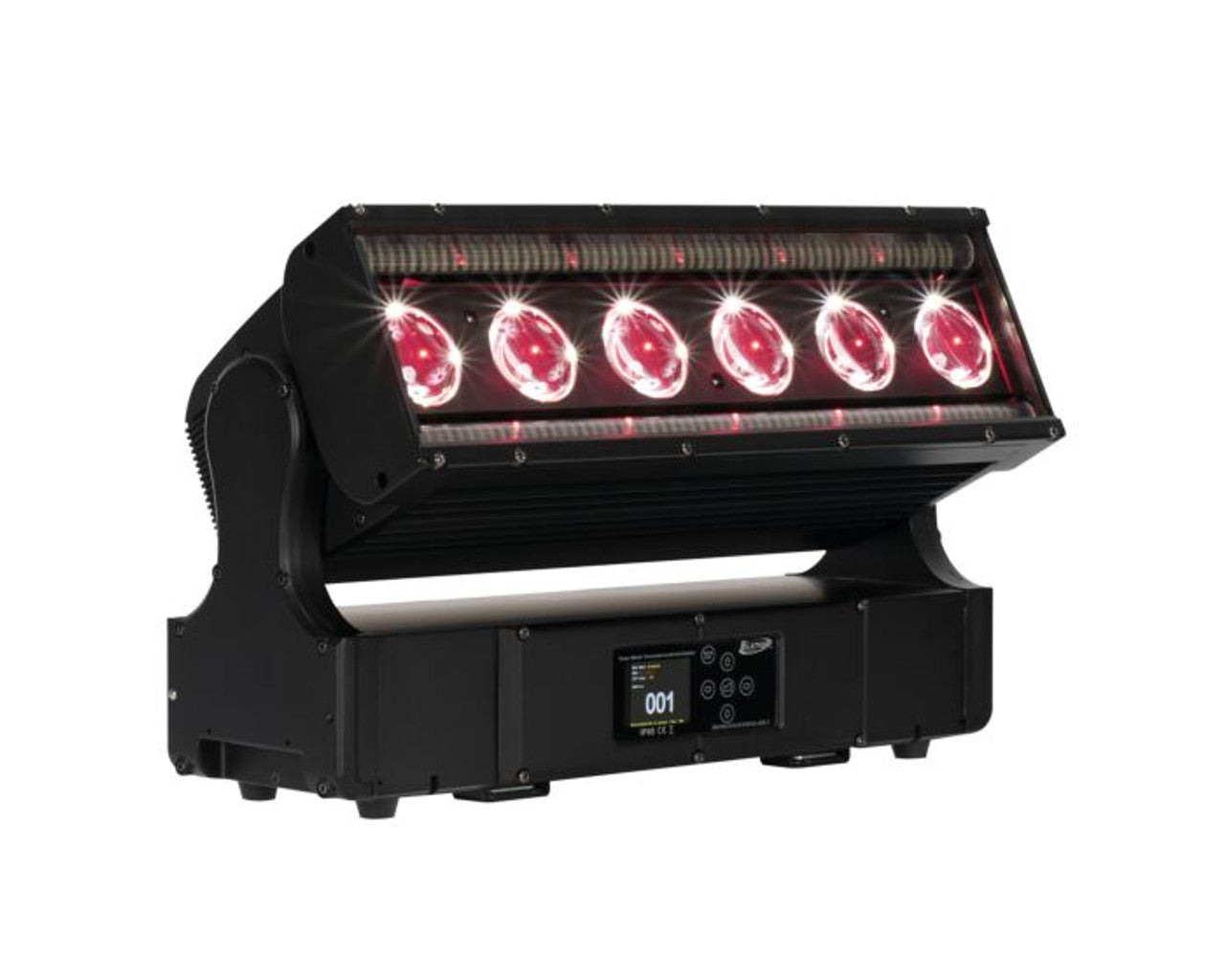

The PROTEUS RAYZOR BLADE S™ is a striking visual combination of Linear Wash, high intensity Strobe Lines and SparkLED FX inside a compact IP65 linear fixture design. Envisioned to provide the designer unlimited creative control of powerful colors and high-powered strobe effects from a single unit it allows unlimited placement in any outdoor and indoor environment. Protected from dust and water ingress the Rayzor Blade S is part of Elation’s industry leading Proteus Range of outdoor luminaires.


This fixture features Elation’s unique patented SparkLED™ system and allows impactful Tilt sweep motions. With its wide zoom range from 6 to 45 degrees it provides intense and well-defined mid-air beams and light curtains at over 6,600 lumens as well as an exceptionally wide and even wash coverage, making it a perfect tool from stage washes, mid-air effects or audience blinders, even in adverse outdoor conditions. SparkLEDs offer a prominent and innovative LED pixel effect with dedicated high brightness pixels inside the large front lenses for additional layers of creativity.

Driven by 6, independently controlled, 60W RGBW LEDs, delivering over 6,000 lumens of output with a total power of 360W, the PROTEUS RAYZOR BLADE S provides a powerful beam that stands out on any stage. The oversized front lenses create a large visual surface on the fixture that is enhanced by the exclusive patent pending SparkLEDs technology. SparkLEDs consists of individual white LEDs, strategically placed inside the lens itself to create a unique additional layer, allowing designers access to a new and innovative way of creating interest on the stage. Proteus Rayzor fixtures offer this never seen before style of internal lens illumination for depth and visual impact. SparkLEDs are controllable by the lighting console or driven by a multitude of internal FX patterns.

In addition to its powerful wash and SparkLED effects, the PROTEUS RAYZOR BLADE S provides two seamless high-intensity strobe lines with a total of 128 cool white LED dots. Flanking the Rayzor lenses across the entire length of the fixture these dual strobe arrays offer incredible visual effects with a multitude of integrated FX or precise pixel control from the lighting console.

Features

IP65 Protected LED Tilt FX Fixture

6x 60W OSRAM RGBW LED with Pixel Control

24x 2W SparkLED™ Effect with Pixel Control

Dual 64x1W Strobe Pixel Line

Extreme Zoom – 6° for mid-air beam to 45° for even washes

Fast and precise 210° Tilt Rotation

Specifications

SOURCE

(6) 60W Osram RGBW LEDs

(24) 2W White SparkLED™

(128) 1W Strobe LED

50,000 Hour Average LED Life*

*Test lab conditions. May vary depending on several factors including but not limited to:

Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.



PHOTOMETRIC DATA

6,000 Total Lumen Output (RGBW)

CRI 80

Zoom Range 6° - 45°

Colortemperature SparkLED 4000K

Colortemperature Strobe Line 6500K



EFFECTS

Motorized Zoom

Linear Color Temperature Presets (2700-8000K)

RGBW Color Mixing and Pixel Control

White SparkLED Lens Effect

Dual White Strobe Lines (64 pixels per side)

Color Presets and Macros

Electronic Strobe and Variable Dimming Curves

16-bit Dimming

Tilt Angle: 192°





CONTROL / CONNECTIONS

3 DMX Channel Modes (27/50/106 channels)

Pixel controlled Wash, SparkLED and Strobe LED

DMX Adjustable Refresh Rate (900 -25000 Hz)

(6) Button Touch Panel

Full Color 180° Reversible LCD Menu Display

RDM Support

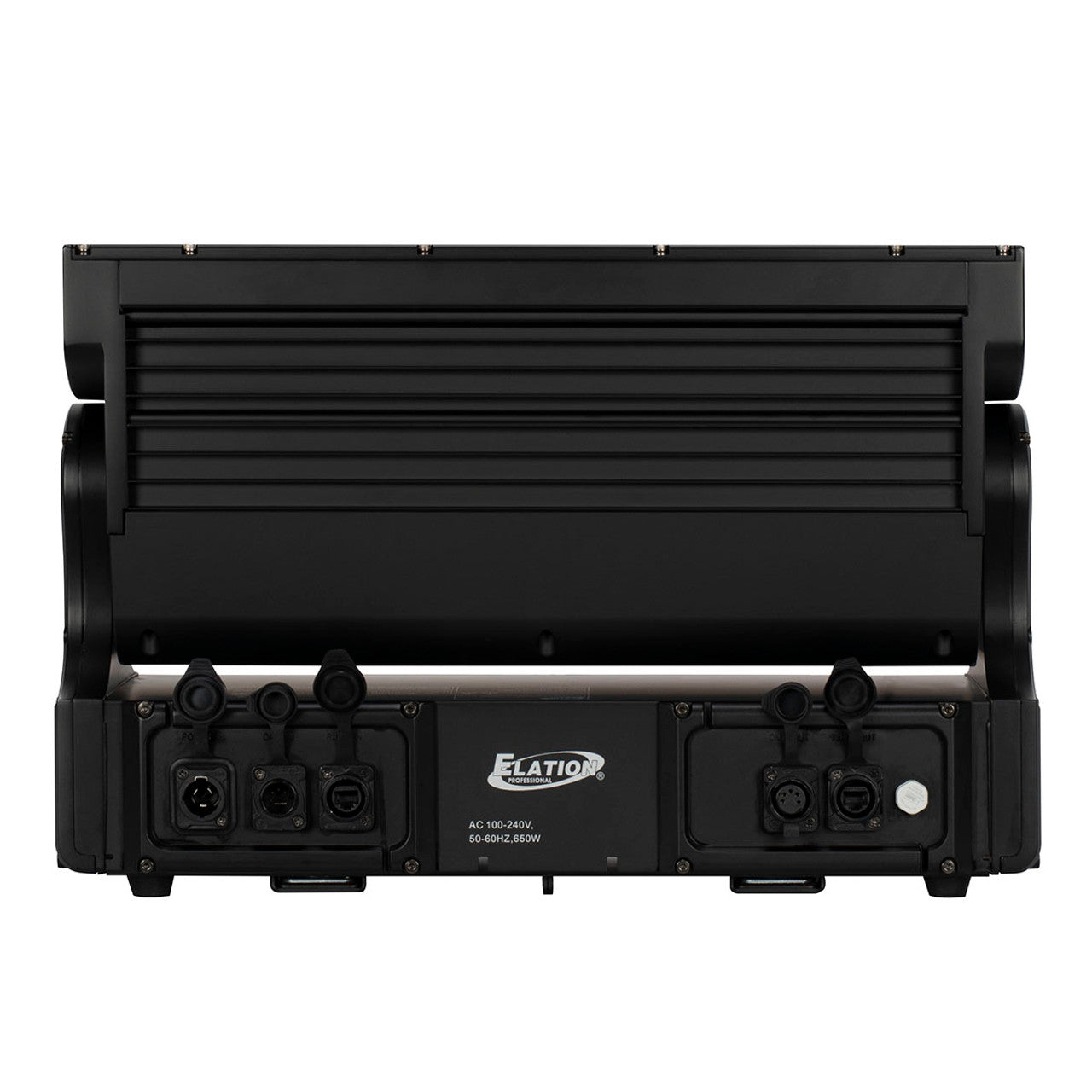

IP65 5pin XLR DMX In/Out

IP65 RJ45 Ethernet In/Out (Art-Net, sACN)

IP65 Locking Power Cable In



SIZE / WEIGHT

Length: 19.8 in (504mm)

Width (Base): 7.6 in (194mm)

Width (Head): 6.1 in (155mm)

Height (head up): 13.2 in (336mm)

Height (head 90 degree): 11.3in (288mm)

Weight: 39.4 lbs. (17.9kg)



ELECTRICAL / THERMAL

AC 100-240V 50/60Hz

700W Max Power Consumption



APPROVALS / RATINGS

CE | cETLus | IP65
