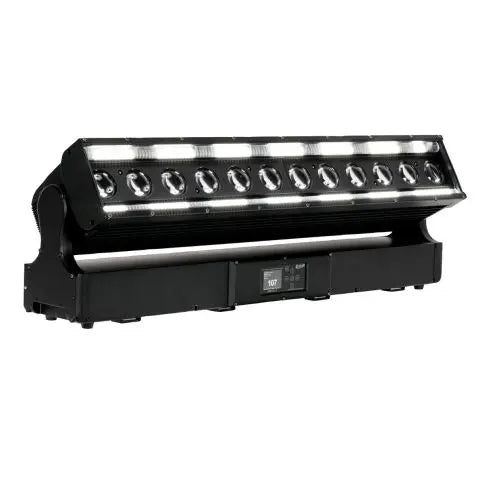

Proteus Rayzor Blade L; 1400W IP65 Tilt Bar w/RGBW Pixel Zoom, Strobe, SparkLED

The PROTEUS RAYZOR BLADE L is a striking visual combination of Linear Wash, high intensity Strobe Lines and SparkLED FX inside a compact IP65 linear fixture design. Envisioned to provide the designer infinite creative control of powerful colors and high-powered strobe effects from a single unit it allows unlimited placement in any outdoor and indoor environment. Protected from dust and water ingress the Rayzor Blade L is part of Elation's industry leading Proteus Range of outdoor luminaires. This fixture features Elation's unique patented SparkLED system and allows impactful Tilt sweep motions. With its wide zoom range from 6 to 45 degrees it provides intense and well-defined mid-air beams and light curtains at over 11,000 lumens as well as an exceptionally wide and even wash coverage, making it a perfect tool from stage washes, mid-air effects or audience blinders, even in adverse outdoor conditions. SparkLEDs offer a prominent and innovative LED pixel effect with dedicated high brightness pixels inside the large front lenses for additional layers of creativity. Driven by 12, independently controlled, 60W RGBW LEDs, delivering over 11,000 lumens of output with a total power of 720W, the PROTEUS RAYZOR BLADE L provides a powerful beam that stands out on any stage.

The oversized front lenses create a large visual surface on the fixture that is enhanced by the exclusive patent pending SparkLEDs technology. SparkLEDs consists of individual white LEDs, strategically placed inside the lens itself to create a unique additional layer, allowing designers access to a new and innovative way of creating interest on the stage. PROTEUS RAYZOR fixtures offer this never seen before style of internal lens illumination for depth and visual impact. SparkLEDs are controllable by the lighting console or driven by a multitude of internal FX patterns. In addition to its powerful wash and SparkLED effects, the PROTEUS RAYZOR BLADE L provides two seamless high-intensity strobe lines with a total of 256 cool white LED dots. Flanking the Rayzor lenses across the entire length of the fixture these dual strobe arrays offer incredible visual effects with a multitude of integrated FX or precise pixel control from the lighting console.

Elation Professional PROTEUS RAYZOR BLADE L Tilt Fixture Features:

• IP65 Protected LED Tilt FX Fixture.
• 12x 60W OSRAM RGBW LED with Pixel Control.
• 48x 2W SparkLED Effect with Pixel Control.
• Dual 128x1W Strobe Pixel Line.
• Extreme Zoom - 6° for mid-air beam to 45° for even washes.
• Fast and precise 210° Tilt Rotation.
