Elation Lighting

Proteus Rayzor 760; 7x60W RGBW IP MH w/ 360 pan/tilt and SparkLED

Proteus Rayzor 760; 7x60W RGBW IP MH w/ 360 pan/tilt and SparkLED

Regular price $4,000.00 USD
Regular price $5,500.00 USD Sale price $4,000.00 USD
Sale Sold out

Product Overview

Elation's RAYZOR 760™ LED luminaire features their innovative patent-pending SparkLED™ pixel effect system to create a unique additional layer of lighting effects.

This compact yet extremely powerful wash effects fixture is driven by seven, independently controlled, 60W RGBW LEDs with a wide 5 to 77 degree zoom, providing intense and well-defined mid-air beams at over 8,000 lumens; as well as an exceptionally wide and even wash coverage, making it an ideal tool for any application, even in adverse outdoor conditions.

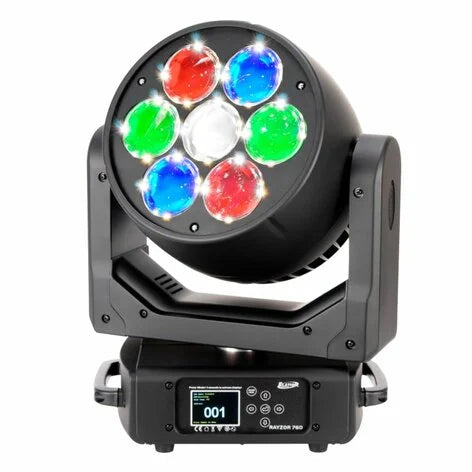

The fixture’s seven oversized front lenses create a large surface that is enhanced by SparkLED™ technology, which consists of 28 individual white LEDs, strategically placed inside the lens itself to create a unique additional layer, allowing designers access to a new and innovative way of creating interest on the stage. The dedicated high-brightness pixels give lighting designers all new possibilities to create layers of effect through elegant lens illumination and eye-candy twinkle effects.

In addition to its powerful wash and enhanced effects, the Rayzor 760 offers precise continuous pan & tilt rotation, allowing variable speed from slow to extremely fast movement effects. Combining the powerful LED output with the SparkLEDs while utilizing the 360° movement, allows the designer to create endless, unique and appealing designs from mid-air beams or wide stage washes to subtle effects for mood or the TV camera lens.

NOTE: All information is PRELIMINARY and subject to change without notice.


  • Stage
  • Production
  • Club Designs

Features (preliminary)

  • 7x 60 W OSRAM RGBW LED with Pixel Control
  • 28x 2 W SparkLED™ Effect with Pixel Control (patent pending)
  • Extreme Zoom – 5° for mid-air beam to 77° for even washes
  • Fast and precise 360° continuous Pan and Tilt rotation
  • Beam FX and Smooth Wash fixture in a compact housing

Specifications (preliminary)

  • SKU: RAY760
  • Source:
    • (7) 60 W Osram RGBW LEDs
    • (28) 2 W White SparkLED™
    • 50,000 Hour Average LED Life*
    • *May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
  • Photometeric Data:
    • 8,000 K Total Output Lumen (preliminary)
  • Effects:
    • 5 - 77° Beam Zoom Angle
    • Linear Color Temperature Presets (2700-8000K)
    • RGBW Color Mixing and Pixel Control
    • White SparkLED Lens Effect
    • Color Presets and Macros
    • Electronic Strobe and Variable Dimming Curves
    • 16-bit Dimming

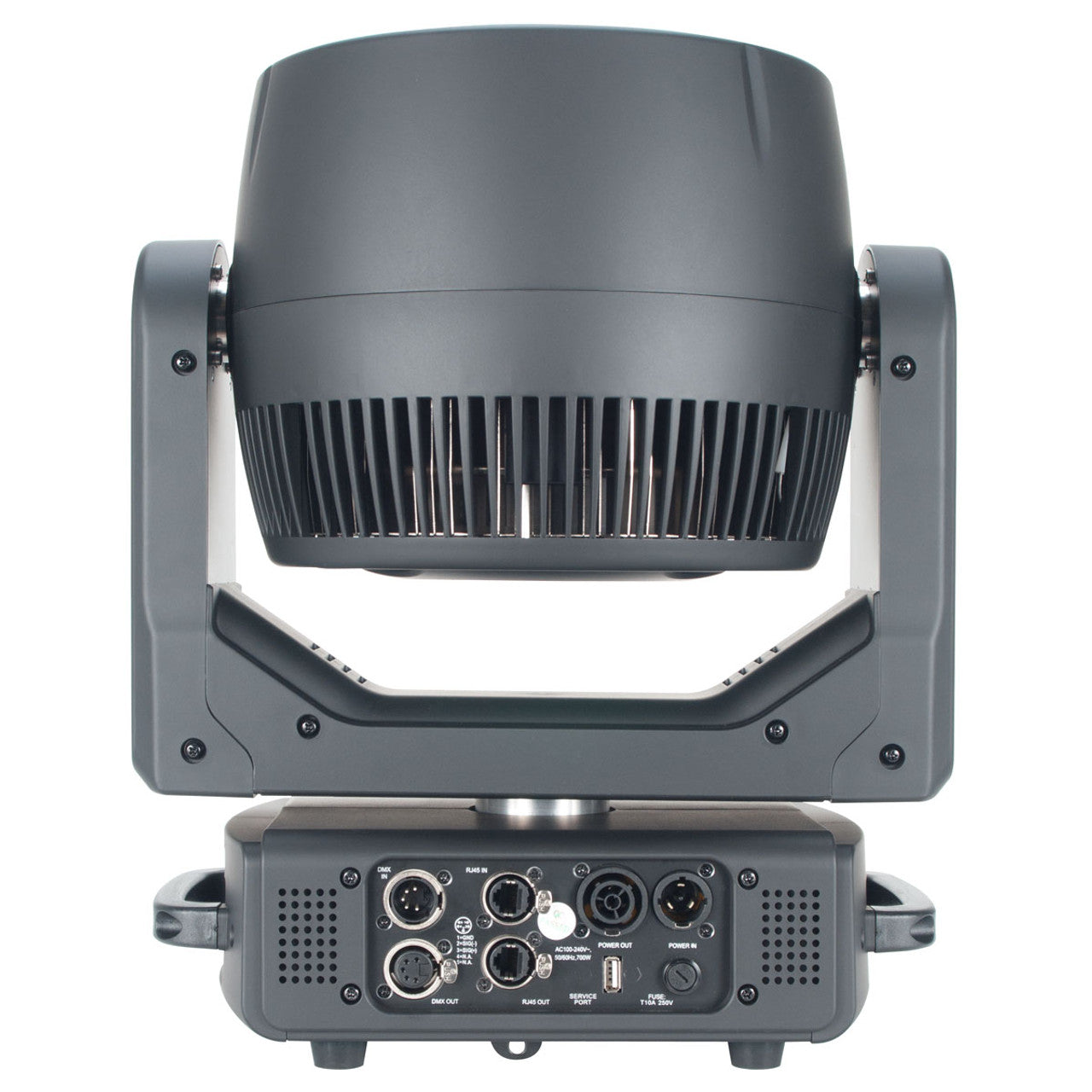

  • Control / Connections:
    • 3 DMX Channel Modes
    • 360° Continuous Pan and Tilt Movement
    • DMX Adjustable Refresh Rate (900 -25000 Hz)
    • (6) Button Touch Panel
    • Full Color 180° Reversible LCD Menu Display
    • RDM Support
    • 5pin XLR DMX In/Out
    • RJ45 EtherCon In/Out (Art-Net, sACN)
    • PowerCON TRUE1 Power In/Out
    • USB Connection (Firmware Updates)
    • With Wired Digital Communication Network
  • Size / Weight:
    • Length: 13.5 in (343 mm)
    • Width: 10.3 in (264 mm)
    • Height: 16.33 in (415 mm)
    • Weight: 24.3 lbs. (11 kg)
  • Electrical:
    • AC 100-240 V 50/60 Hz
    • 600 W Max Power Consumption (estimated)
  • Approvals / Ratings:
    • CE | cETLus pending | IP20
