Elation Lighting

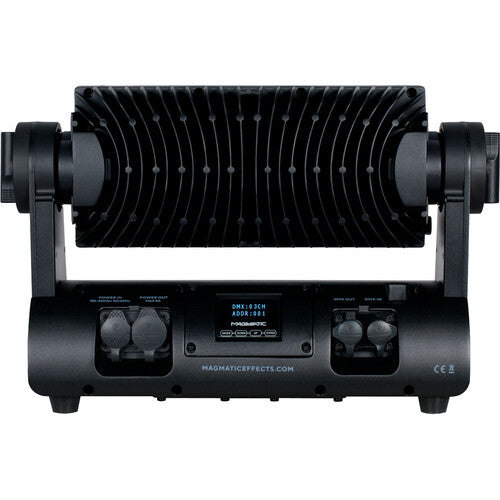

Prisma Wash 100;38X2 100° lens UV LED IP

Prisma Wash 100;38X2 100° lens UV LED IP

Regular price $1,575.00 USD
Regular price $2,098.00 USD Sale price $1,575.00 USD
Sale Sold out
PRISMA WASH 100™ is an exterior IP65 rated UV wash luminaire that produces 365nm peak true UV output with zero visible light. Features include a scoop LED reflector design which creates an impressive 90 degree wide beam angle, manual adjustable tilt positioning and versatile rigging options, a user friendly digital 2.5 inch LCD touch screen control panel, intuitive DMX-512 and RDM control, and IP rated power and data in/out.

Optional accessories include a Black Glass diffusion filter to create a complete blackout effect, only allowing UV rays to penetrate, and extended length IP rated power and data linking cables.

Specifications

SOURCE

(38) 2W High Power UV Diode LEDs
20,000 Hour Average LED Life*

*Test lab conditions. May vary depending on several factors including but not limited to:

Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.




PHOTOMETRIC DATA
90 Degree Wide Beam Angle
365nm True UV Peak Wavelength

EFFECTS
High Speed Electronic Strobe
Variable Dimming Curve Modes

CONSTRUCTION
Rugged IP65 Rated Aluminum Housing
Manual Adjustable Tilt Position

CONTROL
Multiple DMX Channel Modes
Onboard 4 Button Touch Control Panel
DMX-512 and RDM Protocol Support

CONNECTIONS
Locking 5pin XLR Connector In/Out
IP65 Locking Power Connector In
With Wired Digital Communication Network

SIZE / WEIGHT
Length: 17.24” (438mm)
Width: 5.82” (148mm)
Vertical Height: 11.29” (287mm)
Weight: 18.5 lbs. (8.4 kg)

ELECTRICAL
AC100-240V 50-60Hz
T2A/250V
83W Max Power Consumption

THERMAL
Ambient Temperature (Ta max) 104°F (40°C)
Air Cooled

APPROVALS / RATINGS
CE | cETLus | IP65


Specifications and documentation subject to change without notice.
