Elation Lighting

Prisma Par 50;16X2W 50° lens UV LED IP65

Prisma Par 50;16X2W 50° lens UV LED IP65

$600.00 USD
$800.00 USD $600.00 USD
Sale Sold out

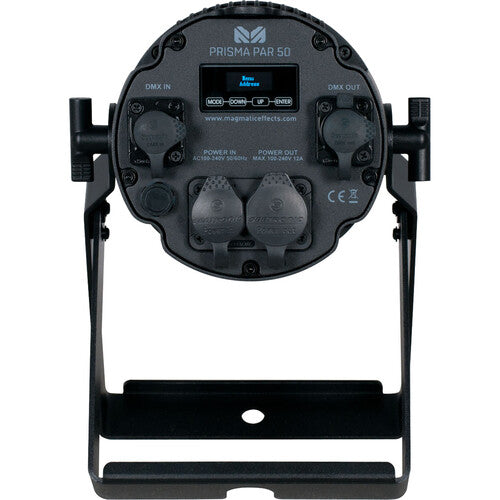

PRISMA PAR 50™ is an exterior IP65 rated UV wash par luminaire that produces 365nm peak true UV output with zero visible light, and an impressive 50 degree wide beam angle from the large internal LED reflector. Features includes a user friendly digital 2.5 inch LCD touch screen control panel, intuitive DMX-512 and RDM control, dual adjustable mounting yokes, a durable aluminum housing, and IP65 DMX 5pin XLR and locking power in/out connection

Specifications

SOURCE
(16) 2W High Power UV Diode LEDs
20,000 Hour Average LED Life*

*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.


PHOTOMETRIC DATA
50 Degree Wide Beam Angle
365nm True UV Peak Wavelength

EFFECTS
High Speed Electronic Strobe
Variable Dimming Curve Modes

CONSTRUCTION
Rugged IP65 Rated Aluminum Housing
Dual Adjustable Mounting Yokes

CONTROL
Multiple DMX Channel Modes
Onboard 4 Button Touch Control Panel
DMX-512 and RDM Protocol Support

CONNECTIONS
Locking 5pin XLR Connector In/Out
IP65 Locking Power Connector In
With Wired Digital Communication Network

ELECTRICAL
AC100-240V 50-60Hz
83W Max Power Consumption

THERMAL
14°F to 113°F (-10°C to 45°C)
Air Cooled

OPTIONAL ACCESSORIES
Prisma Par Black Glass (PSG852)

SIZE / WEIGHT
Length: 7.55 in. (192mm)
Width: 5.90 in. (150mm)
Vertical Height: 12.37 in. (314.3mm)
Weight: 7.05 lbs. (3.2kg)

APPROVALS / RATINGS
CE | cETLus | IP65

Specifications and documentation subject to change without notice.
