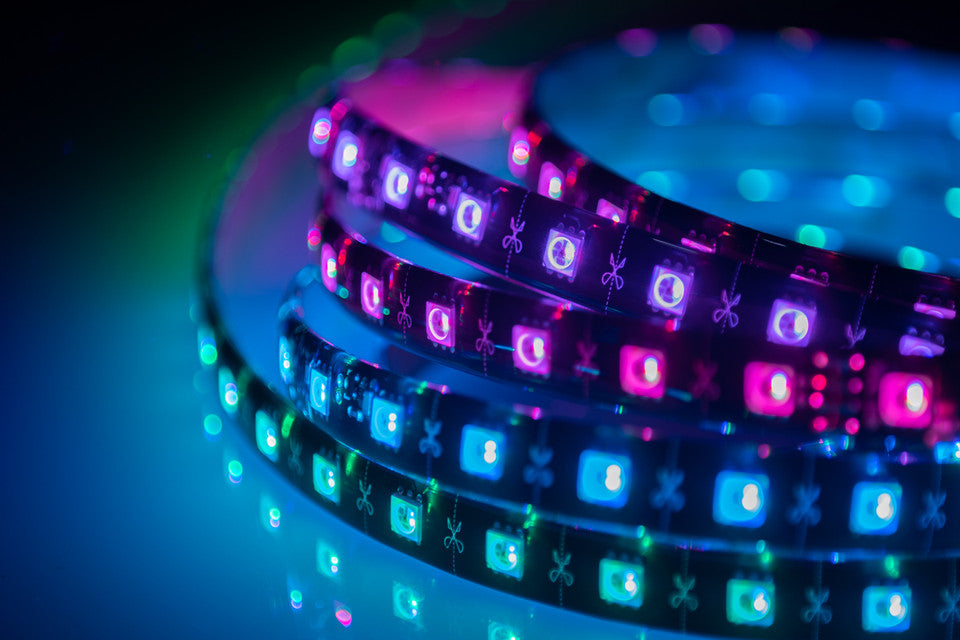

PIXEL TAPE 40IP; 8.9 foot long (2.7m), 170 PIXEL RGB LED IP65 35W

PIXEL TAPE 40IP; 8.9 foot long (2.7m), 170 PIXEL RGB LED IP65 35W

$200.00 USD
$250.00 USD $200.00 USD
Sale Sold out

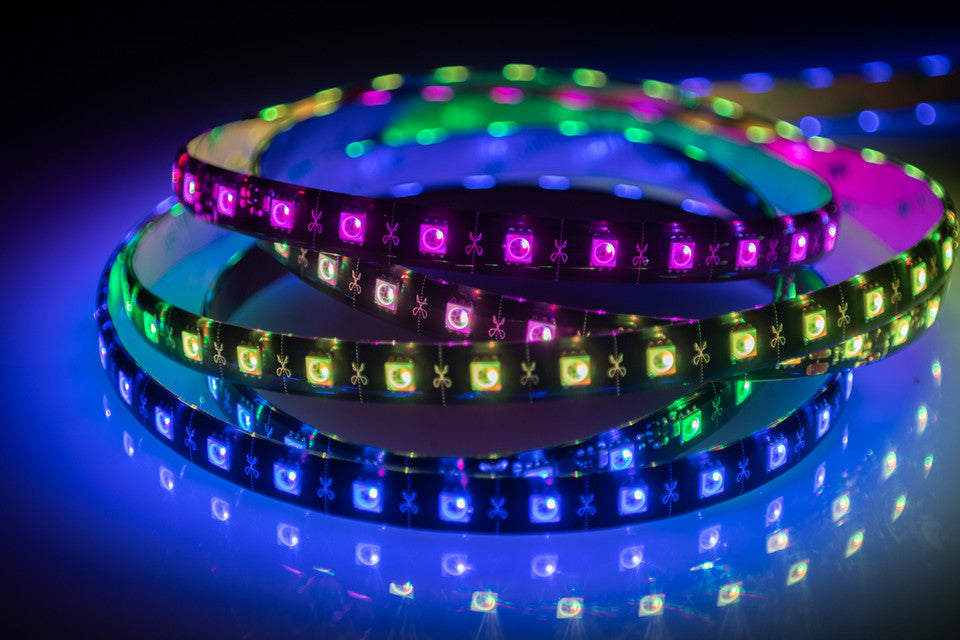

The Pixel Tape 16IP™ is an IP65, outdoor rated, 8.9 foot (2.7m) flexible LED pixel tape featuring (170) RGB SMD tri-color LED pixels (510 total DMX channels), producing over 1 billion color possibilities with a 120° viewing angle and is surface coated with an IP65 rated conformal coating. Pixel Tape 16IP's can be powered and controlled using our Pixel Driver-170, Pixel Driver 1000IP or Pixel Driver 4000 V2 control drivers.

Features

IP65 Outdoor Rated Flexible LED Pixel Tape
8.9 foot (2.7m) Roll
(170) RGB Tri-Color SMD LED Pixels
(510) Total DMX Channels
Pixels Spaced on 0.62” (16mm) Centers
Cut Every 0.98” (25mm). Cut to shorten the length only. These cannot be extended.
120° Viewing Angle
455 Lumens
Over 1 Billion Color Possibilities


Specifications

SOURCE:
(170 Pieces) APA102 / RGB

LED SPACING:
16mm Pixel Pitch

PHOTOMETRIC OUTPUT:
455 Lumens

COLOR:
Over 1 Billion Color Possibilities

CONTROL:
(510) DMX Channels
ICS APA102 Protocol

SIZE / WEIGHT:
Length: 107.2" (2,720mm) Roll
Width: 0.5” (12mm)
Vertical Height: 0.1" (3mm)
Weight: Under 1 lb. (0.2kg)

ELECTRICAL / THERMAL:
DC 24V
35W Max Power Consumption

APPROVALS / RATINGS:
CE
cETLus (PENDING)
IP65
