Elation Lighting

PIXEL BAR / PIXEL TAPE IP DRIVER FOR UP TO 4096 PIXELS

PIXEL BAR / PIXEL TAPE IP DRIVER FOR UP TO 4096 PIXELS

Regular price $976.00 USD
Regular price $1,220.00 USD Sale price $976.00 USD
Sale Sold out

Pixel Driver 4000 V2™ is designed specifically for the Elation Pixel Tape 16IP, 40IP,  Pixel Bar 30IP, 60IP, and 120IP series, and provides easy and versatile control options including simple on-board manual dimming and strobe control, and full pixel mapping control of 4,080 max pixels via Kling-Net, and 680 max pixels via Art-Net and sACN (streaming ACN) protocols.

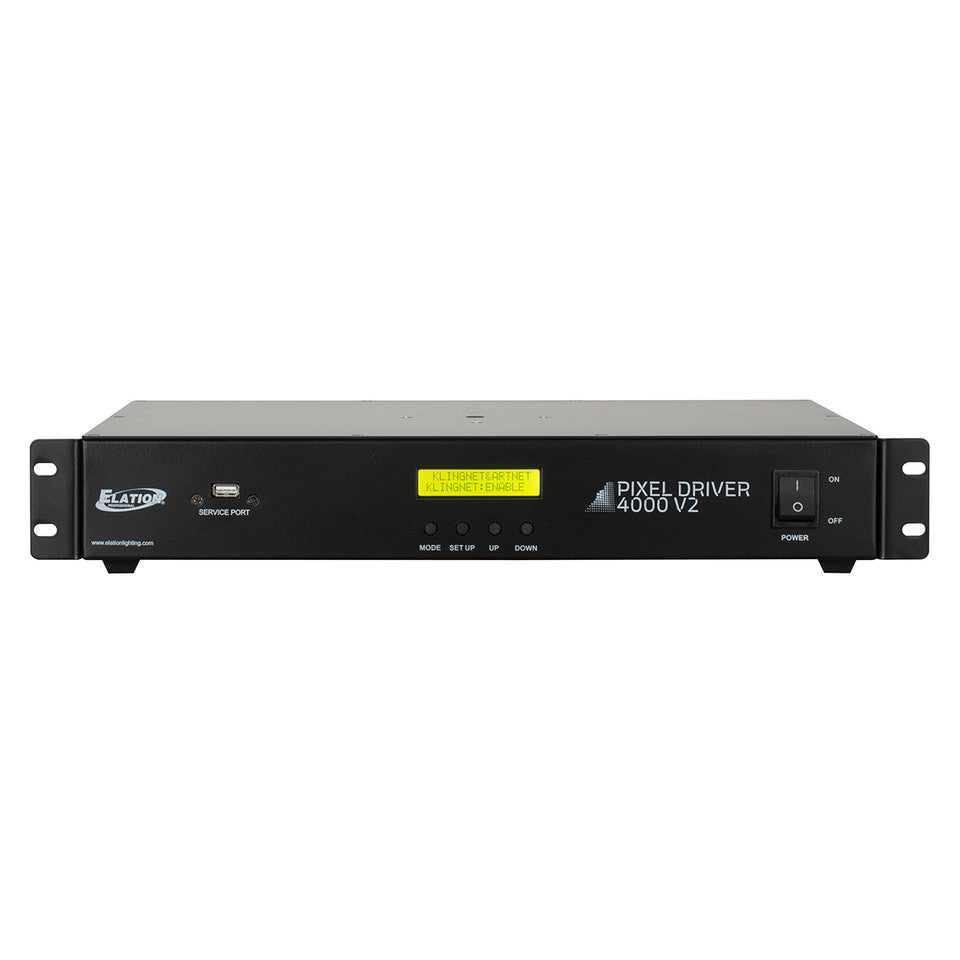

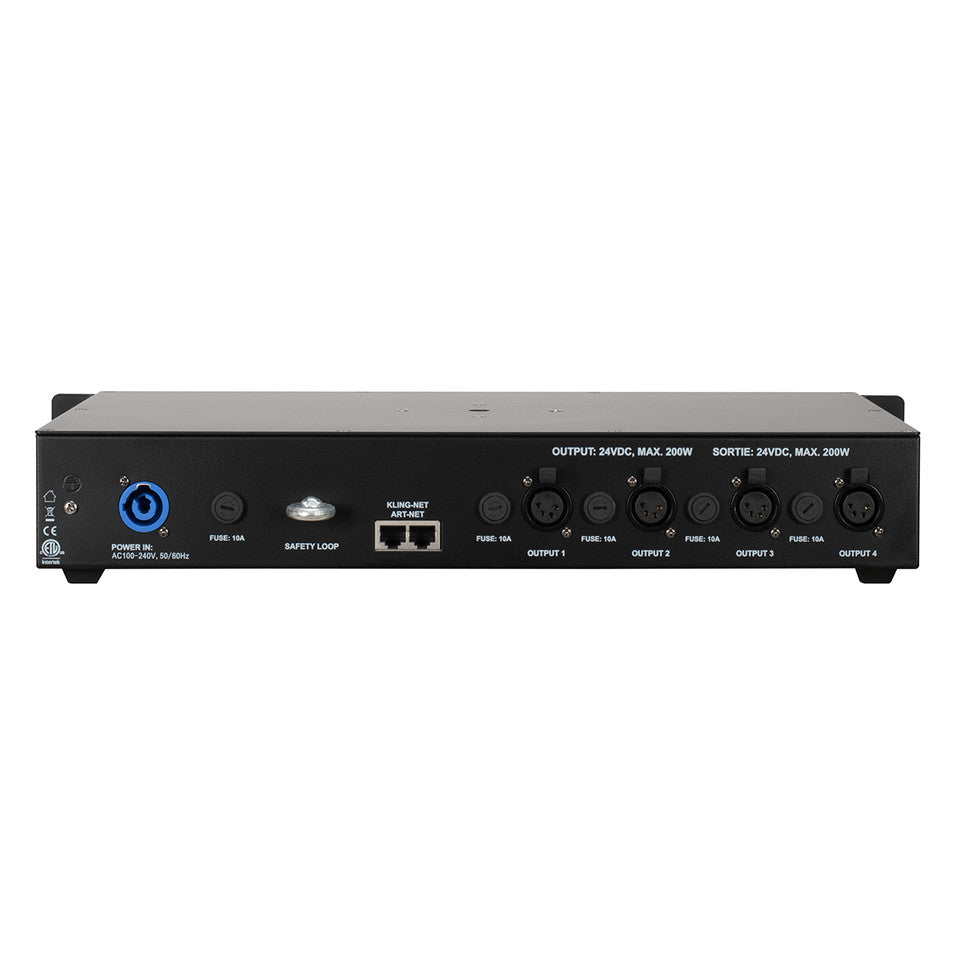

The Pixel Driver 4000 V2 features a universal auto switching power supply (100-240v), a 4-button LCD control menu display, RJ45 Ethernet in/out ports, and (4) outputs which use proprietary IP rated 4pin combo cables (sold separately) that supply power and data to each pixel bar, (available in lengths from 2 to 50 feet). The Pixel Driver 4000 V2 can be mounted in a standard 19-inch rack (rack ears included) or attached to truss with a clamp (not included).

Features

Power/Data Supply for Elation Pixel Tape 16IP, 40IP, Pixel Bar 30IP, 60IP, and 120IP
Simple On-Board Manual Dimming and Strobe Control
Kling-Net, Art-Net, and sACN Protocol Support
4,080 Max Pixel Mapping via Kling-Net
680 Max Pixel Mapping via Art-Net and sACN
19-inch (483mm) Rack Mount Kit Included
Truss Mounting Options (clamp not included)
Multi Unit Linking via RJ45 Ethernet
(4) Outputs
5.65ft (1.7m) Power Cable Included
9.25ft (2.8m) 16AWG Power/Data Cable Included
Proprietary IP Rated Power/Data Combo Cables*
*Available in, 16AWG; 2/3/5/10/12/15/20/25/30/50 Foot Lengths and 12AWG; 20/25/30/50 Foot Lengths. See Related Products and Accessories at the bottom of this page.


Specifications

CONTROL / CONNECTIONS

Manual RGB Mode

Internal Programs

Art-NET | sACN | Kling-NET

2 RJ45 Ethernet Ports

4 4pin Power/Data Outputs

USB Port for Firmware Updates



SIZE / WEIGHT

Length: 16.7” (425mm)

Width: 11.8” (301mm)

Height: 2.9” (74mm)

Weight: 9.5 lbs. (4.3kg)



ELECTRICAL

AC 100-240V - 50/60HZ

800W Max Power Consumption

-4°F to 113°F (-20°C to 45°C)
