NX Wing; 64 Universes (ONYX Premier), 4x DMX port USB controller Midi / Smpte

NX Wing; 64 Universes (ONYX Premier), 4x DMX port USB controller Midi / Smpte

$3,500.00 USD
$3,500.00 USD
Sale Sold out

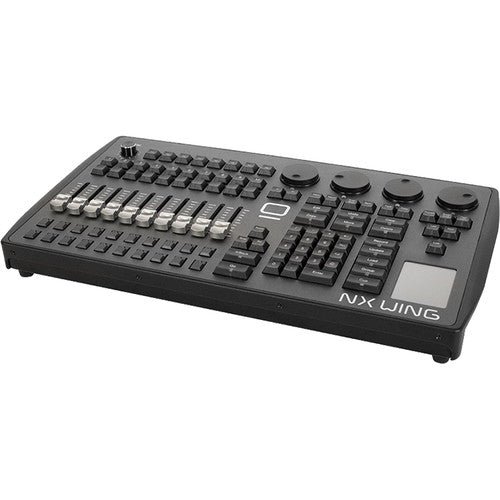

The NX Wing 64 Universe USB Control Surface from Elation Professional features four DMX input/output ports, MIDI input/output/thru ports, and a SMPTE Timecode input/output port. It has a USB 2.0 Type-B input, which supports a USB device for any computer with ONYX. A 64-universe license for ONYX is included. This control surface features a playback select button, four digital rotary encoders, an internal 3.5" touchscreen, and a numerical keypad and command keys. An RGB LED desk lamp with an angular XLR connector, a dust cover, an Obsidian USB cable, an external 12V PSU, and a 4.9' power cable are included.

Portable and lightweight
Four digital rotary encoders with push function and status LED for fixture parameter control
3.5" RGB touchscreen for parameter groups, effect parameters, fanning, and global timings
Plug-and-play USB device for any computer with ONYX
Surface
10 x 60 mm Playback Faders, each with 4 x Function-Assignable Buttons
8 x Customizable Multi-Function Keys
Playback Select Button
Master Go Section with Go, Pause, Snap, and Release
4 x Digital Rotary Encoders with Push Function and Status LED
3.5" / 8.9 cm RGB Touchscreen
Grand Master Rotary Fader and Button
Blind/HighLight/Last/Next Buttons
Full Numerical Keypad and Command Keys

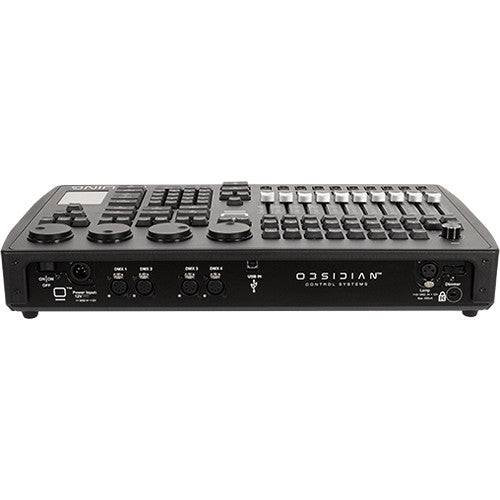

Connectors
4 x 5-Pin XLR Locking, DMX / RDM Universe Input / Output
1 x 5-Pin DIN, MIDI Input
1 x 5-Pin DIN, MIDI Output
1 x 5-Pin DIN, MIDI Thru
1 x 3-Pin XLR, SMPTE Timecode Input
1 x 3-Pin XLR, SMPTE Timecode Output
1 x 4-Pin XLR, Power Supply 12 VDC Input
1 x 4-Pin XLR, Desk Lamp 12 VDC Output
1 x USB Type-B 2.0, Boot Port
1 x USB Type-A, Drive Port
Requirements
Windows 10
Intel Core i3 Processor 6th Generation+
4 GB RAM
2 GB Available Disk Space (SSD Recommended)
Widescreen Monitor, Minimum 1280 Wide, 768 High (Capacitive Multi-Touchscreen Recommended)
USB 2.0 Port
10/100 Ethernet Port for Art-Net DMX Output
100/1000 Ethernet Port for X-Net, Remote Operation and sACN
Power Supply
AC Mains Power to 12 VDC
Power
100-240 V Nominal, 50/60 Hz
Maximum Current: 3 A
Power Output
1 x 12 VDC, 11 A
Power Consumption
132 W Max.
Dimensions
11.9 x 21.3 x 3.9" / 300 x 540 x 99 mm
Weight
10.2 lb / 4.6 kg
Packaging Info
Package Weight
18.48 lb
Box Dimensions (LxWxH)
25.4 x 16.8 x 9.6"
