Elation Lighting

NX TOUCH; 1 UNIVERSE (ONYX Nova+) Touch Controlle

NX TOUCH; 1 UNIVERSE (ONYX Nova+) Touch Controlle

$599.00 USD
$599.00 USD
Sale Sold out

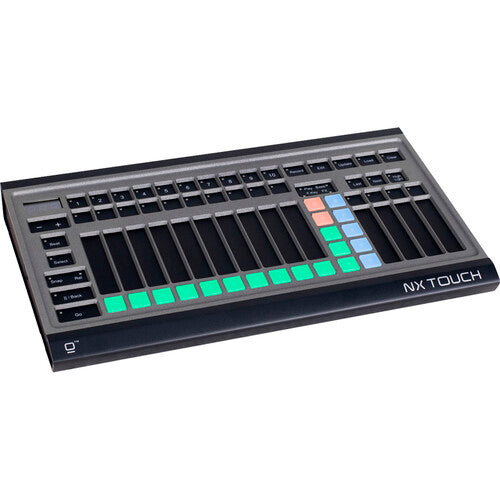

The NX Touch DMX Lighting Controller from Obsidian comes equipped with an ONYX NOVA+ license for playback, programming, and timecode control in one portable interface for applications from small to professional spaces. A single USB-B port connects your NX Touch to a compatible Windows computer for control via PC software and bus power for a plug-and-play setup. One 5-pin locking XLR DMX port can directly control DMX compatible devices via ONYX OS.

The NX Touch features touch fader technology with 14 faders, which control playbacks and fixture parameters of your connected lights. 20 velocity-controlled pads create other visual effects, and additional programming buttons on the panel offer recording, editing, updating, loading, and clearing functions. VESA mounting patterns on the bottom of the device can secure it to a compatible mounting surface.

Features at a Glance
  • ONYX NOVA+ License (4 universes)
  • USB-B powered control surface for professional use in a wide range of applications
  • Combined playback and programming surface with touch fader technology
  • Pressure sensitive flash buttons
  • 10 playbacks, 10 multi-purpose function keys, 4 digital encoders
  • Portable, rugged, and lightweight design
  • USB connection to PC system or as expansion for other ONYX consoles
  • DMX output expandable up to 128 universes
  • Plug-and-play
  • Rackmountable, VESA 75 x 75mm, VESA 100 x 100mm
Control Buttons
  • Bank navigation up/down with numerical display
  • Main Go Section Buttons: Snap, Release, Pause, Go
  • Command Buttons: Record, Edit, Update, Load, Clear
  • Multifunction mode select button
  • Fixture Selection Buttons: Last, Next, Highlight
  • 4 parameter select buttons
  • 4 parameter adjust touch faders
  • 10 function velocity pads
  • 10 playback touch faders with 3 buttons
  • 2 touch pad, 1 velocity pad
General
VESA Mounting
75 x 75 mm
100 x 100 mm
Operating System
Windows 10 64-bit
Windows 11 64-bit
Required Processor
Intel Core i3 6th Generation or later
Minimum RAM
8 GB
Storage Requirements
40 GB
Display Resolution Requirement
1280 x 768

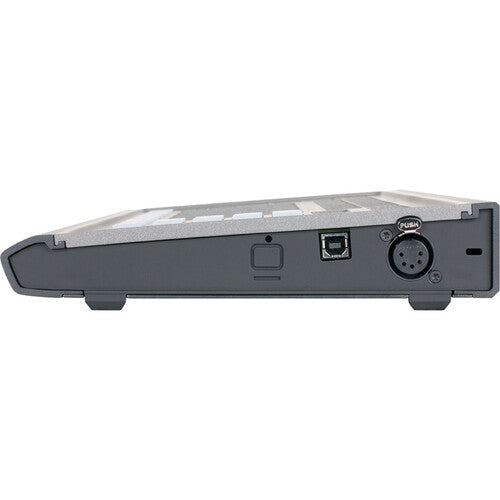

Inputs / Outputs
USB I/O
1 x USB-B 2.0 Female Input
Other I/O
1 x 5-Pin Locking XLR DMX Output
Security Lock Slot
1 x Kensington Lock Slot
Power
Power Source
USB
DC Input Power
5 VDC
Operating Current
500 mA (Maximum)
Environmental
IP Rating
IP20
Operating Temperature
32 to 82°F / 0 to 50°C
Physical
Cable Length
Not Specified by Manufacturer
Dimensions
15.5 x 8.6 x 1.8" / 39.4 x 21.8 x 4.6 cm
Weight
3.3 lb / 1.5 kg
Packaging Info
Package Weight
5.355 lb
Box Dimensions (LxWxH)
18.6 x 12.7 x 4.6"
View full details
