Elation Lighting

NX DMX, 2 UNIVERSE (ONYX Nova) USB to DMX/RDM interface

NX DMX, 2 UNIVERSE (ONYX Nova) USB to DMX/RDM interface

$349.00 USD
$349.00 USD
Sale Sold out

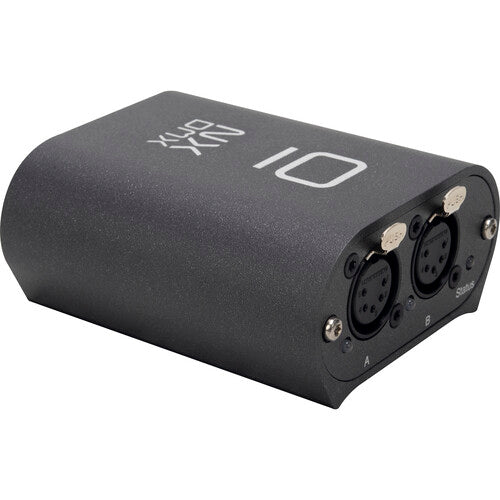

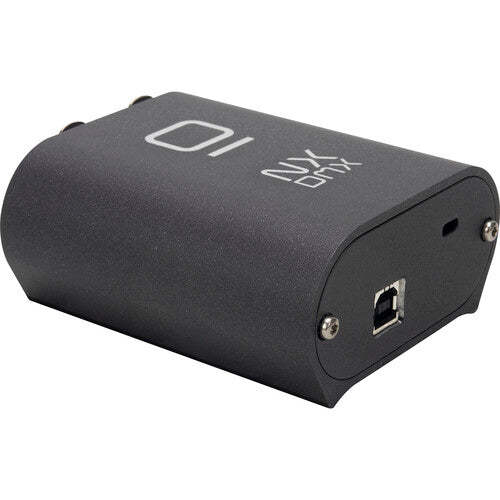

The Obsidian NX 2-Port DMX Node is USB powered. As a member of the innovative ONYX platform from Obsidian Control Systems, the NX DMX provides instant access to DMX in and outputs, as well as RDM communication. The device is plug-and-play and requires no drivers or additional configuration to integrate with ONYX. It is designed to work with any PC but also works with any ONYX console as a fast and affordable way to add two additional DMX ports. The NX DMX enables the ONYX NOVA PC license for up to four universes. When connected to an ONYX licensed PC or ONYX console, the NX DMX is assignable to any one of 255 universes.

The NX DMX allows the full ONYX system to be used in many situations, from small events and tradeshows to clubs and churches. Many technicians utilize ONYX through the NX DMX as an affordable but powerful test station due to ONYX's outstanding library support.

Requirements
  • Windows 10/11 64-bit (home/pro/enterprise)
  • Intel Core i3 processor 6th Generation+ (or other comparable multi-core processors)
  • 8GB RAM
  • SSD storage drive
  • 40GB available disk space for software, DYLOS factory content, and storage
  • Widescreen monitor, minimum 1280 x 768 (capacitive multi-touchscreen recommended)
  • USB 2.0 port for Onyx Key and optional USB to DMX devices
  • 10/100 Ethernet port for Art-Net DMX output
  • 100/1000 Ethernet port for X-Net, remote operation, and sACN
  • NX DMX is also compatible with Elation LightJockey 2 software
Connections
  • Two DMX/RDM universe in/out: 5-pin locking XLR
  • USB in: USB 2.0
Key Specs
Inputs/Outputs
1 x
Power Source
AC Adapter
Protocol
ArtNet, DMX512, RDM
General
Inputs/Outputs
1 x
Cooling System
Passive
Power
Power Source
AC Adapter
AC Input Power
100 to 240 VAC, 50 / 60 Hz at 300 mA
Compatibility
Protocol
ArtNet, DMX512, RDM
Environmental
Environmental Protection
No
Physical
Dimensions
3.6 x 3.2 x 1.6" / 92.0 x 82.0 x 41.0 mm
Weight
0.5 lb / 245 g
Packaging Info
Package Weight
0.965 lb
Box Dimensions (LxWxH)
5.5 x 5.5 x 2.2"
