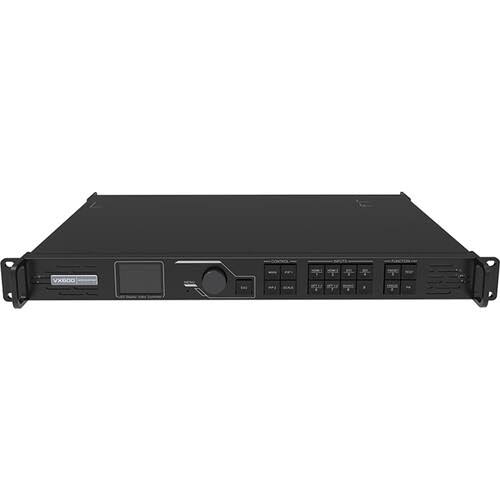

The VX600 is NovaStar’s new all-in-one controller that integrates video processing and video control into one box. It features 6 Ethernet ports and supports video controller, fiber converter and Bypass working modes. A VX600 unit can drive up to 3.9 million pixels, with the maximum output width and height up to 10,240 pixels and 8192 pixels respectively, which is ideal for ultra-wide and ultra-high LED screens.

The VX600 is capable of receiving a variety of video signals and processing high-resolution images. In addition, the device features stepless output scaling, low latency, pixel-level brightness and chroma calibration and more, to present you with an excellent image display experience.

What’s more, the VX600 can work with NovaStar’s supreme software NovaLCT and V-Can to greatly facilitate your infield operations and control, such as screen configuration, Ethernet port backup settings, layer management, preset management and firmware update.

Thanks to its powerful video processing and sending capabilities and other outstanding features, the VX600 can be widely used in applications such as medium and high-end rental, stage control systems and fine-pitch LED screens.

  • Input connectors
    − 1x HDMI 1.3 (IN & LOOP)
    − 1x HDMI 1.3
    − 1x DVI (IN & LOOP)
    − 1x 3G-SDI (IN & LOOP)
    − 1x 10G optical fiber port (OPT1)
  • Output connectors
    − 6x Gigabit Ethernet ports
    A single device unit drives up to 3.9 million pixels, with a maximum width of 10,240 pixels and a maximum height of 8192 pixels.
    − 2x Fiber outputs
    OPT 1 copies the output on 6 Ethernet ports.
    OPT 2 copies or backs up the output on 6 Ethernet ports.
    − 1x HDMI 1.3
    For monitoring or video output
  • Self-adaptive OPT 1 for either video input or sending card output Thanks to the self-adaptive design, OPT 1 can be used as either an input or output connector, depending on its connected device.
  • Audio input and output
    − Audio input accompanied with HDMI input source
    − Audio output via a multifunction card
    − Output volume adjustment supported
  • Low latency
    Reduce the delay from the input to receiving card to 20 lines when the low latency function and Bypass mode are both enabled.
  • 3x layers
    − Adjustable layer size and position
    − Adjustable layer priority
  • Output synchronization
    An internal input source or external Genlock can be used as the sync source to ensure the output images of all cascaded units in sync.
  • Powerful video processing
    − Based on SuperView III image quality
    processing technologies to provide stepless
    output scaling
    − One-click full screen display
    − Free input cropping
  • Easy preset saving and loading
    − Up to 10 user-defined presets supported
    − Load a preset by simply pressing one button
  • Multiple kinds of hot backup
    − Backup between devices
    − Backup between Ethernet ports
    − Backup between input sources
  • Mosaic input source supported
    The mosaic source is composed of two sources
    (2K×1K@60Hz) accessed to the OPT 1.
  • Up to 4 units cascaded for image mosaic
  • Three working modes
    − Video Controller
    − Fiber Converter
    − Bypass
  • All-round color adjustment
    Input source and LED screen color adjustment
    supported, including brightness, contrast,
    saturation, hue and Gamma
  • Pixel level brightness and chroma calibration
    Work with NovaLCT and NovaStar calibration
    software to support brightness and chroma
    calibration on each LED, effectively removing
    color discrepancies and greatly improving LED
    display brightness and chroma consistency,
    allowing for better image quality.

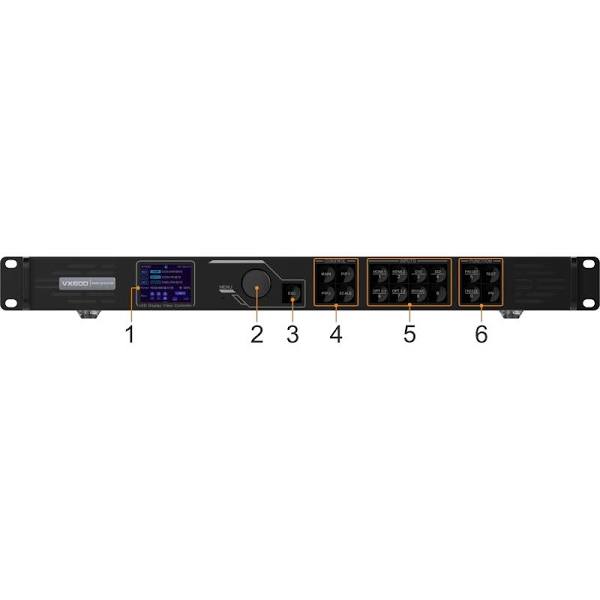

  • Multiple operation modes
    Control the device as you wish via V-Can,
    NovaLCT or device front panel knob and
View full details
