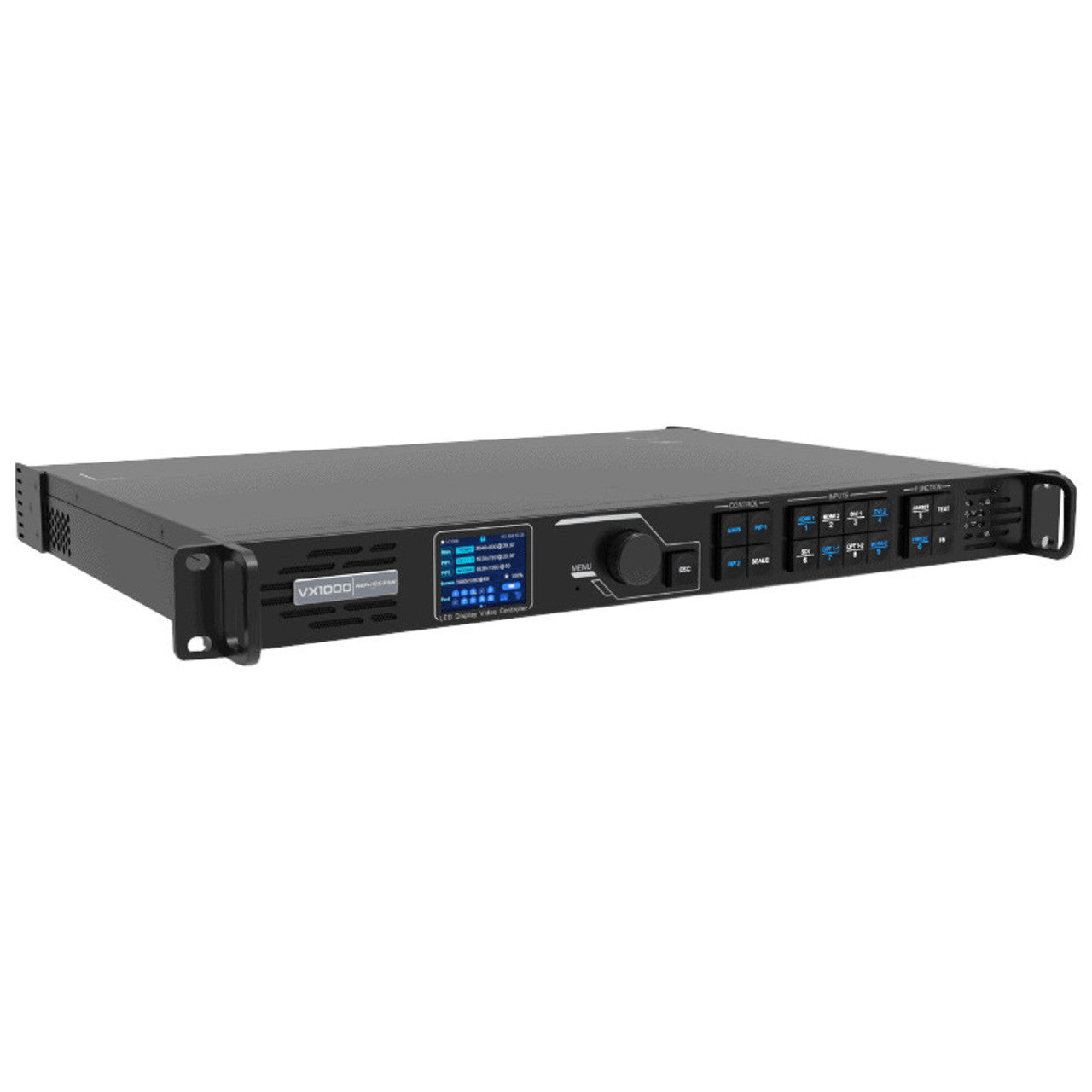

NOVASTAR vx1000

The VX1000 all-in-one controller from NovaStar integrates video processing and video control into one box. The VX1000 can be widely used in applications such as medium and high-end rental, stage control systems and fine-pitch applications.

Novastar VX1000 Features

• 10 Ethernet ports of output provide 6.5 million pixels of loading capacity
• A single unit can output a maximum width of 10,240 pixels, with a maximum height of 8,192 pixels
• 4K x 1K@60Hz high resolution input, 4K x 1K point to point display
• 3 x 4K layers, free scaling for each layer
• Video Controller, ByPass, Fiber Converter, free switching between three modes
• Support for redundant input source, system configuration, ethernet ports, and devices providing total security from start to finish
  • Device ModelVX1000
  • Loading Capacity6.5 million pixels
  • Max Width & Height
    • Max width: 10240 pixels
    • Max height: 8192 pixels
  • Layers3x 4K×1K
  • Input Connectors
    • 1x 3G-SDI
    • 2x HDMI 1.4
    • 2x DVI（HDMI 1.4）
    • 1x OPT1
  • Output Connectors
    • 10x Ethernet Ports
    • 1x HDMI1.3
    • 1x HDMI1.4 LOOP
    • 1x DVI LOOP
    • 1x 3G-SDI LOOP
    • 2x OPT
  • Presets10
  • Control Connectors
    • 1x Ethernet Port
    • 2x USB (input & output)
    • 1x GENLOCK (IN & LOOP)
