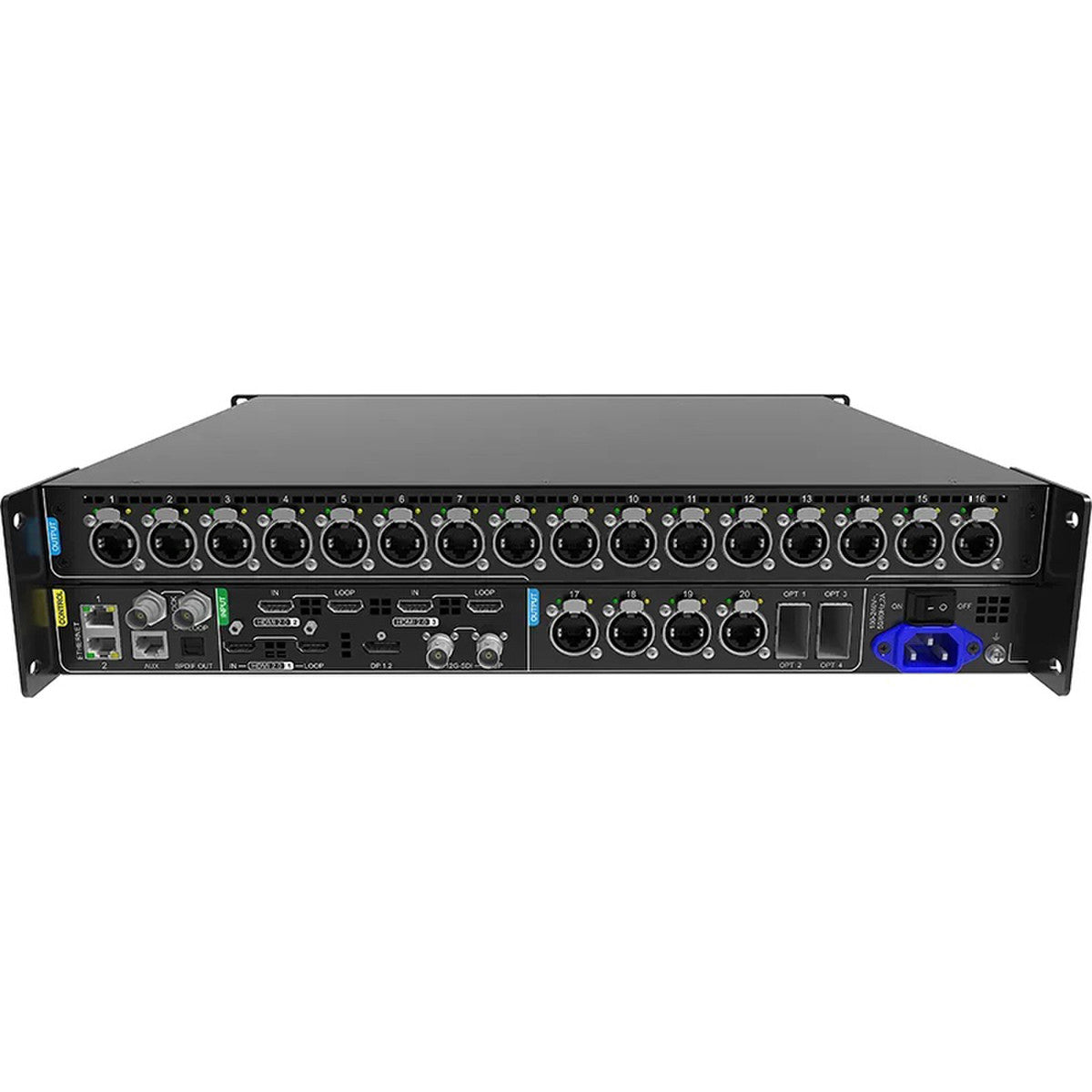

NOVASTAR MX40 PRO

NovaStar MX40 Pro Key Features:

• Large loading capacity of up to 8.8 million pixels
• A perfect fit with NovaStar A10s Pro receiving cards and VMP software
• Controller & processor with color adjustment system

MX Series Controller:

MX40 Pro is a 4K LED display controller from NovaStar™ that offers a variety of input connectors (HDMI 2.0, DP 1.2 and 12G-SDI), 20x Ethernet output ports, plus 4x 10G optical ports for copying output port data. It works great with NovaStar's VMP screen configuration software and A10s Pro receiving cards, which provides users with the ultimate experience.

Packed With Features:

With the MX40 Pro, not only do you get a high-end video controller – but also a powerful processor with a built-in color adjustment system. True 12bit, HDR, high frame rate, and 3D technologies are all at your fingertips. Its color calibration can faithfully reproduce and replace colors, and it offers XR function, LED Image Booster, Dynamic Booster, and more.

Control:

• TFT menu display
• 2x Ethernet ports
• Genlock In + Loop

Power & Current:

• 100-240VAC, 50-60 Hz
• Power consumption: 70W, 2A

Dimensions:

• 3.7" x 18.4" x 19"
• 13lbs

General Specifications:

• Loading capacity: 8.8m pixels
• Max W/H: 10,240 pixels
• XR functions
• LED image booster 2.0 *
• Dynamic booster **
• Full grayscale calibration **
• Low latency  (< 1 ms)
• HDR functions
• * Armor Series receiving card exclusive feature
• ** A10s Pro receiving card exclusive feature

Connectors:
Inputs:

• 3x HDMI 2.0 In + Loop
• 1x DP 1.2
• 1x 12G-SDI In + Loop
• 1x Genlock In + Loop

Outputs:

• 20x Ethernet outputs
• 4x 10G OPT outputs
