NOVASTAR MX20

The MX20 is an HD LED video processor and controller designed to operate NovaStar’s advanced COEX control system. It offers intuitive image processing functions to deliver great image quality along with performance-driven features to meet some of the critical applications with ease of use. MX20 offers robust features including Image Scaling, Low Latency, Adaptive Frame Rate Support, 14 Channel Color Correction & More.

MX20 offers precise control and extensive color calibration functionalities through the all-new VMP control software that provides users with ease of use and simplified operation. It operates on panels equipped with NovaStar’s Armor series receiving cards.

MX20 can support up to 1920×1200 input resolutions in 8-bit and 10-bit modes. It has a 3.9M pixel loading capacity and is equipped with 6x Ethernet output ports + 2x 10G Optical Ports. Inputs include (2x) HDMI-1.3 and 3G SDI with Gen-Lock support.

Key Features:

• Low-Latency Support
• 8-bit & 10-bit modes
• 14-Way Color Correction
• Built-In Scaling (All-in-One Controller Mode)
• Fiber Output Ports
• Display up to 3 input sources layers
• Gen-Lock Support
• High Frame Rate Support – Up to 144Hz
• Adaptive Framerate Support

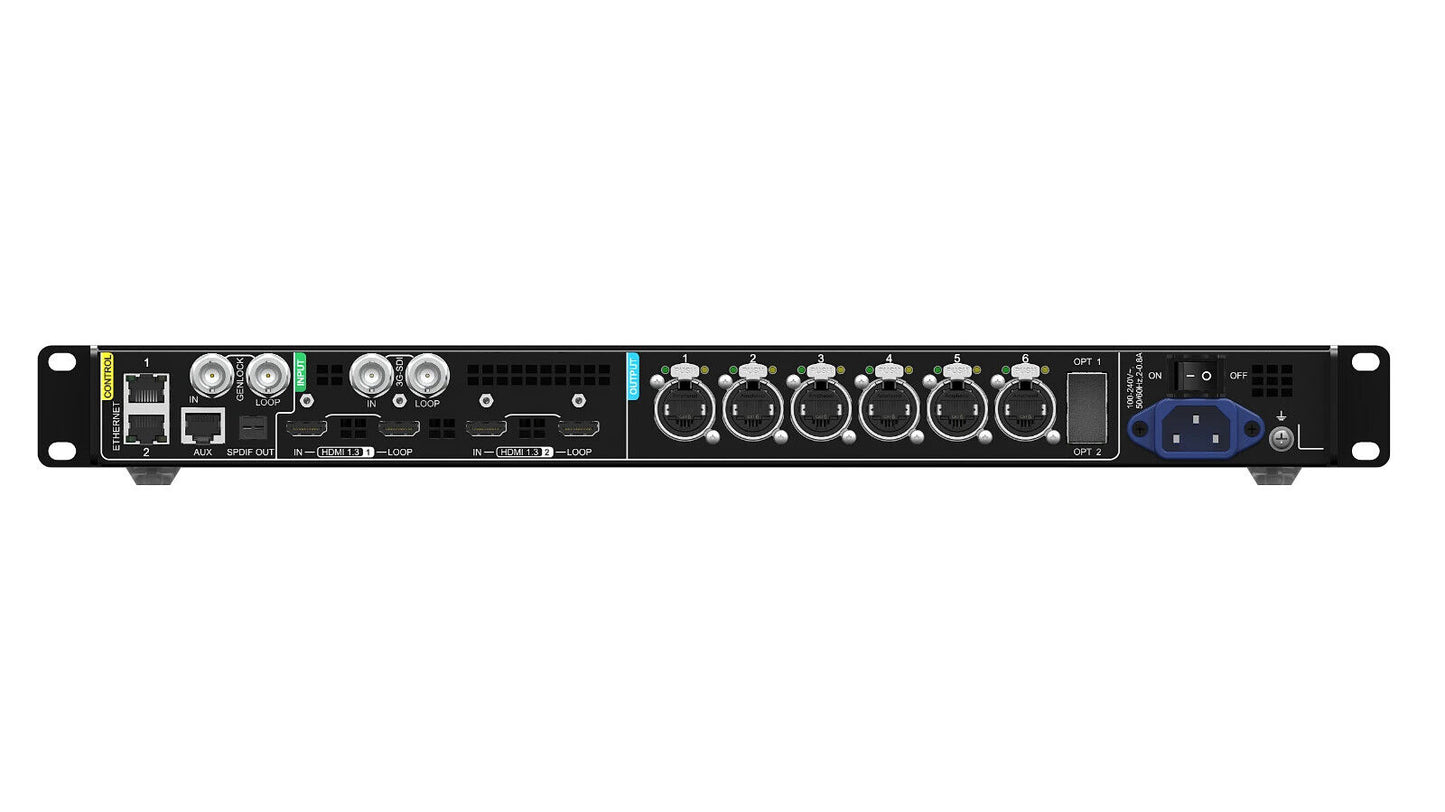

Connectors:

• 6x EtherCon Outputs
• 2x 10G Opt Outputs
• 2x HDMI-1.3 In + Loop
• 1x 3G SDI In + Loop
• 1x Gen-Lock In + Loop
• 2x Ethernet Control Ports
