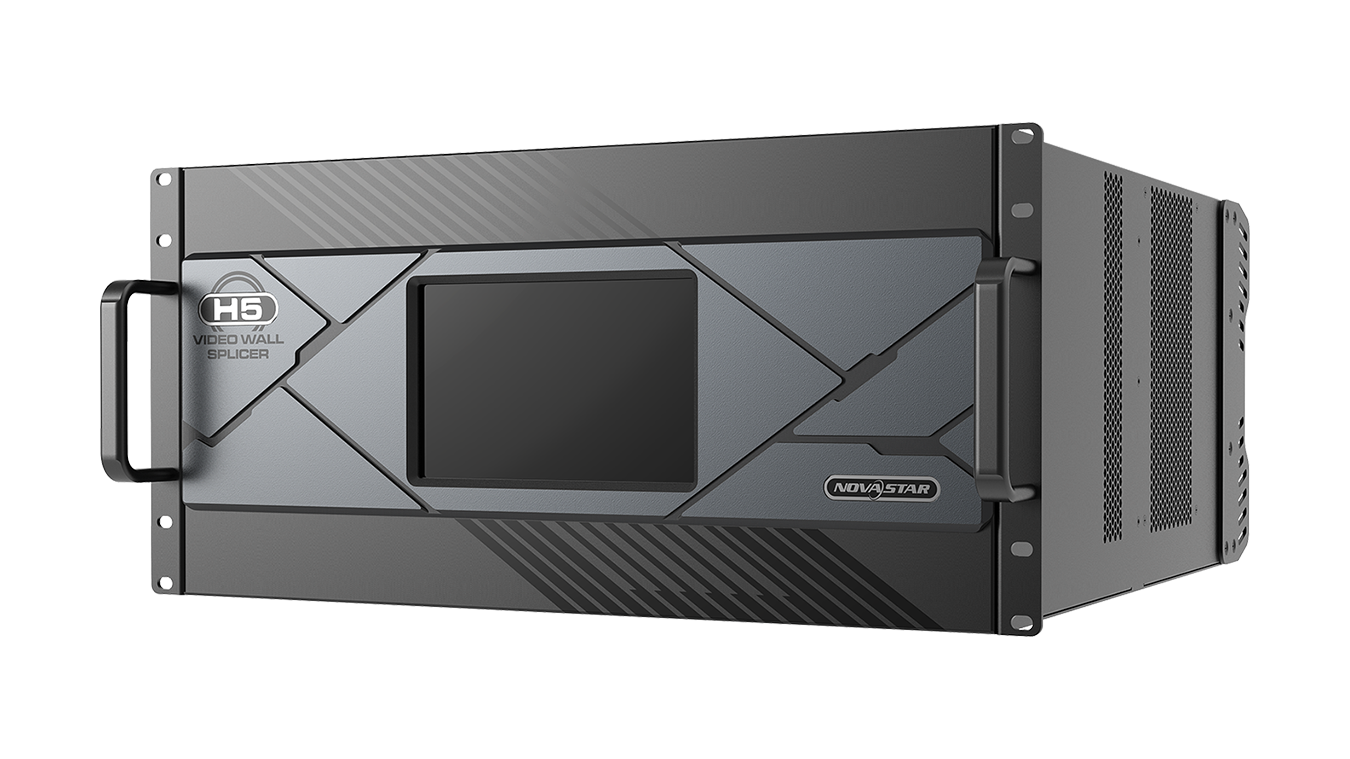

NovaStar H Series H5 Master BUILT

The H5 is part of NovaStar's latest generation of video wall splicers, which feature outstanding image quality and are specifically designed for fine-pitch LED displays. The H5 can operate either as a splicer, integrating both video processing and video control functions, or as a pure splicing processor. The entire unit is modular and pluggable, allowing flexible configuration, as well as "hot-swapping" of input and output boards. Thanks to its excellent features and stable performance, the H5 can be used in a wide range of applications.

THIS PRODUCT INCLUDES THE FOLLOWING CARDS ALREADY INSTALLED

• 1x H_16xRJ45: Manages up to 10.4 million pixels (incl. 2x OPT-Out)
• 1x 1xHDMI2.0 + 1 DP1.2 Input Card
• 1x 4xHDMI INput Card
• 1x Preview card

Technical Specifications

• 5U Chassis
• Max. Input Cards: 10
• Max. Input Channels: 40
• Max. Output cards: 3
• Max. Loading Capacity: 39,000,000 pixels
• Max. Layers: 48

General Specifications

• Supply voltage: 100-240V, 50/60Hz, 10A-5A
• Power consumption: 400 W
• The H5 comes with a single power supply. A redundant power supply is optional.
• Dimensions: 482.6 x 532.8 x 228.2mm (WxDxH)
• Weight: 25 kg
