Elation Lighting

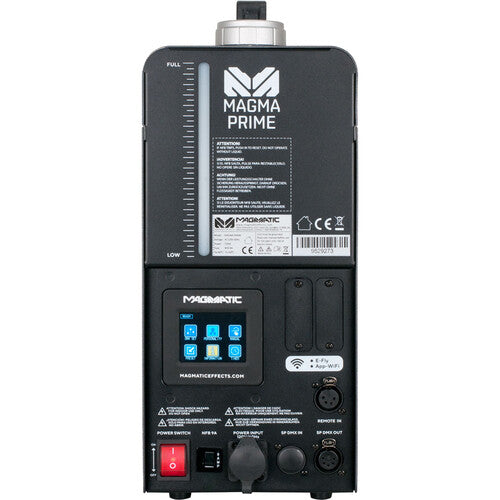

Magma Prime 700W water based hazer

Magma Prime 700W water based hazer

$439.00 USD
$549.00 USD $439.00 USD
Sale Sold out
MAGMA PRIME™ is a water-based fazer with advanced technology providing a high volume dry haze effect with low fluid consumption. The new HPA (high pressure air) pump technology reduces the risk of heater clogging. Features includes an easy to use onboard LCD touch screen control panel, intuitive DMX-512 and RDM control, a durable aluminum housing, and optional wired and wireless remote control options



Features
700W Water-Based Fazer
4,000 CFM* (cu ft/min.) (113 m3/min*) Output
Advanced HPA (high pressure air) Pump Technology
Compact Light Weight Robust Design
Onboard LCD Touch Control Panel
Optional MAGFLY Wireless DMX Transceiver
Optional MAGRF Wireless and Wired Remotes
*Approximate


Guides/ Manuals

DMX/ RDM Traits

Drawings

CAD File

Specifications

PERFORMANCE
Rated Power: 700W
Max Output: 4,000 CFM* (cu ft/min.) (113 m3/min*)
Ready Time: Initial = 6 Minutes*
Fluid Capacity: 0.345 gallons (1.3 liters)
Fluid Consumption: 0.115 oz/min (3.4 ml/min)
*approximate

COMPATIBLE FLUID
Atmosity Extreme Filtered Fog Fluid (AEF-4L)

CONSTRUCTION
Thermally Protected Heat Exchanger
Advanced HPA (high pressure air) Pump Technology
Sealed Fluid Reservoir
External Visual Fluid Level Detection
Compact Light Weight Mobile Design

CONTROL
3 DMX Channel Modes (1 / 3 / 5)
Onboard LCD Touch Control Panel
DMX-512 and RDM Protocol Support
Optional MAGFLY Wireless DMX Transceiver
Optional MAGRF Wireless and Wired Remotes

CONNECTIONS
Locking 5pin XLR Connector In/Out
IP65 Locking Power Connector In
With Wired Digital Communication Network

SIZE / WEIGHT
Length: 13.3 in. (338mm)
Width: 6.30 in. (160mm)
Height: 15.70 in. (400mm)
Weight: 22.48 lbs. (10.2kg)

ELECTRICAL
AC120V 60Hz (US Version)
AC230V 50Hz (EU Version)
9A @ 120VAC(NFB)
5A @ 230VAC - 240VAC
Max Power Consumption: 720W

THERMAL
Maximum Ambient Temperature (Ta max) 104°F (40°C)
Exterior Surface Temperature, Steady State: 122°F (50°C)

APPROVALS / RATINGS
CE | cETLus | FCC | IP20
