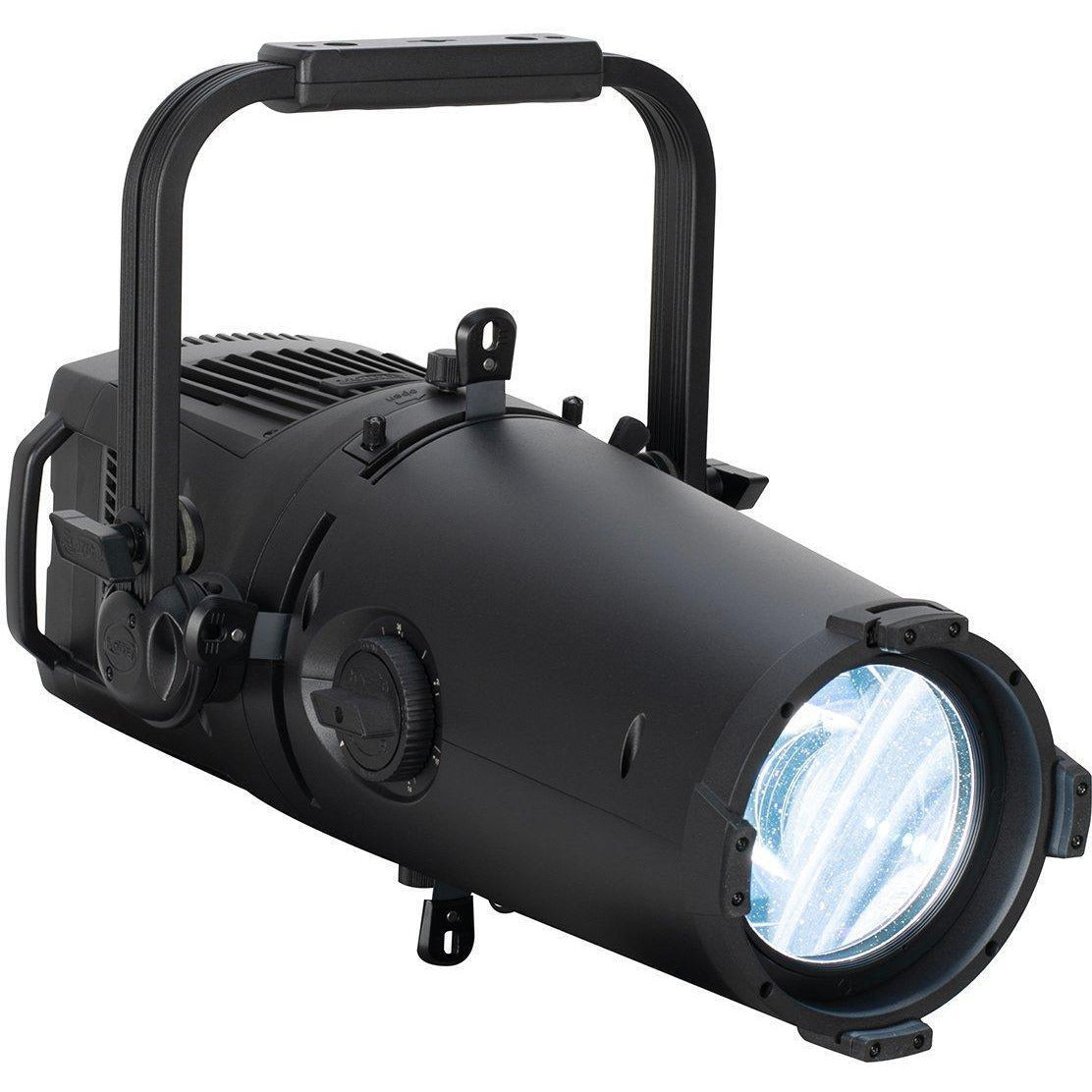

KL Profile FC WH; 305W FULL COLOR SPECTRUM LED PROFILE White Case

The Elation Professional KL PROFILE FC is a manual LED framing fixture designed for a wide array of precision lighting applications. With an integrated manual zoom range of 6 to 50 degrees, the fixture requires no additional lens tubes, reducing cost, complexity and providing excellent flexibility for any theater, performance venue, or show. The integrated manual Iris allows further beam control.

The 92 CRI engine utilizes a 5-color homogenized LED array consisting of Red, Green, Blue, Mint, and Amber sources with a power of 305W. The carefully tuned LEDs ensure accurate color reproduction while delivering a powerful output of over 10,000 lumens. Virtual color temperature, Magenta / Green adjustment provides the designer with immediate access to the impressive LED color array. Exceptionally quiet, the fixture offers enhanced fan controls down to Elation's Mute Mode which disables the internal cooling fan.

The gobo slot is easily accessible from the top of the fixture. The optional Fresnel Lens Conversion Kit allows to utilize the fixture as a framing wash fixture while providing a uniform appearance and fixture spacing.

• Compact Zooming Ellipsoidal
• Extended Color RGBMA LED Engine, 92 CRI
• Exceeding 10.000 lumens
• Integrated Rotating Gobo Slot
• Full Blackout Manual Framing System
• Wide Zoom Range from 6° to 50°
• 7.5" Front Accessory Holder
• Includes 7.5" Gel Frame
• Designer Gobo set with 10 high-resolution glass gobos
• Optional Fresnel Wash Lens Conversion Kit

• Control / Connections - 8 DMX Channel Modes (1/5/12/21) CMY(10/17) RGB(10/17); DMX Adjustable LED Frequency; DMX, RDM Protocol Support; 4 Button Touch Control Panel; Encoder Control for Standalone Operation; Full Color 180° Reversible LCD Menu Display; 5pin DMX In/Out; IP65 Locking Power In/Out; Elation's E-FLY Internal Wireless DMX Transceiver;

• Height (Fixture Body): 10.98" (279mm)
• Height (Yoke 90°): 18.35" (466mm)
• Dimension (LxWxH): 25.11 x 15.35 x 10.98" (638 x 390 x 279mm)
• Weight: 49 lbs
