Elation Lighting



Regular price $2,000.00 USD
Regular price $2,500.00 USD Sale price $2,000.00 USD
Sale Sold out

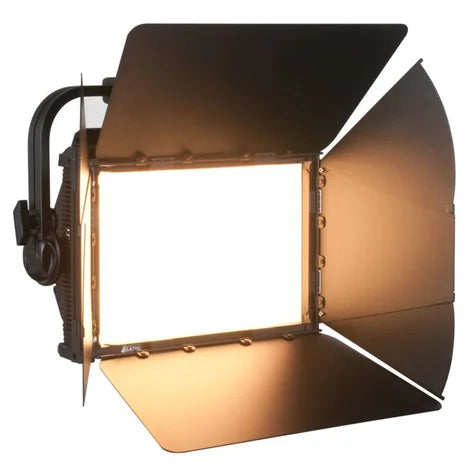

This full-color-spectrum LED soft light from Elation is the KL Panel. Providing high output, precise color rendering and even washes, the KL Panel is optimized for the tunable white light requirements of film and TV although it is an ideal light source for many situations requiring outstanding performance and color quality. A highly efficient 6-in-1 LED package that produces over 16,000 field lumens, this LED soft light is compact and portable plus fully self-contained without the need for external power supplies. Mount the KL Panel on stands or suspend it using the included Junior pin or any regular clamp. Plus, multiple protocol and control options, including direct control, remote DMX, Ethernet connections, as well as Elation’s E-FLY™ wireless system, provide fast and efficient operation in any situation and allow for flexibility of use.

Elation KL Panel Features:

  • 295 W RGBWLC (Red, Green, Blue, White, Lime, Cyan) LED Array
  • CRI 95, CCT Adjustment from 2,000 to 10,000 K
  • 16,000 Total Lumen Fixture Output
  • Internal Power Supply with Power Pass-Through
  • 24-36 VDC Battery Operation (battery not included)
  • DMX, RDM, Art-NET, and sACN Protocol Support
  • E-FLY™ Internal Extended Range Wireless DMX Transceiver
  • Stand-Alone Control with 3 Encoders and an OLED Display
  • Barn Doors, Diffuser, and Junior Pin (1 1/8” - 28mm) Included

Elation KL Panel Specifications:

  • Light Source:
    • 6-in-1 (Red, Green, Blue, White, Lime, Cyan) LED Array
    • Average LED Life: 50,000 Hours*
      • *Test lab conditions. May vary depending on several factors.
    • Total Fixture Output: 16,000 Lumen
    • Beam Angle: 64° (with diffuser)
  • Effects:
    • Variable CCT: 2,000 K-10,000 K
    • Green Shift Adjustment: Yes
    • Virtual Gel Library: Yes
    • Dimming Curve Modes: Variable 16-bit
    • High Speed Electronic Shutter and Strobe: Yes
    • Remote Adjustable LED Refresh Rate Frequency: 900-25kHZ
  • Control:
    • DMX Channel Modes: 9
    • Manual Adjustment Encoders: 3
    • Display: OLED Menu with 4 Button Control Panel
    • Protocol:
      • DMX
      • RDM
      • Art-NET
      • sACN
    • E-FLY™ Internal Extended Range Wireless DMX Transceiver: Yes

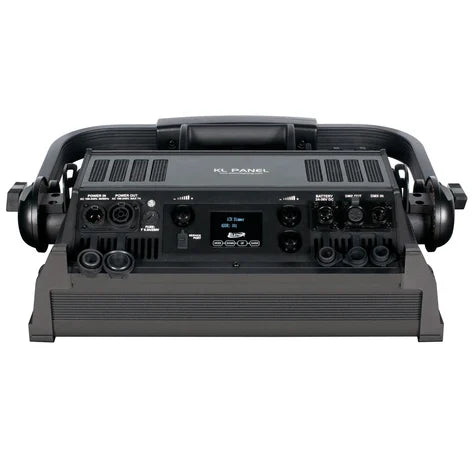

  • Connections:
    • Locking 5pin XLR Connector In/Out
    • Locking IP65 Power Connector In/Out
    • USB Connection for Firmware Updates
    • 4-pin XLR External Battery Connection (battery NOT included)
    • Wired Digital Communication Network
  • Size/Weight:
    • Dimensions (LxWxH): 20.8” x 5.5” x 16.3” (528 x 140.5 x 415.2 mm)
    • Weight: 28.6 lbs (13 kg)
  • Electrical/Thermal:
    • AC: 100-240V - 50/60Hz
    • Battery: 24-36 VDC (battery NOT included)
    • Max Power Consumption: 295 W
    • Operating Temp.: 14°F to 113°F (-10°C to 45°C)
  • Approvals/Ratings:
    • CE
    • cETLus (pending)
    • IP20
