Elation Lighting

Javelin; 34x3W RGBA LED 1500W vertical fogger

Javelin; 34x3W RGBA LED 1500W vertical fogger

$679.00 USD
$849.00 USD $679.00 USD
Sale Sold out

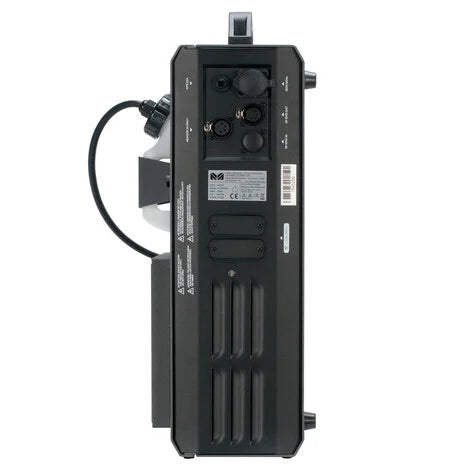

A member of MAGMATIC'S Rocket series of CO2 cryogenic simulation effects, the MAGMATIC JAVELIN™ is a high-velocity CO2 simulator fog machine for high-impact moments. Featuring 34 x 2-watt RGBA LEDs for throws of dynamic colored effect, the JAVELIN can rotate 90-degrees for horizontal or vertical bursts of fog. Wrapped in a durable aluminum housing, the JAVELIN is intuitively controllable via DMX-512 and RDM and houses an easy-to-use onboard LCD touch screen control panel. Wired and wireless remote control options are available.

Specifications



PERFORMANCE
  • Rated Power: 1450W
  • Max Output: 50,000 CFM* (cu ft/min.)
  • Fog Burst (Distance): 5-6m / 3 sec.
  • Ready Time: Initial = 9 Minutes*
  • Fluid Capacity: 0.66 gallons (2.5 liters)
  • Fluid Consumption: 6.09 oz/min (180 ml/min) *approximate
  • Max Continuous Output Duration: 8 Seconds

COMPATIBLE FLUID
  • Atmosity Flash Fog Fluid (AFF-4L)
  • Atmosity Extreme Filtered Fog Fluid (AEF-4L)



CONSTRUCTION
  • Thermally Protected Heat Exchanger
  • Advanced HPA (high pressure air) Pump Technology
  • Energy Saving Mode with Auto-Clean Process
  • Sealed Fluid Reservoir
  • External Visual Fluid Level Detection
  • Compact Light Weight Mobile Design



CONTROL
  • 4 DMX Channel Modes (1 / 4 / 7 / 12)
  • Onboard LCD Touch Control Panel
  • DMX-512 and RDM Protocol Support
  • Optional MagFLY Wireless Module (See Accessories)
  • Optional RF Wireless Module and Remote (See Accessories)
  • MagAPP Card "Still in development"

CONNECTIONS
  • Locking 5pin XLR Connector In/Out
  • IP65 Locking Power Connector In
  • With Wired Digital Communication Network

SIZE / WEIGHT
  • Length: 15.0 in. (380mm)
  • Width: 7.7 in. (195mm)
  • Height: 19.1 in. (484mm)
  • Weight: 28.66 lbs. (13kg)

ELECTRICAL
  • AC 120V 60Hz, 230V 50Hz
  • NFB: 20A (120V Version) 10A (230/240V Version)
  • Max Power Consumption: 1500W

THERMAL
  • Maximum Ambient Temperature (Ta max) 104°F (40°C)
  • Exterior Surface Temperature, Steady State: 140°F (60°C)

ACCESSORIES
  • MagFLY (MSR934) Wireless DMX Transceiver Module
  • MagRF (MSR912) RF Module and Wireless Remote
  • Omega Rigging Bracket x2 (SY2504F-B20)

APPROVALS / RATINGS
  • CE | cETLus  | IP20

Specifications and documentation subject to change without notice.
