Fuze Wash FR; 480W RGBMA Full Color Spectrum LED Wash + Framing

Fuze Wash FR; 480W RGBMA Full Color Spectrum LED Wash + Framing

$4,396.00 USD
$5,495.00 USD $4,396.00 USD
Sale Sold out

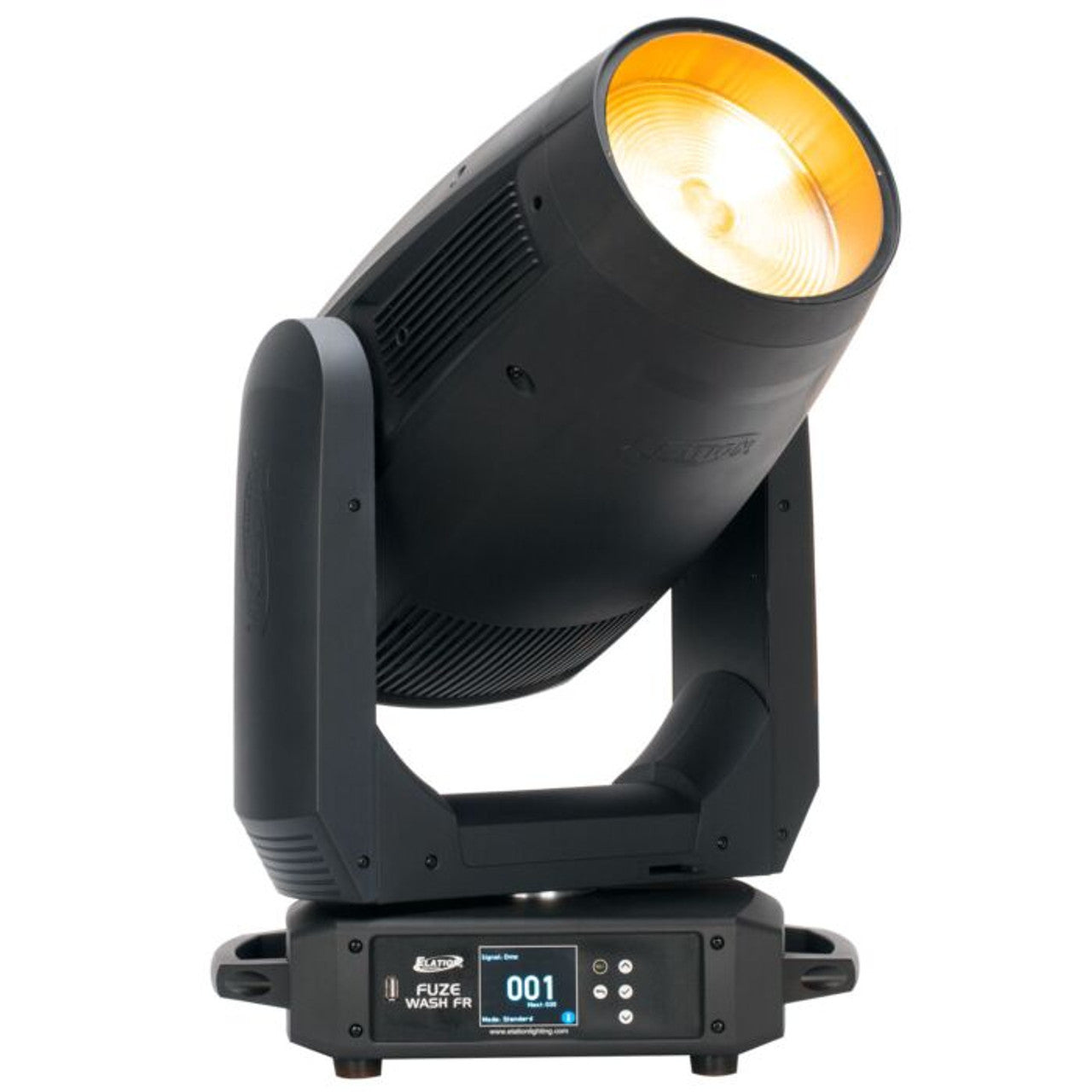

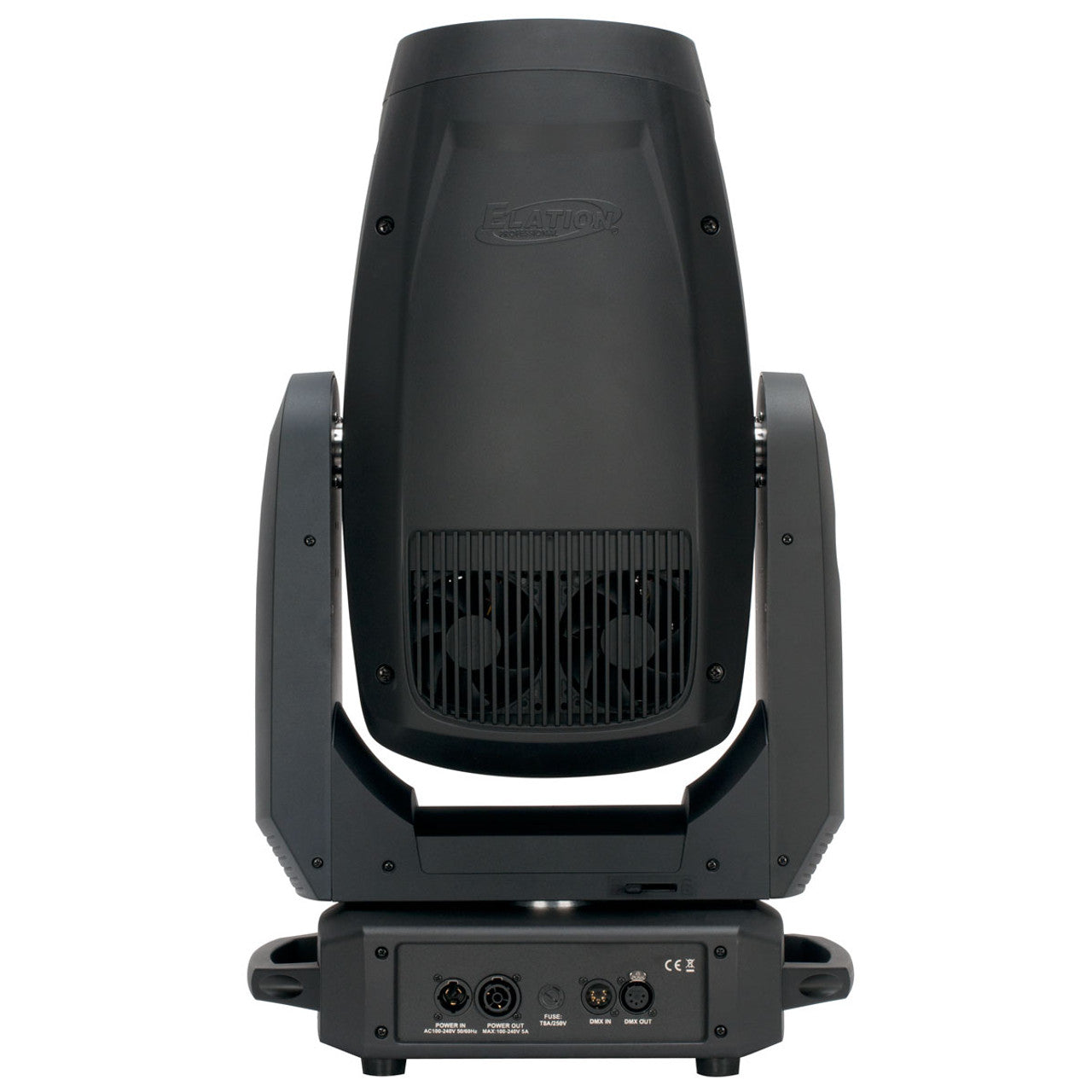

The FUZE WASH FR is an automated LED Fresnel wash fixture designed for theater, television, events and a wide array of other precision lighting applications. A High-CRI engine utilizes a 5-color homogenized LED array consisting of Red, Green, Blue, Mint, and Amber sources. The carefully tuned LEDs ensure accurate color reproduction while delivering a powerful output of up to 15,000 lumens and maximum CRI of 92. Virtual color temperature, Magenta / Green adjustment plus CMY emulation provide the designer with immediate access to the impressive LED color array.

The FUZE WASH FR is designed for any application where an automated Fresnel fixture with outstanding and impactful colors, a wide zoom range and framing beam control with a soft field is required.

Features

  • 480W Full Spectrum RGBMA LED Engine
  • Up to 15,000 Total Lumen Fixture Output @ 6,500K
  • CRI up to 92
  • Internal 4-Blade Framing Module
  • Variable Frost and Iris for advanced beam control
  • Wide Zoom Range from 9° to 60°
  • Variable 16-bit Dimming Curve Modes
  • CMY Emulation
  • Virtual Color Correction
  • Green/Magenta Shift
  • Virtual Gel Swatch Book

Specifications

SOURCE

  • 480W 6,500K RGBMA (Red, Green, Blue, Mint, Amber) LED Engine
  • 30,000 Hour Average LED Life*

*Test lab conditions. May vary depending on several factors including but not limited to:

Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA

  • 15,000 Total Lumen Fixture Output
  • CRI 92
  • Zoom Range 9° - 60°
  • Beam Angle 8.2° - 50.3°
  • Field Angle 13° - 62.4°

EFFECTS

  • Motorized Zoom
  • 4 Rotating Full Blackout Framing Blades, +/- 60 Index
  • Variable Frost Filter
  • Iris
  • Variable 16-bit Dimming Curve Modes
  • High Speed Electronic Shutter and Strobe

COLOR

  • RGBMA Color Array
  • CMY Emulation
  • Virtual Color Correction
  • Green/Magenta Shift
  • Virtual Gel Swatch Book

CONTROL / CONNECTIONS

  • 4 DMX Channel Modes (RGBMA 29 / 47) (CMY 27 / 43)
  • 16-bit Pan, Tilt, and Dimming Control
  • DMX Adjustable LED Frequency
  • DMX, RDM Protocol Support
  • 4 Button Touch Control Panel
  • Full Color 180° Reversible LCD Menu Display
  • Locking 5pin XLR Connector In/Out
  • Locking IP65 Power Connector Power In/Out
  • USB Connection (Firmware Updates)
  • With Wired Digital Communication Network

SIZE / WEIGHT

  • Length: 16.06" (408mm)
  • Width: 10.08" (256mm)
  • Vertical Height: 26.74" (679mm)
  • Weight: 62 lbs. (28.1kg)

ELECTRICAL / THERMAL

  • AC 100-240V - 50/60Hz
  • Max Power Consumption 631W
  • 14°F to 113°F (-10°C to 45°C)
  • BTU/hr (+/- 10%) 2151.71
