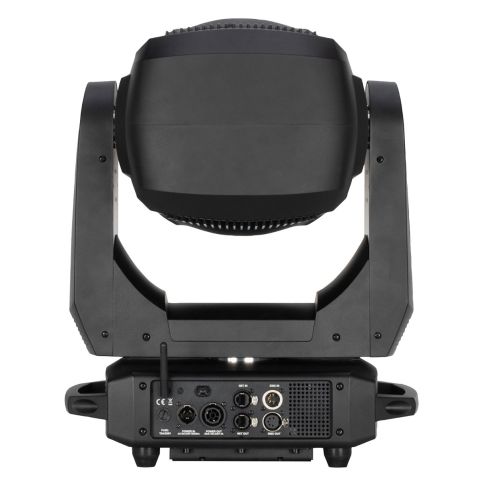

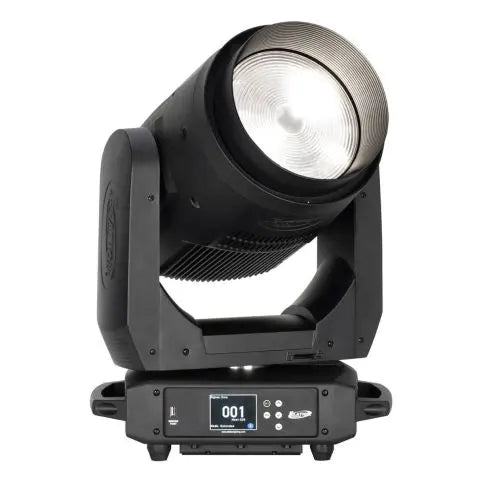

Fuze Wash 500; 500W RGBMA COB Wash w/ Zoom

The FUZE WASH 500 is an automated LED Fresnel wash fixture that is perfect for a variety of precision lighting applications such as theater, television, events, and more. It features a high CRI engine that uses a 5-color homogenized LED array composed of red, green, blue, mint, and amber sources, which ensures accurate color reproduction and can deliver a powerful output of up to 17,000 lumens with a maximum CRI of 92. The fixture also comes with virtual color temperature, magenta / green adjustment, and CMY emulation, providing immediate access to an impressive LED color array. This fixture is perfect for any situation that requires an automated Fresnel fixture with impactful colors, a wide zoom range, and a soft field. Additionally, an optional indexable ovalizer lens is available for further beam control (sold separately).

Elation FUZE WASH 500 Includes:

• FUZE WASH 500 LED Moving Head Fresnel
• 2 Omega Brackets
• Locking Power Cable
• Snoot with screws

Elation FUZE WASH 500 Features:

• 500W Full Spectrum RGBMA LED Engine
• Up to 17,000 Total Lumen Fixture Output @ 6,500K
• CRI up to 92
• Wide Zoom Range from 10° to 45°
• Variable 16-bit Dimming Curve Modes
• CMY Emulation
• Virtual Color Correction
• Green/Magenta Shift
• Virtual Gel Swatch Book

Elation FUZE WASH 500 Specifications:

• Source
  • LED Engine: 500W 6,500K RGBMA (Red, Green, Blue, Mint, Amber)
  • Average LED Life: 30,000 Hours
• Photometric Data
  • Total Lumen Fixture Output: 17,000
  • CRI: 92
  • Zoom Range: 10° - 45°
• Effects
  • Motorized Zoom
  • Optional Indexable Ovalizer Lens (sold separately)
  • Variable 16-bit Dimming Curve Modes
  • High Speed Electronic Shutter and Strobe
• Color
  • RGBMA Color Array
  • CMY Emulation
  • Virtual Color Correction: 2400K - 8500K
  • Green/Magenta Shift
  • Virtual Gel Swatch Book
• Control/Connections
  • DMX Channel Modes: 4 (RGBMA 21/ 28) (CMY 19 / 24)
  • Pan, Tilt, and Dimming Control: 16-bit
  • DMX Adjustable LED Frequency
  • Protocol Support: DMX, RDM, E-FLY Wireless, Art-Net, sACN
  • Control Panel: 4 Button Touch
  • Menu Display: Full Color 180° Reversible LCD
  • XLR Connector In/Out: Locking 5pin
  • Ethernet Connector In/Out: Locking RJ45
  • Power Connector In/Out: Locking IP65
  • USB Connection: for Firmware Updates
• Electrical/Thermal
  • AC 100-240V - 50/60Hz
  • Max Power Consumption: 609W
  • 14°F to 113°F (-10°C to 45°C)
  • BTU/hr (+/- 10%): 2151.71
• Approvals/Ratings
  • CE, cETLus
  • IP Rating: IP20
• Physical
  • Length: 16.06" (408 mm)
  • Width: 10.07" (256 mm)
  • Vertical Height: 21.7" (550 mm)
  • Weight: 40.8 lbs (18.5 kg)
