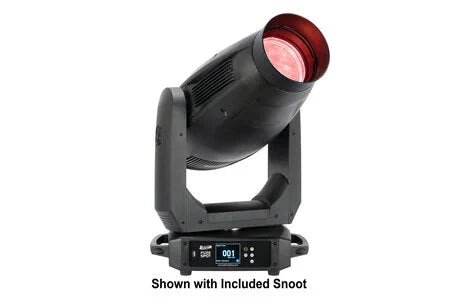

Fuze Spot; 305W RGBMA Full Color Spectrum LED Spot

From theater to television and many other precision lighting applications, the FUZE SPOT™ from Elation is an automated LED spot fixture that brings focus to your displays. Powered by a 92 CRI with a 5-color homogenized LED array (Red, Green, Blue, Mint, and Amber sources), accurate color reproduction is delivered by 9,000+ lumen output. Illuminate immediately and impressively, designers can explore the virtual color temperature, Magenta / Green adjustment plus color gel emulation included in the FUZE SPOT.

Features

• Extended color RGBMA LED Engine, 92 CRI
• Dual Rotating Gobos plus Animation Wheel
• Wide zoom range from 7° to 46°

Specifications

• Source:
  • 305W 6,500K RGBMA LED Engine, 92 CRI
  • 30,000 Hour Average LED Life*
  • *May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling),Control, and Dimming.
• Photometric Data: 9,000+ Total Lumen Output
• Effects:
  • 7° - 46° Motorized Zoom
  • Variable Frost Filter
  • 4 Facet Prism
  • Motorized Iris
  • Variable 16-bit Dimming Curve Modes
  • High Speed Electronic Shutter and Strobe
• Color:
  • RGBMA Color Array
  • CMY Emulation
  • Virtual Color Correction
  • Green/Magenta Shift
  • Virtual Gel Swatch Book
• Gobos:
  • 2x 6 Rotating / Indexing Interchangeable Glass Gobos
  • Animation Wheel
• Control/Connections:
  • 2 DMX Channel Modes
  • 16-bit Pan, Tilt, and Dimming Control
  • DMX Adjustable LED Frequency
  • DMX, RDM Protocol Support
  • 4 Button Touch Control Panel
  • Full Color 180° Reversible LCD Menu Display
  • 5pin DMX In/Out
  • Neutrik powerCON TRUE1 Power In/Out
  • With Wired Digital Communication Network
  • Approvals/Ratings: CE | cETLus pending | IP20
• Electrical/Thermal:
  • AC 100-240V - 50/60Hz
  • 440W Max Power Consumption
  • 14°F to 113°F (-10°C to 45°C)
• Dimensions: 16" x 10.1" x 27.4"
• Weight: 46.3 lbs.

Note

Specifications and Images are preliminary per vendor (Spring 2019). Please contact your Full Compass Sales Pro for assistance with any questions!
