Elation Lighting

Fuze Profile CW; 380W LED Profile w/ 2xColor Wheels + Framing

Fuze Profile CW; 380W LED Profile w/ 2xColor Wheels + Framing

Regular price $3,996.00 USD
Regular price $4,995.00 USD Sale price $3,996.00 USD
Sale Sold out

Product Overview

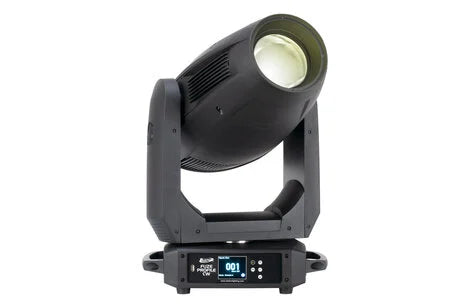

From trade shows and television, to stages and AV events, the FUZE PROFILE CW™ from Elation is an automated LED framing fixture that brings your displays to life. Powered by a 91 CRI, 380 Watt LED Engine, accurate color reproduction is delivered by the high powered 13,000 lumen output. Illuminate exhibits, banners, texture areas, and key persons with the FUZE PROFILE CW's flat field and accurate framing, keeping focus crisp wherever fully automated ellipsoidal illumination is required. FUZE PROFILE CW also features a rotating gobo wheel of breakups, two color wheels featuring solid colors and correction filters plus and Iris.

Features

  • High Efficiency 380W White LED Engine, 91CRI
  • Dual Color Wheel (Solids and Color Corrections)
  • Rotating Gobo Wheel
  • Full Blackout Framing System
  • Wide Zoom Range from 7° to 46°

Specifications

  • Source:
    • 380W 6,000K White LED Engine, 91CRI
    • 30,000 Hour Average LED Life*
    • *May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling),Control, and Dimming.
  • Photometric Data: 13,000 Total Lumen Output
  • Effects:
    • 7° - 46° Motorized Zoom
    • 4 Rotating Full Blackout Framing Blades, +/- 45 Index
    • Variable Frost Filter
    • Motorized Iris
    • Variable 16-bit Dimming Curve Modes
    • High Speed Electronic Shutter and Strobe
    • Adjustable LED Refresh Rate Frequency
  • Color:
    • 2 Color Wheels
    • 7x Solid Colors
    • 7x Color Correction and UV
  • Gobos:
    • 1 Gobo Wheel
    • 7 Rotating / Indexing Interchangeable Glass Gobos
  • Control/Connections:
    • 2 DMX Channel Modes
    • 16-bit Pan, Tilt, and Dimming Control
    • Motorized Focus
    • DMX, RDM Protocol Support
    • 4 Button Touch Control Panel
    • Full Color 180° Reversible LCD Menu Display
    • 16 Bit Resolution Adjustable Movement
    • Hibernation Mode (Power Save)

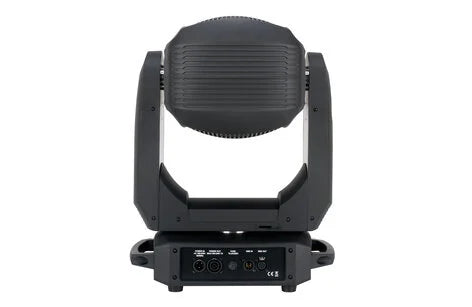

    • 5pin DMX In/Out
    • Neutrik powerCON TRUE1 Power In/Out
    • With Wired Digital Communication Network
  • Electrical/Thermal:
    • AC 100-240V - 50/60Hz
    • 590W Max Power Consumption
    • 14°F to 113°F (-10°C to 45°C)
  • Approvals/Ratings: CE | cETLus pending | IP20
  • Dimensions: 15.9" x 9.9" x 27.4"
  • Weight: 51.4 lbs.

Note

Specifications and Images are preliminary per vendor (Spring 2019). Please contact your Full Compass Sales Pro for assistance with any questions!
