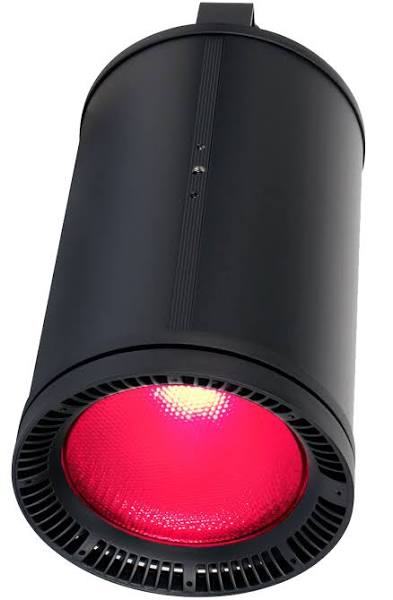

Fuze Pendant; 230W RGBWL LED Pendant w/ efly

The FUZE PENDANT WH is a versatile lighting solution suitable for a wide range of house and area lighting applications. It provides powerful illumination with crisp whites and a high CRI, as well as subtle pastels and powerful pure colors, thanks to its 16-bit dimming capabilities. With a maximum output of 11,000 lumens, this pendant light is well-suited for large areas and high-ceiling applications, while its compact size allows it to be adapted for use in smaller spaces. In addition, it operates silently and has a long maintenance-free product life since it is convection cooled and has no fans or other moving parts. With a variety of lens options available, including 45° (included), 25°, 40°, 50, or 100° (sold separately), the FUZE PENDANT WH allows for precise light distribution. Its industry-standard power and DMX connections, along with included terminal block connections for power, emergency battery input, and 0-10V control, make it a flexible and adaptable solution for multiple permanent or temporary installation requirements with a single product design.

Elation FUZE PENDANT WH Applications:

House Lighting

Area Lighting

Elation FUZE PENDANT WH Includes:

• FUZE PENDANT WH LED Pendant
• 45° Lens
• Pendant Bracket Kit
• Locking IP65 Power Cable

Elation FUZE PENDANT WH Features:

• Full Spectrum 230W 5in1 LED Array
• 2400 - 8500K Color Temperature
• CRI 90 @ 3,200K
• 11,000 Total Lumen Fixture Output
• 45° Lens Included
• Optional 25°, 40°, 50° and 100° Lenses Available (sold separately)
• Compact Fanless Design
• DMX, RDM, 0-10V and E-FLY Wireless Support
• 48V Emergency Battery Input
• Bare Wire Block Terminal Connections included
• Pendant Bracket included

Elation FUZE PENDANT WH Specifications:

• Source
  • LED Array: 230W 5-in-1 RGBWL (Red, Green, Blue, White, Lime)
  • Average LED Life: 50,000 Hours
• Photometric Data
  • Total Fixture Output: 11,000 Lumen
  • CRI: 90 @ 3,200K
  • Included Lens: 45°
• Effects
  • Variable CCT: 2400K - 8500K
  • Virtual Color Swatch Book
  • Dimmer, Dimmer Color, RGBWL, RGBWL 16-Bit, Standard, Extended, HSI & HSI Extended Control Options
  • Dimming Curves: Variable 16-bit
  • High Speed Electronic Shutter and Strobe
  • DMX and Menu adjustable LED Refresh Rate Frequency
• Control
  • DMX Channel Modes: 8
  • Standalone and Primary, Secondary Modes
  • RDM (Remote Device Management)
  • Dimming: 0-10V (Current-Sink)
  • E-FLY™ Internal Extended Range Wireless DMX Transceiver
  • 4 Button Control Panel and OLED Menu Display

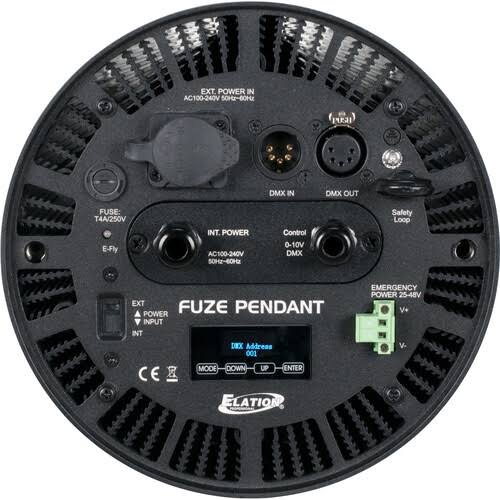

• Connections
  • XLR Connector In/Out: Locking 5pin
  • Power Connector In: Locking IP65
  • 3pin Wire Terminal Block: 12-24 AWG (4.0 - 0.25 mm2)
  • 5pin Wire Terminal Block: for 0-10V, DMX (24AWG / 0.25 mm2)
  • 2pin Wire Terminal Block: for 48V Emergency Battery Input (24AWG / 0.25 mm2)
• Electrical/Thermal
  • AC 100-240V - 50/60Hz
  • Max Power Consumption: 230W
  • Operating Temp.: 14°F to 113°F (-10°C to 45°C)
• Approvals/Ratings
  • CE, cETLus (pending), FCC
  • IP Rating: IP20
• Physical
  • Length: 12.5" (318 mm)
  • Diameter: 7.8" (197 mm)
  • Weight: 15.8lbs (7.2 kg)
