EN4 X 5PIN XLR PORT TO DMX NODE

The Netron EN4 is a powerful Ethernet to DMX gateway with four RDM compatible ports. Designed for live production and installations with a rugged housing and high-performance processing it offers flexible mounting options to cover any situation.

• RDM, Artnet and sACN support
• Factory and user presets for plug and play setups
• Line Voltage or POE powered
• 1.8” OLED Display with rotary knob
• 99 Internal cues with fade and delay time
•  Remote configuration via internal webpage
• Powder-coated aluminum ½ rack housing
• Connect to ONYX PC for a full four Universe Solution

SPECIFICATIONS

• Mounting

  • Standalone
  • Truss-mount (M10 or M12 mounting hole)
  • Wall-mount horizontal or vertical (included)
  • DIN Rail horizontal or vertical (included)
  • Rack-mount option (requires NET Shelf)

  Connections

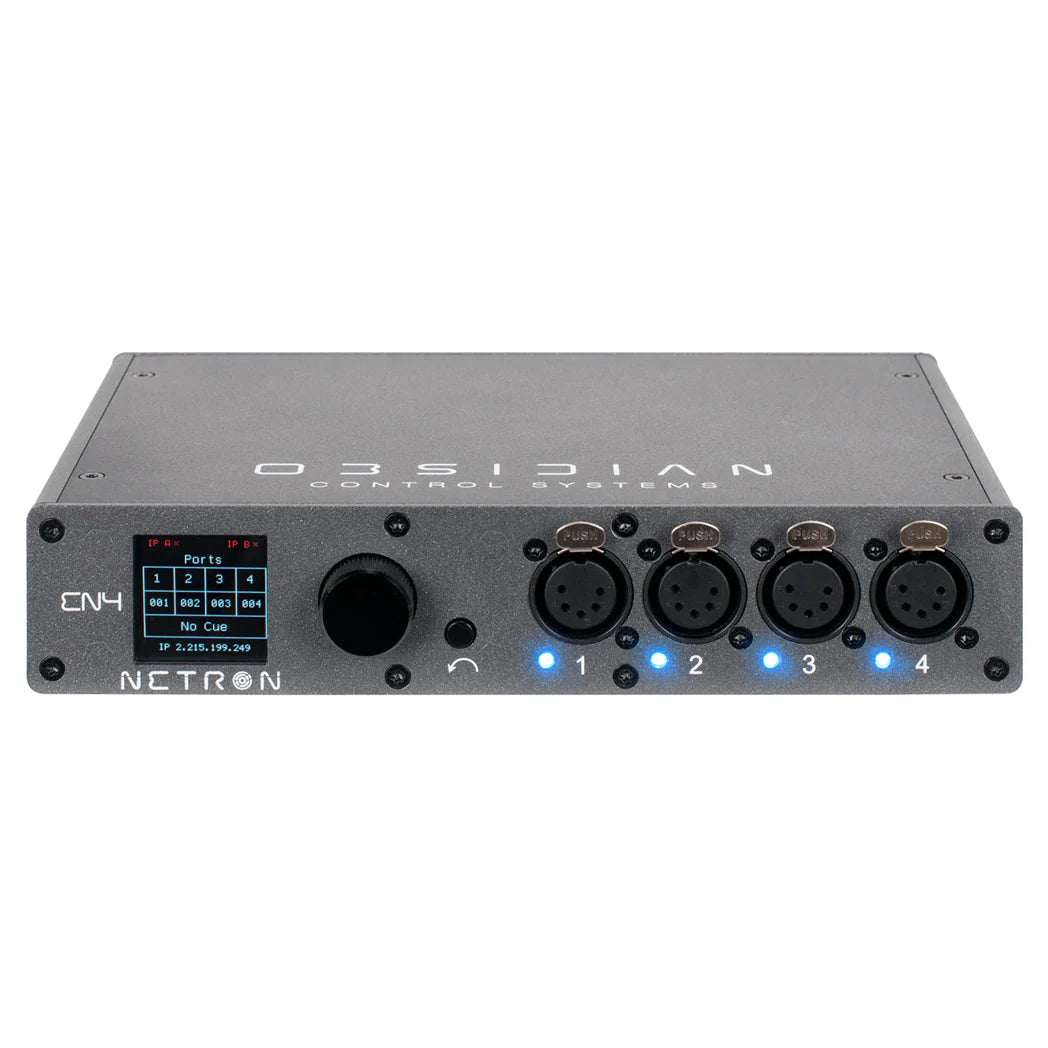

  • Front
    • (4) 5pin DMX/RDM optically isolated ports
    • Ports are bidirectional for DMX In and Output
    • Full color OLED display
    • Encoder w. Push to Select / Exit Button

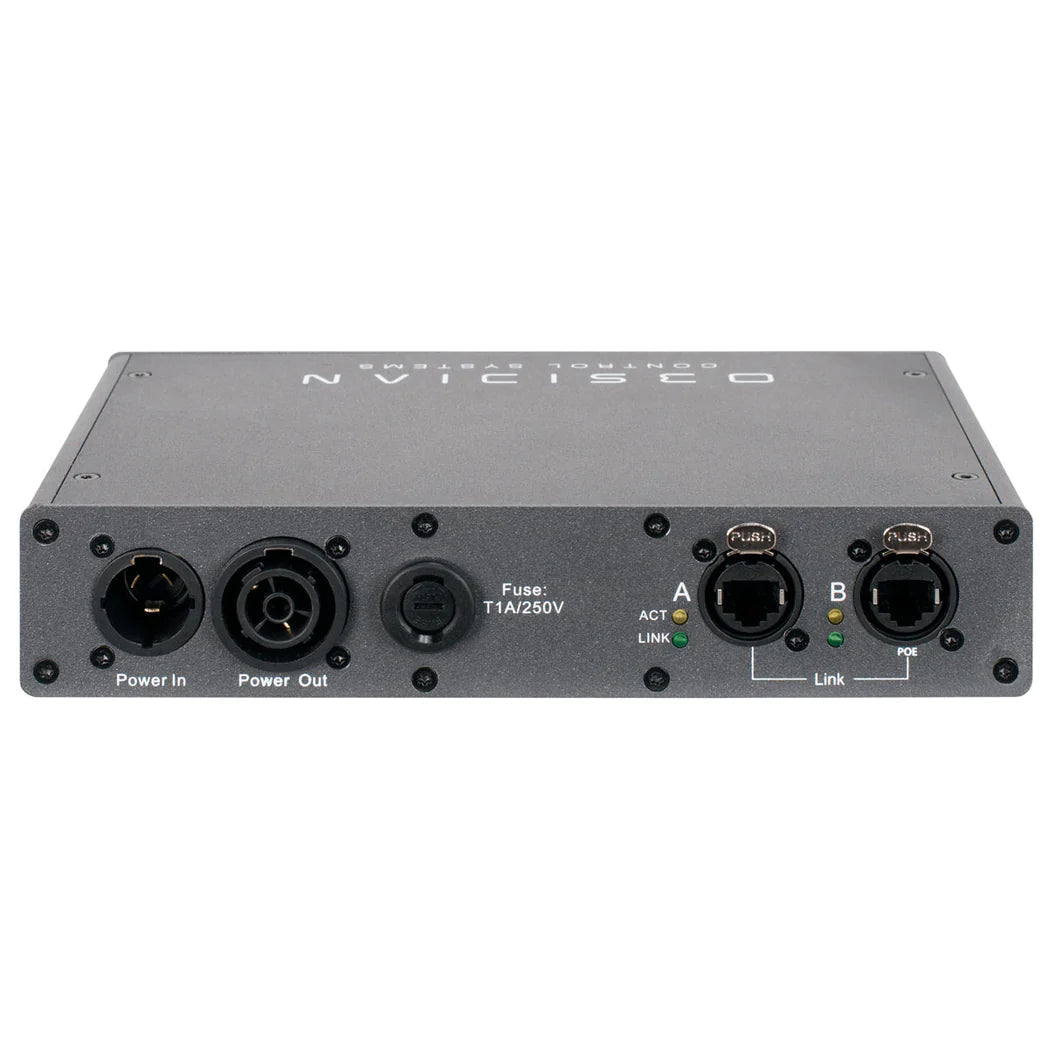

  • Back
    • Locking Power In/Thru
    • (2) Locking RJ45 Ethernet network connections (1x POE)

  Physical

  • Length: 215 mm (8.5 in.)
  • Width: 139 mm (5.5 in.)
  • Height: 42 mm (1.65 in.)
  • Weight: 1 kg (2.2 lbs)

  Electrical

  • 100-240 V nominal, 50/60 Hz,10W
  • POE 802.3af
  • Power Consumption 5W

  APPROVALS / RATINGS

  • CE
  • cETLus
  • FCC
  • IP20
  .
