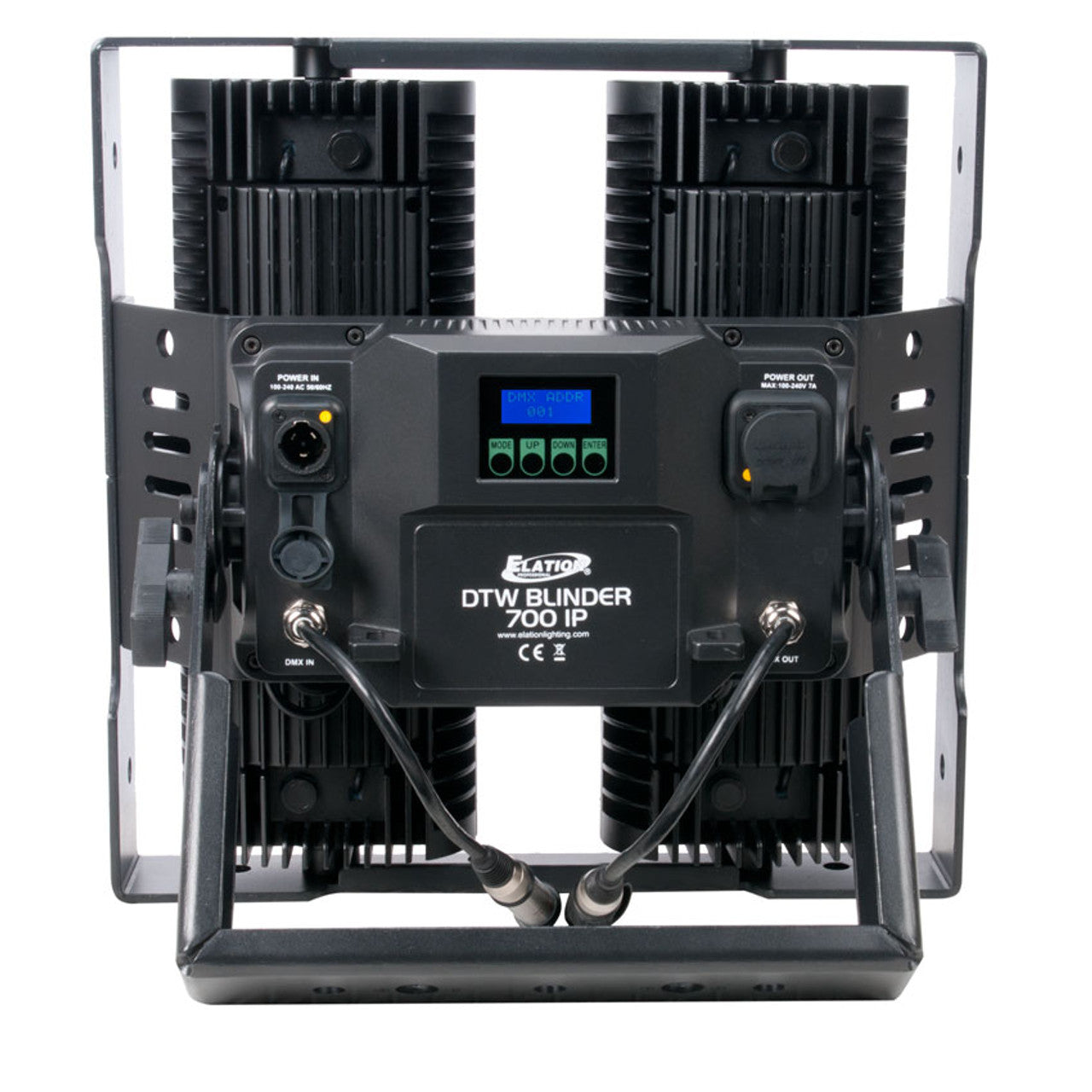

DTW BLINDER 700IP; 4 x 175W IP65 2 lite Blinder WW,AMBER COB
DTW BLINDER 700IP; 4 x 175W IP65 2 lite Blinder WW,AMBER COB
Regular price
$1,600.00 USD
Regular price
$2,270.00 USD
Sale price
$1,600.00 USD
Unit price
per
The IP65 rated DTW Blinder 700 IP features (4) high powered 175W 2-in-1 Warm White/Amber COB LEDs, a wide 67° beam angle, full color temperature range control plus independent Dim-to-Warm channel control (1,800K - 3,200K), easily attachable 15° narrow beam filters (included), pixel control, manual adjustable pan focus, variable dimming curve modes, strobe effects, flicker free operation for TV and Film, RDM (Remote Device Management), IP rated DMX and power in/out connections, LCD menu display with 4 touch button control panel, integrated yoke and side mounting brackets, and a multi-voltage universal auto switching power supply (100-250v).
Features
- IP65 Rated
- Pixel Control
- 67° Wide Beam Angle
- 15° Narrow Beam Filters (included)
- Independent Dim-to-Warm Channel Control (1,800K - 3,200K)
- RDM (Remote Device Management)
- Rugged Die-Cast Aluminum Exterior
- Flicker Free Operation for TV and FILM
Specifications
SOURCE
PHOTOMETRIC DATA
EFFECTS
COLOR
CONTROL / CONNECTIONS
SIZE / WEIGHT
ELECTRICAL / THERMAL
APPROVALS / RATINGS
- (4) 175W 2-in-1 Warm White/Amber COB LEDs
- 50,000 Hour Average LED Life*
- *LED Life may vary depending on several factors including but not limited to:
- Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
- 7,719 LUX 717 FC (15° @ 9.8 ft / 3m w/Fresnel lens)
- 1,104 LUX 94 FC (67° @ 9.8 ft / 3m w/No Fresnel lens)
EFFECTS
- Pixel Control
- 15° Narrow Beam Angle with included Fresnel Lens
- 67° Wide Beam Angle with Fresnel Lens Removed
- Unique Dim-to-Warm Channel Control (1,800K - 3,200K)
- Independent Dimming of Each COB LED Module
- Electronic Strobe and Variable Dimming Curves
COLOR
- Warm White / Amber
CONTROL / CONNECTIONS
- (9) DMX Channel Modes (13 Total Channels)
- RDM (Remote Device Management)
- 4 Button Control Panel and LCD Menu Display
- IP Rated 5pin DMX In/Out
- powerCON TRUE1 In/Out
- With Wired Digital Communication Network
SIZE / WEIGHT
- Length: 15.7" (400mm)
- Width: 9.7 (244mm)
- Horizontal Height: 16.1" (410mm)
- Weight: 28.0 lbs. (12.7 kg)
ELECTRICAL / THERMAL
- AC 100-240V - 50/60Hz
- 680W Max Power Consumption
- Multiple Unit Power Linking
- 5°F to 113°F (-15°C to 45°C)
APPROVALS / RATINGS
- CE | cETLus | IP65
FIRMWARE UPDATES
- Current Version: V1.2.0
