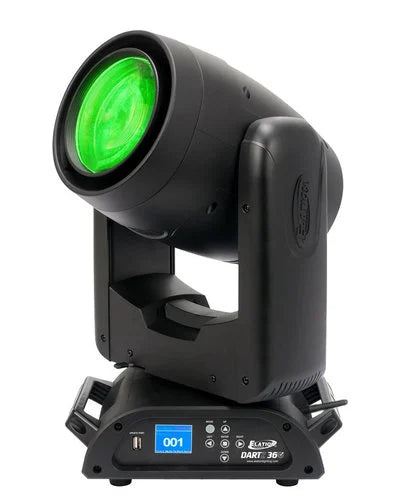

DARTZ 360; 50W RGB LED Beam Moving Head w/ 360 pan/tilt

A unique, compact, narrow beam fixture, Dartz 360 from Elation Lighting offers fresh projection possibilities from a compact, narrow-beam luminaire. Driven by a single-source 50 W RGB LED engine, the result is a powerful, high-level, and tight 3-degree beam output with smooth color mixing, crisp gobo reproduction, effects and sharp optics all in a small package. Fast, precise 16-bit continuous 360° pan and tilt rotation allows you to explore the Dartz 360 effects package—containing 14 static-stamped metal gobos, 6-facet linear and 8-facet independent rotating prisms, 0-100% linear frost filter for wash effects, high speed electronic shutter and strobe, electronic dimming and variable dimming curve modes.

Flicker free operation for TV and film is no problem with the adjustable LED refresh rate and gamma brightness. Add beams and effects to matrix displays with ease via DMX, RDM, Kling-Net, Art-NET, and sACN protocols that support Dartz 360 or use Elation’s E-FLY™ internal wireless DMX transceiver (sold separately), conventional 5pin XLR, RJ45 etherCON, and powerCON TRUE1 in/out connections for wireless DMX connectivity. Also featuring a full color 180° reversible menu display, battery backup for display power, and a multi-voltage univeral auto switching power supply (100-240 V), Dartz 360 offers the tricks you want in a compact fixture.

Elation Dartz 360 Includes:

• (1) Dartz 360 LED fixture

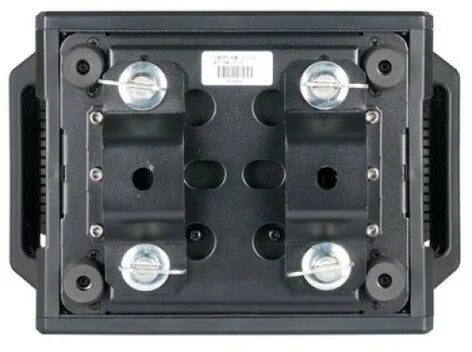

• (1) Omega Bracket
• (1) powercon true1 Cable
• (1) Safety Cable

Elation Dartz 360 Features:

• Compact Precise 360° Pan/Tilt Moving Beam Luminaire
• 3° Sharp Beam Aperture with Motorized Focus
• Fast and Precise 16-Bit Continuous 360° Pan/Tilt Rotation
• 14 Static-Stamped Metal Gobos, 6 Linear and 8 Facet Independent Rotating Prisms, and 0-100% Linear Frost Filter
• DMX, RDM, Kling-Net, Art-NET, and sACN Protocol Support
• Elation’s E-FLY™ Internal Wireless DMX Transceiver
• Adjustable Refresh Rate Frequency and Gamma Brightness and Flicker Free Operation

Elation Dartz 360 Specifications:

• Source: Patent Pending 50W RGB LED Engine
• 50,000 Hour Average Lamp Life (LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.)
• Photometric Data: 61.300 Lux @ 5M
• Electrical / Thermal:
  • AC 100-240V - 50/60Hz
  • 154W Max Power Consumption
  • 14F to 113°F (-10°C to 45°C)
• Effects:
  • Motorized Focus
  • 6 and 8 Facet Independent Rotating Prisms
  • 0-100% Linear Frost Filter
  • High Speed Electronic Shutter and Strobe
  • 16-Bit Variable Dimming Curve Modes
  • Adjustable LED Refresh Rate and Gamma Brightness
• Color: RGB Color Mixing
• Gobo: 14 Static Stamped Metal Gobo’s
• Control / Connections:
  • (3) DMX Channel Modes (19 / 22 / 25)
  • 360° Continuous Pan and Tilt 8 / 16 Bit Movement
  • Adjustable Refresh Rate (900-25,000 (Hz)
  • Adjustable Gamma Brightness (2.0, 2.2, 2.4, 2.8)
  • 6 Button Menu Control Panel
  • Full Color 180° Reversible LCD Menu Display
  • DMX, RDM, Kling-net, Art-NET and sACN Protocol Support
  • Elation E-FLY™ Internal Wireless DMX Transceiver
  • 5pin DMX, RJ45 Ethernet In/Out
  • powercon true1Power In/Out
• Dimensions: 11.2" x 7.7" x 17.9"
• Weight: 28 lb.
