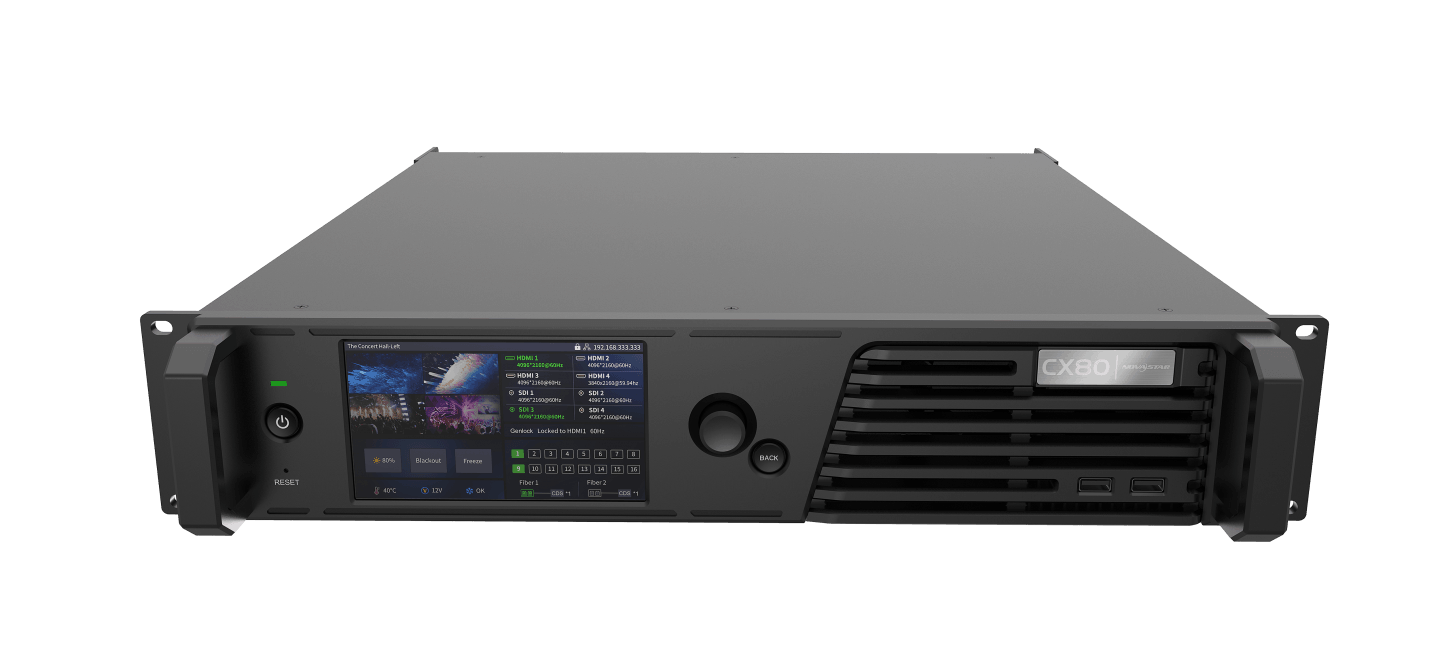

CX80 PRO 8K

The NovaStar CX80 Pro is a flagship 8K LED display controller in the brand-new control system COEX series of NovaStar. This controller offers rich video input connectors (HDMI 2.1, HDMI 2.0, DP 1.4 and 12G-SDI) and supports 5Gbps output via Ethernet port and 40Gbps remote transmission via optical port. It can also work with the brand-new software VMP (Vision Management Platform) to provide a better operation and control experience.

Based on modular design, the CX80 Pro uses pluggable cards that can be easily replaced and maintained. Besides, the CX80 Pro comes with a 5.5-inch touch LCD, making user operation and control much easier.

• 2 types of pluggable input cards, user configurable
  − Input card 1 (Max connector capacity: 8K@60Hz)
  4x 12G-SDI+1x HDMI 2.1+1x DP 1.4
  − Input card 2 (Max connector capacity: 4K@60Hz)
  4x 12G-SDI+4x HDMI 2.0
• Input mosaic
  12G-SDI and HDMI 2.0 support input mosaic.
• 12-bit, 10-bit and 8-bit video inputs
• 3 types of outputs
  − 16x 5Gbps Ethernet ports
  − 2x 40Gbps optical ports
  − 1x SPDIF digital audio port
• 3 types of controls
  − 1x Genlock signal input (with loop through)
  − 2x Ethernet control ports
  − 1x Auxiliary port
