Elation Lighting

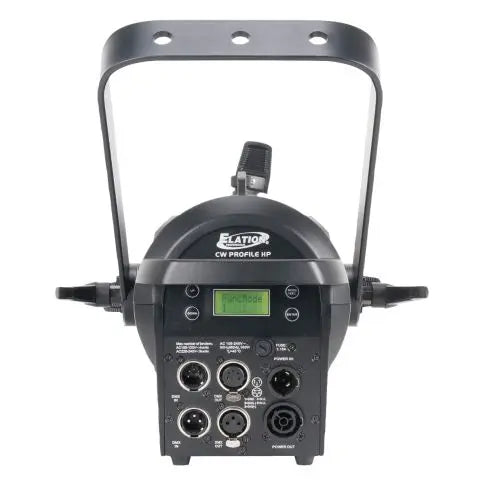

CW Profile HP IP65; HP Cool White LED Profile (no lens) + Framing Shutter

CW Profile HP IP65; HP Cool White LED Profile (no lens) + Framing Shutter

Regular price $1,408.00 USD
Regular price $2,300.00 USD Sale price $1,408.00 USD
Sale Sold out

The CW Profile HP ellipsoidal features a high powered 130W Cool White >90CRI 5,600K LED engine producing 11,000+ total lumens, 19°, 26°, 36°, and 50° interchangeable lens options (sold separately), (4) blade manual framing shutters, manual focus, supports B size metal HT transparency gobos, DMX controlled electronic strobe, and variable dimming curve modes, adjustable refresh frequency and gamma brightness for flicker free operation for TV and FILM, 3/5pin DMX and Locking Power Cable in/out connections, (4) button LCD control display panel, an integrated rigging yoke, quiet fan cooling, and a multi-voltage universal auto switching power supply (100-240v).

Elation Professional CW Profile HP LED Ellipsoidal Features:

  • High Power 130W Cool White 5,600K LED Engine.
  • >90CRI | 11,000+ Total Lumens.
  • Interchangeable Lens Options (19°, 26°, 36°, 50°) (not included.)
  • (4) Blade Manual Framing Shutters.
  • Supports B Size Metal or HT Transparency Gobos (not included.)
  • DMX Controlled Electronic Strobe and 16bit Dimming.
  • Selectable Dimming Curve Modes.
  • Flicker Free Operation for TV and FILM.
  • Adjustable LED Refresh Rate and Gamma Brightness.
  • Quiet Fan Cooling.
Elation Professional CW Profile HP Product Specifications:

Source:
High Power 130W Cool White 5,600K LED Engine
50,000 Hour Average LED Life
May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

Photometric Data:
>90CRI | 11,000+ Total Lumens

Effects:
Electronic Strobe
Variable Dimming Curve Modes

Gobos:
Supports "B" Size Metal, HT Transparency Gobos
Gobo Holder Not Included

Control/Connections:
2 DMX Channel Modes (4 total channels)
4 Button Control Panel
LED Menu Display
3/5pin DMX In/Out
Locking Power Cable In/Out
With Wired Digital Communication Network

Size/Weight:
Length: 24.3" (618mm)
Width 12.2" (310mm)
Vertical Height: 15.7" (398mm)
Weight: 21.0 lbs. (9.5kg)

Electrical/Thermal:
Quiet Fan Cooling
AC 100-240V - 50-60Hz
160W Max Power Consumption
14°F to 113°F (-10°C to 45°C)

Approvals/Ratings:
CE | cETLus | IP20
