CUEPIX 16IP DTW; 16x30W Dim to Warm COB MATRIX IP65
CUEPIX 16IP DTW; 16x30W Dim to Warm COB MATRIX IP65
Couldn't load pickup availability

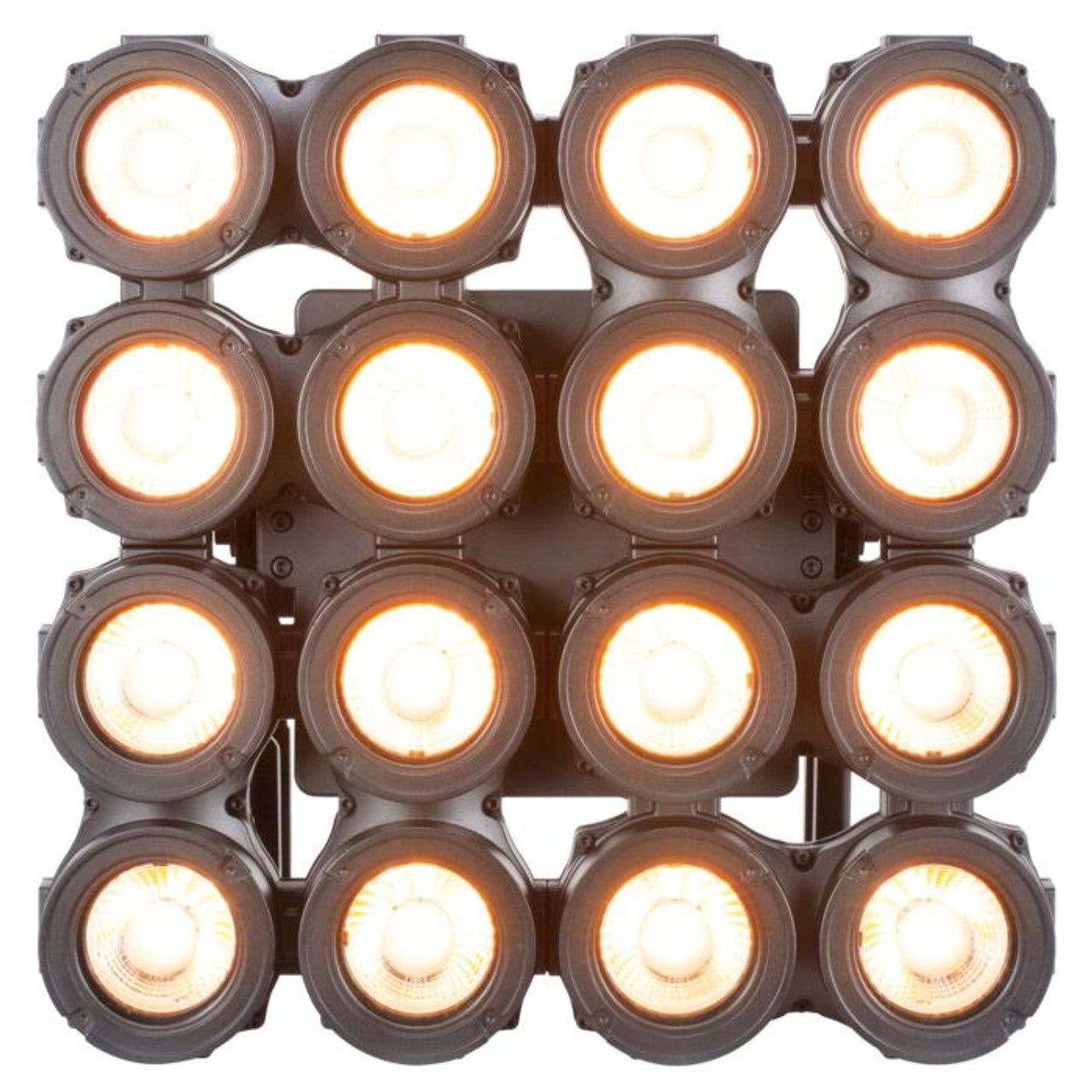

The CUEPIX 16IP DTW is a powerful IP65 outdoor rated effect panel luminaire that features a 4x4 array of 16x40W DTW COB LEDs, full pixel control and 16-bit dimming, variable dimming curve modes, high speed electronic shutter and strobe, adjustable LED refresh rate and gamma brightness for flicker free operation for TV and FILM, no fans for noise-sensitive applications, DMX, RDM (Remote Device Management), Kling-NET, and Art-NET protocol support, IP65 rated locking 5pin XLR DMX, RJ45 ethernet, and power in/out connections, full color 180° reversible LCD control panel, and a multi-voltage universal auto switching power supply (100-240v).
Features
- Versatile IP65 Outdoor Rated Effect Panel Luminaire
- 4x4 Matrix Array of 16x40W DTW COB LEDs
- Full Pixel Control with Pixel Flip Modes
- 16-bit Dimming and Variable Dimming Curve Modes
- Convection Cooled - No Fans for Noise-Sensitive Applications
- 90° Adjustable and Fixed Yoke Brackets w/3-Position Holes
- Integrated Fixture-to-Fixture Interlocking Alignment Pins/Locks
- Optional 1/4 Turn Omega Brackets Available
Specifications
- 16x40W DTW COB LEDs
- 50,000 Hour Average LED Life*
- *Test lab conditions. May vary depending on several factors including but not limited to:
- Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
- 10,000+ Total Lumen Output
- 22.6 ° Beam / 41.3° Field Angles
- 1929 LUX 179 FC @16.4' (5m) (Full ON)
EFFECTS
- Full Pixel Control with Pixel Flip Modes
- High Speed Electronic Shutter and Strobe
- 16-Bit Dimming and Variable Dimming Curve Modes
COLOR
- DTW
CONTROL / CONNECTIONS
- 7 DMX Channel Modes (64 total channels)
- Adjustable Refresh Rate (900-25,000 (Hz)
- 4 Button OLED Menu Control Display
- DMX, RDM, and Art-Net Protocol Support

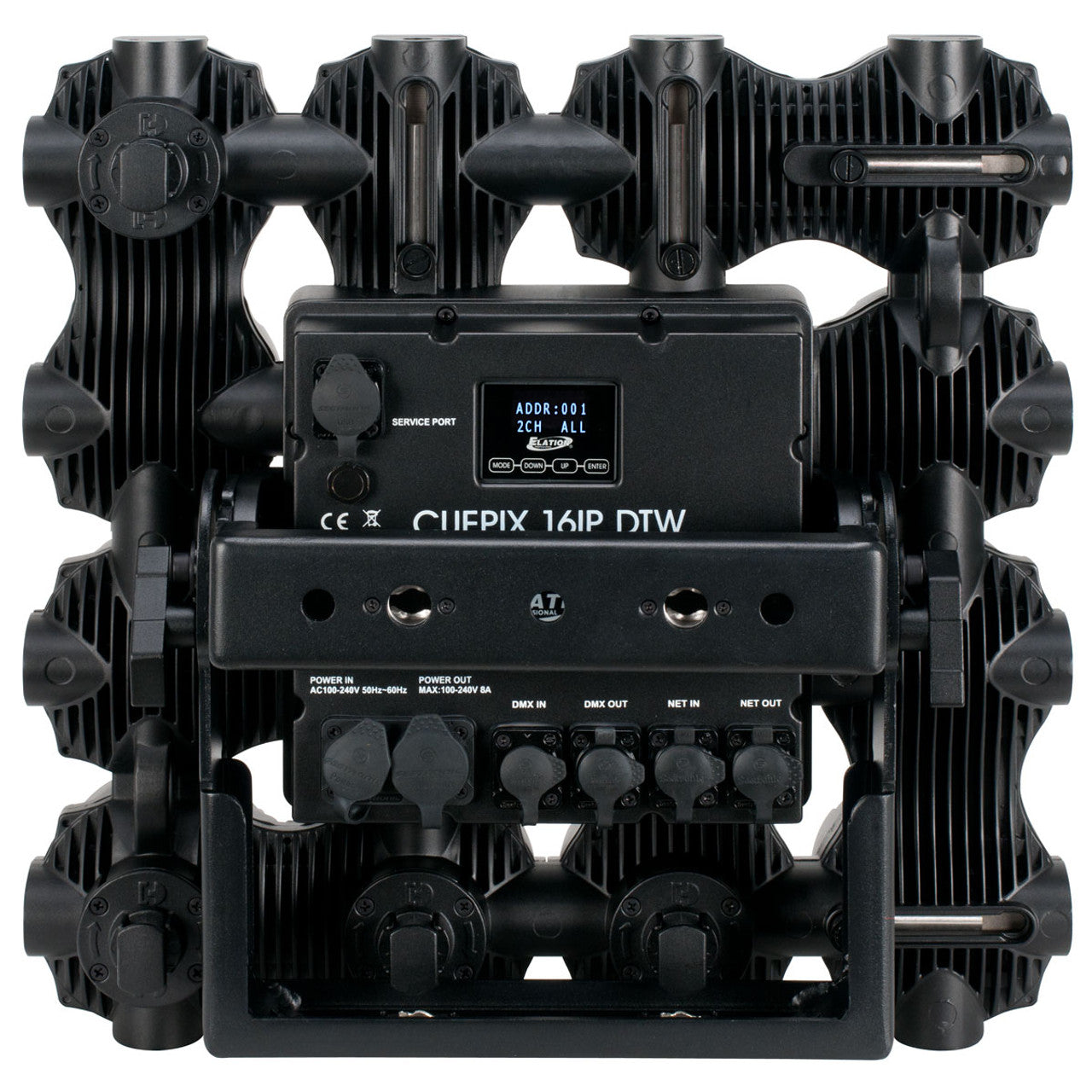

- IP65 Locking 5pin XLR DMX, RJ45 Ethernet, Power In/Out
- Fixture-to-Fixture Interlocking Alignment Pins/Locks
- With Wired Digital Communication Network
SIZE / WEIGHT
- Length: 17.32” (440mm)
- Width: 8.1” (207mm)
- Vertical Height: 17.31” (440mm)
- Weight: 33.0 lbs. (15.0 kg)
ELECTRICAL / THERMAL
- AC 100-240V - 50/60Hz
- 400W Max Power Consumption
- 14°F to 113°F (-10°C to 45°C)
APPROVALS / RATINGS
- CE | cETLus | IP65
FIRMWARE UPDATES
- Current Version: V1.03
