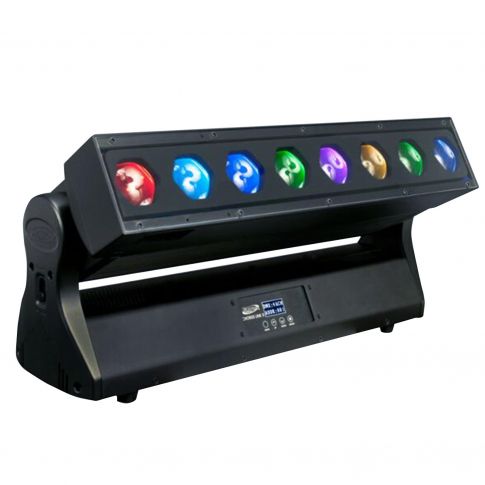

CHORUS LINE 16; 16x40W RGBW LED Strip w/ Zoom and Tilt

SOURCE

• (16) 40W 4-in-1 RGBW LEDs
• 50,000 Hour Average LED Life*

*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA

• 5,700+ Total Lumens
• 20,478 LUX 1903 FC @16.4 ft (5m) (Full ON (4° Min Zoom)
• 570 LUX 53 FC @16.4 ft (5m) (Full ON (37° Max Zoom)
• Zoom Range 4° - 40°
• Beam Angle 4.6° - 37.8°
• Field Angle 7.8° - 54.4°

EFFECTS

• Motorized Zoom and 220° Tilt Movement
• RGBW Color Mixing and Full Pixel Control
• 2,700K - 7,000K Linear Color Temperature Range

• 64 Color Presets and 14 Unique Color Macros
• Electronic Strobe, 16-bit Variable Dimming Curve Modes

COLOR

• RGBW

CONTROL / CONNECTIONS

• 3 DMX Channel Modes (78 total channels)
• DMX, RDM, Kling-Net, and Art-Net Protocol Support
• Adjustable LED Refresh Rate (900-25,000 Hz)
• Adjustable LED Gamma Brightness (2.0, 2.2, 2.4, 2.8)
• 4 Button Touch Control Panel
• 180° Reversible LCD Menu Display
• 8 / 16-Bit Resolution Zoom and Tilt Movement

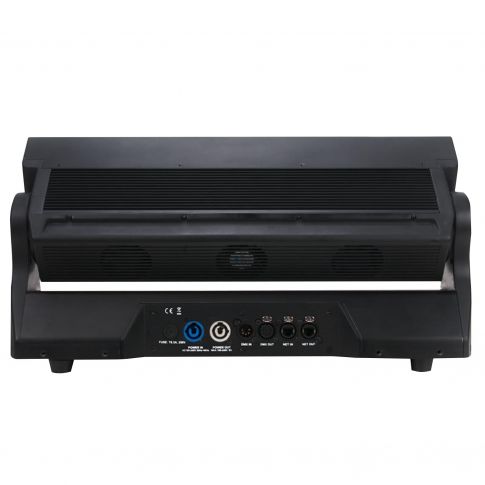

• 5pin DMX In/Out
• RJ45 Ethernet In/Out
• Locking Power Cable In/Out
• With Wired Digital Communication Network

SIZE / WEIGHT

• Length: 42.05" 1068mm)
• Width: 7.44" (189mm)
• Vertical Height: 11.46" (291mm)
• Weight: 47.0 lbs (21.3 kg)

ELECTRICAL / THERMAL

• AC 100-240V - 50/60Hz
• 739W Max Power Consumption
• 5°F to 113°F (-15°C to 45°C)
• BTU/hr (+/- 10%) 2519.99
