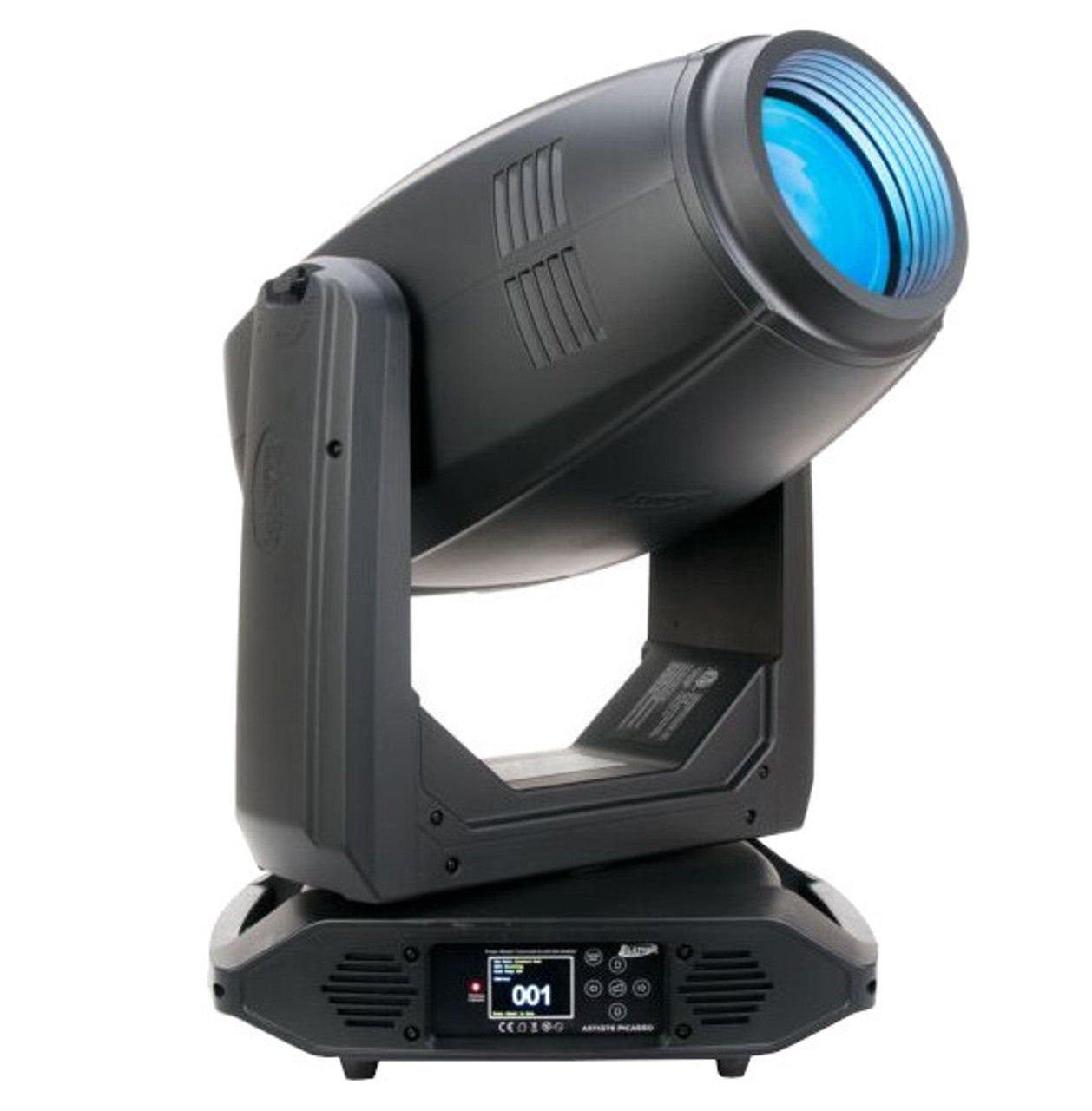

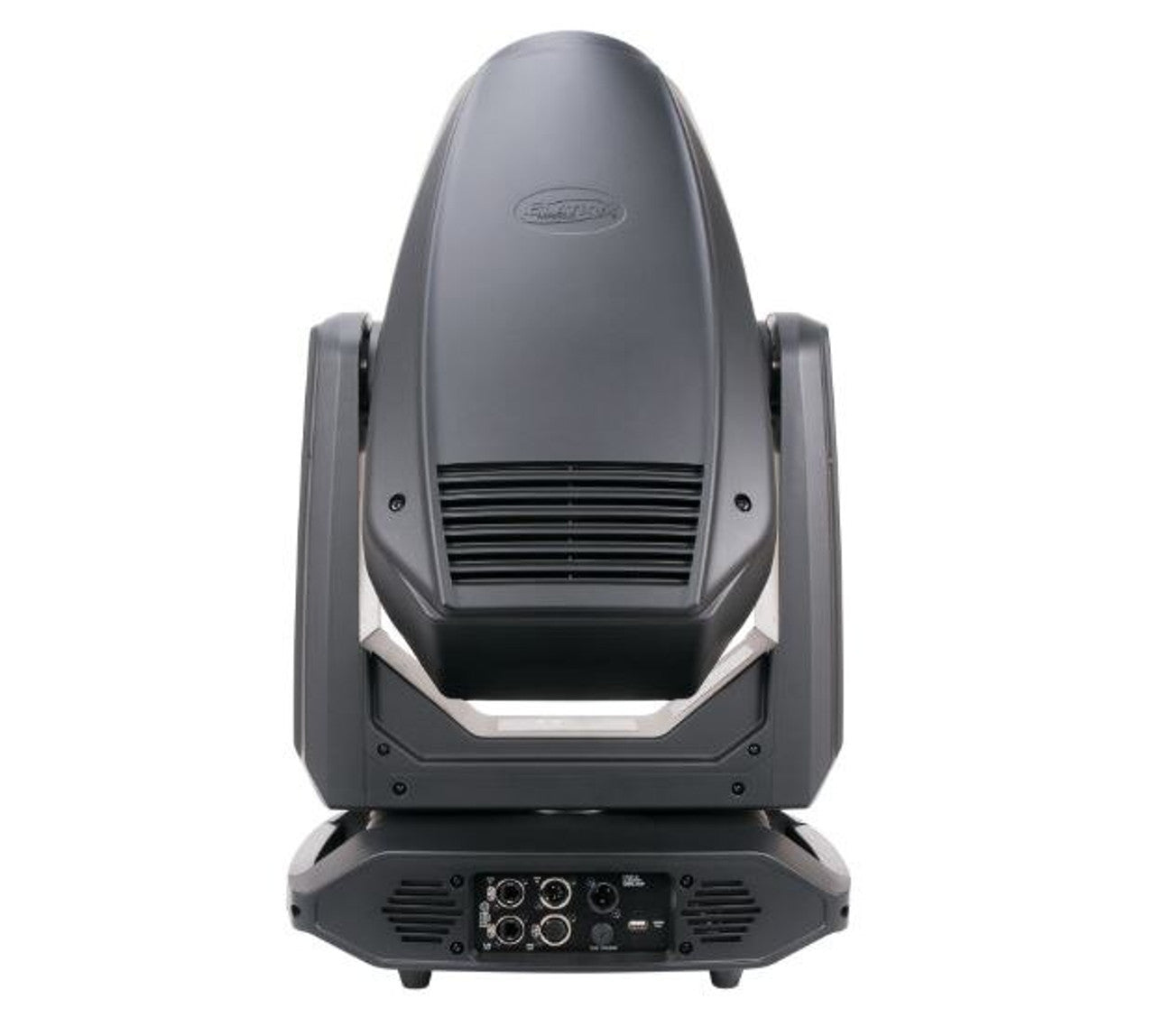

The Artiste Picasso™ is a full-featured innovative theatrical-grade luminaire featuring a new 620W 6,800K Cool White LED engine with advanced optics that deliver over 23,000 total lumen output, ultra wide and fast 7° to 55° zoom, a full CMY color mixing system producing a full spectrum of shades from pastels to rich saturated colors, linear CTO color correction, 6 dichroic colors including a high 87 CRI filter, 7 rotating/indexing glass and 7 static-stamped metal interchangeable gobos, 4 rotating full blackout framing blades with +/- 45° individual blade rotation, full 360° bi-directional animation wheel, 4-facet and linear rotating prisms and 2 frost filters, internal color, framing, prism, and frost macros, motorized iris with variable pulse effects, motorized focus and auto-focus feature, 16-bit pan, tilt, and dimming control, variable dimming curve modes, high speed electronic shutter and strobe, adjustable LED refresh rate and gamma brightness for flicker free operation for TV and FILM, silent fan mode for noise-sensitive applications, DMX, RDM (Remote Device Management), Art-NET, and sACN protocol support, Elation’s E-FLY internal wireless DMX transceiver, 5pin XLR, RJ45 etherCON, and powerCON TRUE1 connections, full color 180° reversible LCD control panel, battery backup for display power, and a multi-voltage universal auto switching power supply (100-240v).
Elation Artiste Picasso Features
- 620W 6,800K cool white LED engine
- 23,000+ total lumen output
- 7° to 55° motorized zoom
- Full CMY color mixing system and linear CTO color correction
- 6 dichroic colors including a high 87 CRI filter
- 7 rotating/indexing glass and 7 static-stamped metal interchangeable gobos
- 4 rotating full blackout framing blades
- Full 360° bi-directional animation wheel
- 4-facet and linear rotating prisms and 2 frost filters
- Internal color, framing, prism, and frost macros
- Motorized iris with variable pulse effects
- Motorized focus and auto-focus feature
- 16-bit pan, tilt, and dimming control
- Variable dimming curve modes
- High speed electronic shutter and strobe
- Adjustable LED refresh rate frequency and gamma
- Flicker free operation for broadcast TV and film
- Silent fan mode
- DMX, RDM, Art-NET, and sACN protocol support
- Elation's E-FLY™ internal wireless DMX transceiver
- Low heat, quiet operation, hibernation mode (power save)
- Source620W 6,800K Cool White LED Engine with 30,000 Hour Average LED Life
-
Photometric Data
- 23,000+ Total Lumen Output
- CRI 73 (87+ with HCRI filter)
- Zoom Range 7° - 55°
- Beam Angle 6.7° - 47.9°
- Field Angle 8.2° - 56°
-
Effects
- Motorized Zoom
- 4 Rotating Full Blackout Framing Blades
- +/-45° Framing Indexing
- Full 360° Bi-Directional Animation Wheel
- 4-Facet and Linear Rotating Prisms
- 2 Frost Filters
- Internal Color, Framing, Prism, and Frost Macros
- Motorized Iris with Variable Pulse Effects
- Variable 16-bit Dimming Curve Modes
- High Speed Electronic Shutter and Strobe
- Adjustable LED Refresh Rate Frequency and Gamma
- Pan Angle: 540°/630°
- Tilt Angle: 246°
-
Color
- Full CMY Color Mixing System
- Linear CTO Color Correction
- 6 Dichroic Colors including High 87 CRI Filter
-
GOBOs
- 2 Gobo Wheels
- 7 Rotating / Indexing Interchangeable Glass Gobos
- 7 Interchangeable Static-Stamped Metal Gobos
-
Control / Connections
- 2 DMX Channel Modes (36 / 62 channels)
- 16-bit Pan, Tilt, and Dimming Control
- Motorized Focus and 5-15m Auto-Focus Presets
- DMX, RDM, Art-NET, and sACN Protocol Support
- Elation's E-FLY™ Internal Wireless DMX Transceiver
- 6 Button Touch Control Panel
- Full Color 180° Reversible LCD Menu Display
- 8 / 16 Bit Resolution Adjustable Movement
- Hibernation Mode (Power Save)
- Locking 5pin XLR DMX, RJ45 Ethernet, and Power
- With Wired Digital Communication Network
-
Electrical / Thermal
- AC 100-240V - 50/60Hz
- 1000W Max Power Consumption
- 14°F to 113°F (-10°C to 45°C)
- BTU/hr (+/- 10%) 3410
- Dimensions (LxWxH)18" x 21.5" x 29.8"
- Weight84 pounds
