Elation Lighting

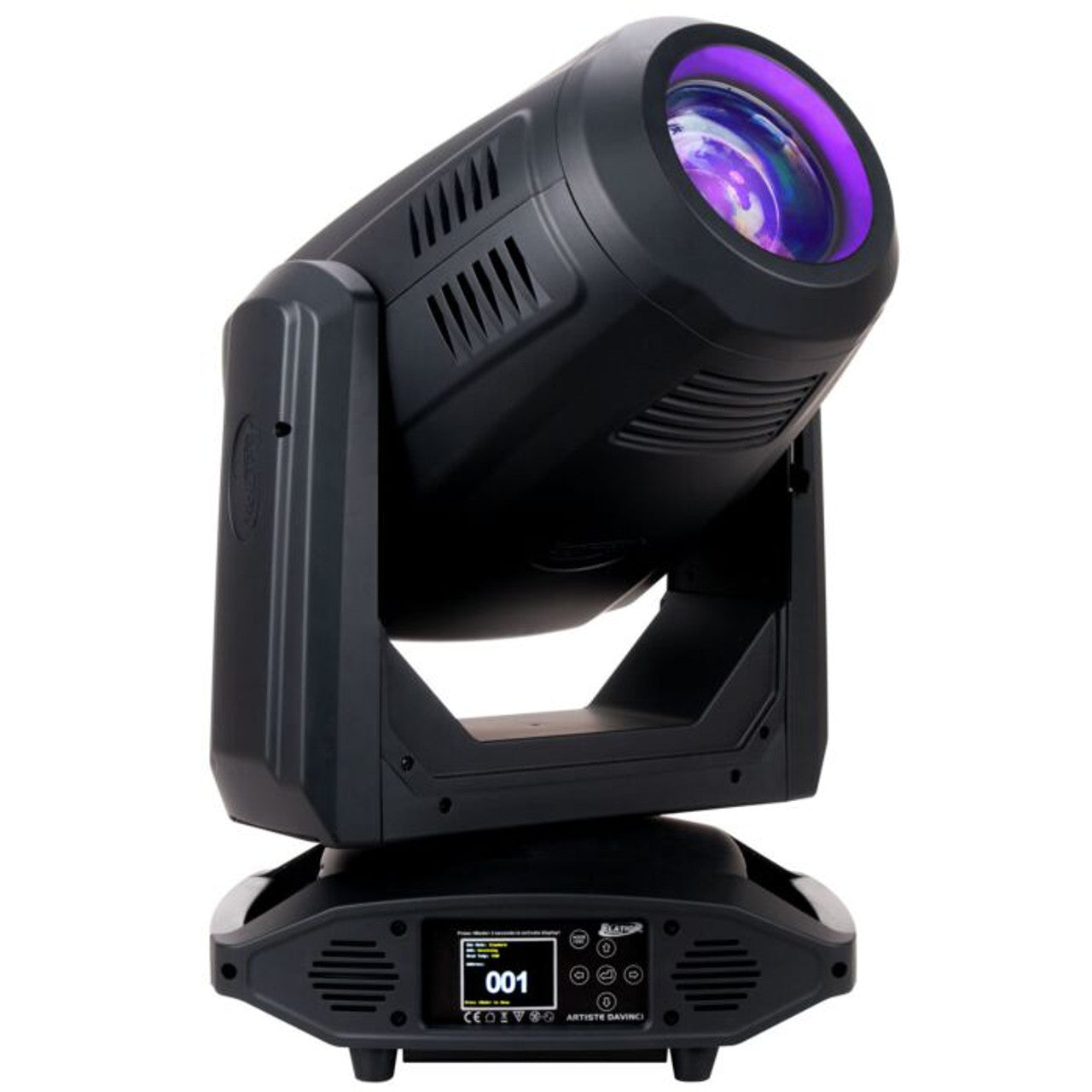

Artiste DaVinci; 270W Pro LED Spot Moving Head w CMY

Artiste DaVinci; 270W Pro LED Spot Moving Head w CMY

$5,400.00 USD
$6,000.00 USD $5,400.00 USD
Sale Sold out
The Artiste DaVinci features a new 270W LED Cool White LED engine with advanced optics delivering over 12,000 total lumens, ultra wide 6° to 48° zoom, full CMY color mixing and linear CTO color correction, 7 dichroic colors including CTB and Violet, 6 rotating glass and 9 static-stamped metal interchangeable gobos, 3-facet and linear rotating prisms, frost filter, full 360° bi-directional animation wheel, motorized iris, focus, and auto-focus, variable dimming curve modes, high speed electronic shutter and strobe, hibernation mode, DMX, RDM (Remote Device Management), Art-NET, and sACN protocol support, Elation's E-FLY™ internal wireless DMX transceiver, locking 5pin XLR DMX, RJ45 ethernet, power in/out connections, full color 180° reversible menu display with 6 button touch control panel, battery backup for display power, adjustable LED refresh rate and gamma brightness for flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (100-240v).


Features

  • 270W Cool White 12,000 Lumen LED Spot Luminaire
  • 6° to 48° Motorized Zoom
  • Full CMY Color Mixing and Linear CTO Color Correction
  • 7 Dichroic Colors including CTB and Violet
  • 6 Rotating and 9 Static-Stamped Interchangeable Gobos
  • 3-Facet and Linear Rotating Prisms and Frost Filter
  • Full 360° Bi-Directional Animation Wheel
  • High Speed Electronic Shutter and Strobe
  • Motorized Iris, Focus, and Auto-Focus
  • Variable Dimming Curve Modes
  • DMX, RDM, Art-NET, and sACN Protocol Support
  • Elation's E-FLY™ Internal Wireless DMX Transceiver
  • Low Heat, Quiet Operation, Hibernation Mode
  • Adjustable LED Refresh Rate Frequency and Gamma
  • Flicker Free Operation For Broadcast TV and FILM

Specifications

SOURCE

270W Cool White LED Engine

50,000 Hour Average LED Life*

*Test lab conditions. May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.



PHOTOMETRIC DATA

12,000 Total Lumen Output

CRI 72+

Zoom Range 6° - 48°

Beam Angle 7.3° - 41.5°

Field Angle 8.4° - 46.1°



EFFECTS

Motorized Zoom

3-Facet and Linear Rotating Prisms and Prism Macros

Full 360° Bi-Directional Rotating Animation Wheel

Frost Filter Hybrid Wash Effect

Motorized Zoom, Iris, Focus and Auto-Focus

High Speed Electronic Shutter and Strobe

Variable 16-Bit Dimming Curve Modes

Adjustable LED Refresh Rate Frequency and Gamma Brightness



COLOR

7 Dichroic Colors + CTB

Full CMY Color Mixing

Linear CTO Color Correction



GOBOS

2 Gobo Wheels

6 Interchangeable Rotating / Indexing Gobos

9 Interchangeable Static-Stamped Metal Gobos



CONTROL / CONNECTIONS

(3) DMX Channel Modes (40 total channels)

6 Button Touch Control Panel

Full Color 180° Reversible LCD Menu Display

8 / 16 Bit Resolution Adjustable Movement

DMX, RDM, Art-Net, sACN Protocol Support

Elation's E-FLY™ Internal Wireless DMX Transceiver

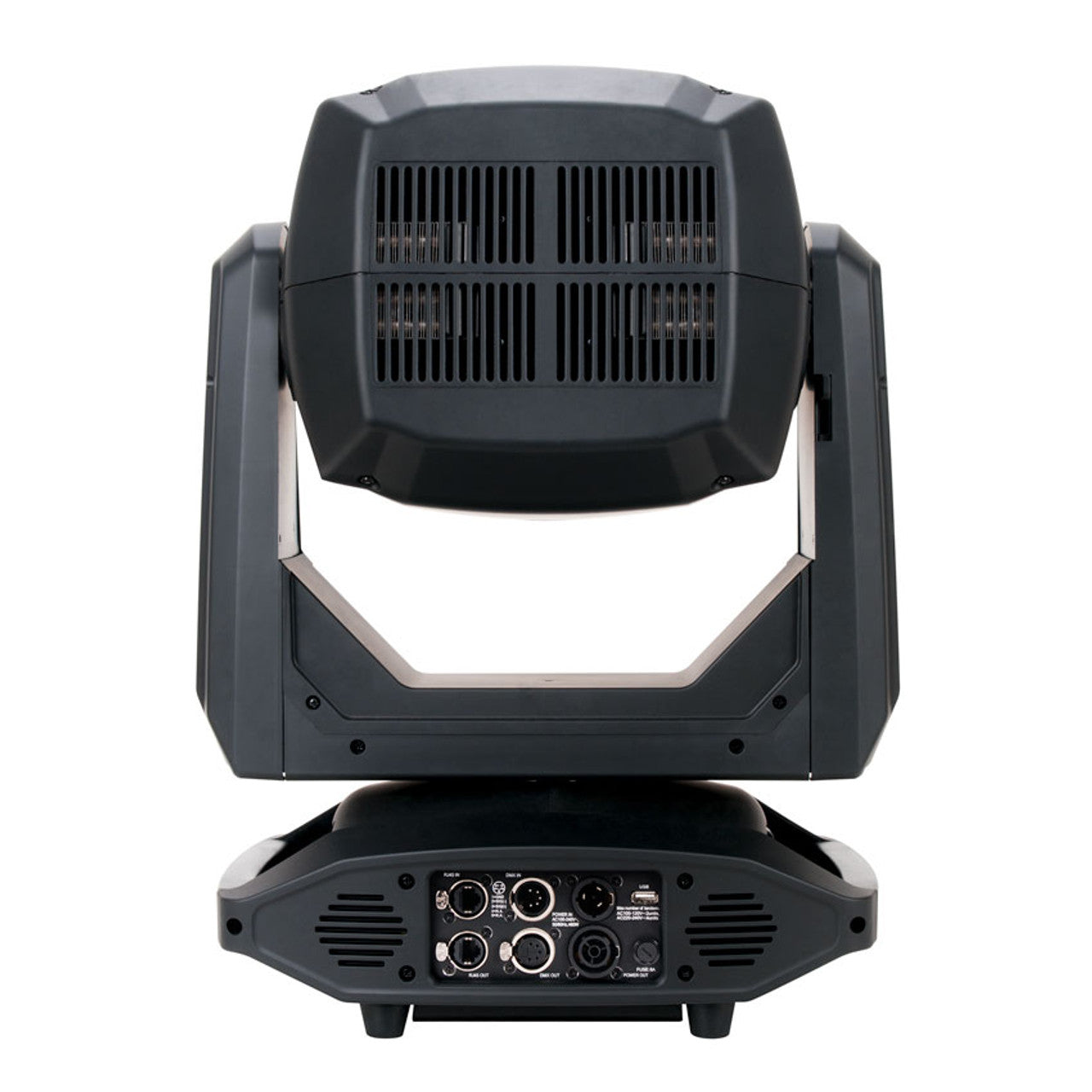

Locking 5pin XLR DMX, RJ45 Ethernet, and Power

With Wired Digital Communication Network



SIZE / WEIGHT

Length: 16.4" (416mm)

Width: 11.2" (284mm)

Vertical Height: 25.4" (645mm)

Weight: 56.0 lbs. (25.4kg)



ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz

470W Max Power Consumption

14°F to 113°F (-10°C to 45°C)

BTU/hr (+/- 10%) 1602.7
