Elation Lighting

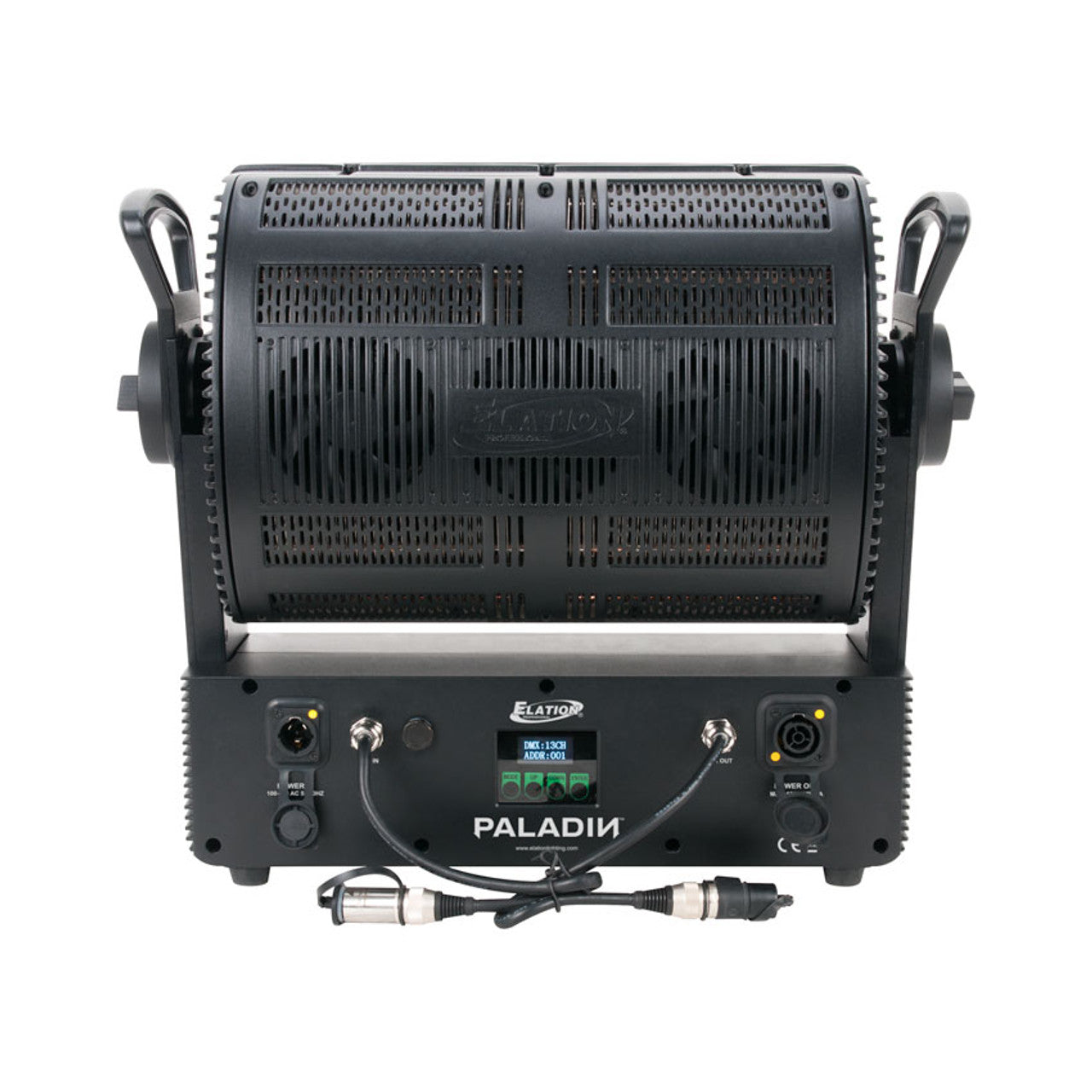

24 x 40W RGBW IP65 Paladin Hybrid Strobe / Wash / Blinder w/ Zoom

24 x 40W RGBW IP65 Paladin Hybrid Strobe / Wash / Blinder w/ Zoom

Regular price $2,250.00 USD
Regular price $3,500.00 USD Sale price $2,250.00 USD
Sale Sold out

PALADIN™ is an IP65 rated strobe wash blinder luminaire with motorized zoom. Featuring (24) high power 40W 4-in-1 RGBW LEDs, 6° to 32° motorized zoom, manual tilt adjustment, pixel zone control, 64 color presets and 15 unique color macros, electronic strobe, 16-bit dimming and variable dimming curve modes, DMX and RDM (Remote Device Management) protocol support, IP rated 5pin DMX and IP65 Power Cable in/out connections, (4) button LCD control display panel, and a multi-voltage universal auto switching power supply (100-240v). Optional barn doors, egg crate, and dual quick-lock omega bracket rigging accessories available.

SOURCE:

(24) 40W 4-in-1 RGBW LEDs
50,000 Hour Average LED Life
*May vary depending on several factors including but not limited to:Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA:
79,252 LUX 7,362 FC @9.8' (2m) (6º Full On)
6,848 LUX 636 FC @9.8' (2m) (32º Full On)

COLOR:
RGBW

EFFECTS:
Pixel Zone Control
64 Color Presets and 15 Unique Color Macros
Electronic Strobe16-Bit Dimming
Variable and Dimming Curve Modes

CONTROL / CONNECTIONS:
6º To 32º Motorized Zoom
Manual 210º Tilt Movement
Multiple DMX Channel Modes (33 total channels)
Adjustable Refresh Rate and Gamma Brightness
4 Button Control Panel and LCD Menu Display
RDM (Remote Device Management)
IP Rated 5Pin DMX in / Out
IP65 Power Cable In
With Wired Digital Communication Network

SIZE / WEIGHT:
Length: 16.4" (478mm)
Width: 11.2" (233mm)
Vertical Height: 16.0" (407.5mm)
Weight: 46.0" (20.9 kg)

ELECTRICAL / THERMAL:
AC 100-240V - 50/60Hz
990W Max Power Consumption
5ºF to 113ºF (-15ºC to 45ºC)

APPROVAL / RATINGS:
CE | cETLus | IP65

FIRMWARE UPDATES:
Current Version: V1.20
