Elation Lighting

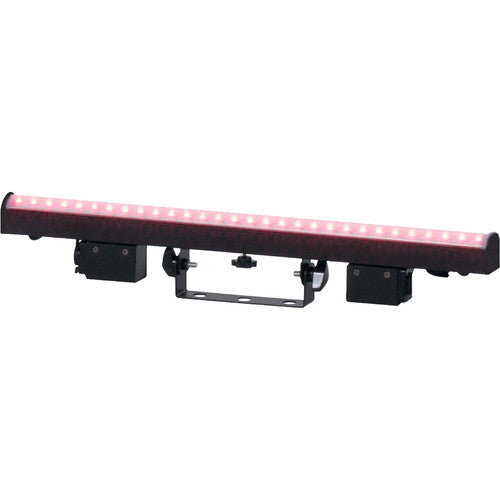

0.5M LED PIXEL BAR IP 65 16.7MM PITCH 30 SMD RGB LEDS

0.5M LED PIXEL BAR IP 65 16.7MM PITCH 30 SMD RGB LEDS

Regular price $168.00 USD
Regular price $210.00 USD Sale price $168.00 USD
Sale Sold out

The PIXEL BAR 30IP is an outdoor IP65 rated LED pixel bar featuring (30) tri-color RGB SMD LEDs with a 16mm pixel pitch, a refresh rate of 44,000Hz for flicker free operation for broadcast TV and FILM applications, and measures 0.5 meter (1.6 feet) in length. Each pixel bar is housed in a lightweight IP65 rated aluminum housing featuring magnetic end caps which allow seamless end-to-end pixel spacing, an integrated adjustable mounting bracket, a safety cable loop, and includes square and rounded frosted lens attachments.


Easy and versatile control options are handled by the Pixel Driver 4000 and Pixel Driver 1000IP (sold separately) which provides simple on-board manual dimming and strobe control, and full pixel mapping control of 4,080 max pixels via Kling-Net and 680 max pixels via Art-Net and sACN (streaming ACN) protocols. Power and data are supplied via proprietary IP rated 4pin combo cables (sold separately) which are available in lengths from 2 to 50 meters.

Features

  • Outdoor IP65 Rated
  • (30) RGB SMD LEDs | 0.5 meter / 1.6 feet
  • 16mm Pixel Pitch | 44,000Hz PWM
  • Flicker Free Operation for Broadcast TV and FILM
  • Magnetic End Caps - Seamless End-to-End Spacing
  • Integrated Adjustable Mounting Bracket
  • Square and Rounded Frosted Lens Included
  • 2ft (0.6m) Power/Data Jumper Cable included
  • Proprietary IP Rated Power/Data Combo Cables*
  • *Available in 2/3/5/10/12/15/20/25/30/50 Meter Lengths
  • Pixel Driver 4000™ Controller (sold separately)
  • Pixel Driver 1000IP™ Controller (sold separately)
  • Manual Dimming and Strobe Control
  • Full Pixel Mapping Control
  • 4,080 Max Pixels via Kling-Net
  • 680 Max Pixels via Art-Net and sACN (streaming ACN)

Specifications

SOURCE

  • 0.2 SMD RGB 3-in-1 LEDs
  • Color Resolution: 8 bits per color (24 bits per pixel)
  • Viewing Angle: 120 x 120 degrees
  • Pixels Per Meter: 60 pixels
  • Pixel Pitch (pixel center-to-center) 16mm
  • PWM (Pulse Width Modulation): 44,000Hz



CONNECTIONS

  • 4pin Power/Data In/Out



SIZE / WEIGHT

  • Length: 19.2” (488mm)
  • Width: 1.3” (34mm)
  • Height: 3.3” (83mm)
  • Weight: 1.5 lbs. (0.7kg)



ELECTRICAL

  • Max Power Consumption: 6W
